Deskripsyon
GYTS-50~60Xn Optic Cable is Stranded Loose Tube Light-armored Cable
GYTS-50~60Xn Optic Cable Product Overview
The structure of the GYTS fiber optic cable is that a 250μm optical fiber is sleeved into a loose tube made of high-modulus material, and the loose tube is filled with a waterproof compound. At the center of the core is a metal reinforcing core, which for certain core counts requires a layer of polyethylene (PE) to be extruded. The loose tube (ak filler kòd) are twisted around the central reinforcing core to form a compact and rounded core, and the gaps within the core are filled with water-blocking filling. Double-sided plastic-coated steel tape (PSP) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.

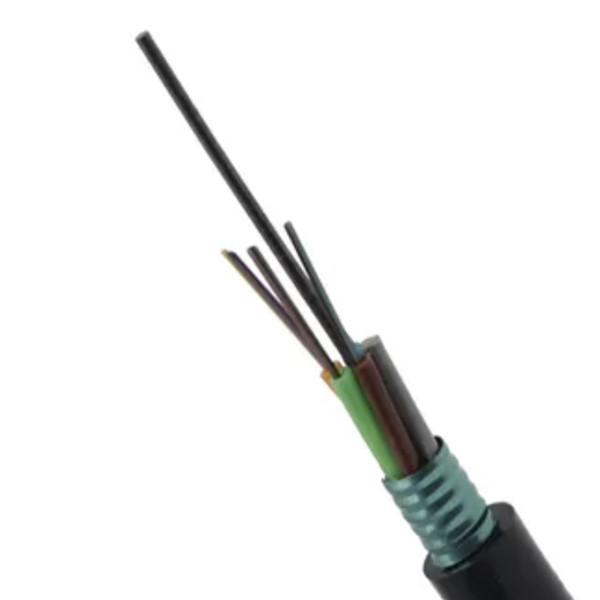

GYTS-50~60Xn Optic Cable Product Pictures
GYTS-50~60Xn Optic Cable Product Specifications
| Modèl fib optik kab (an ogmantasyon 2-fib) | Kantite fib | Kantite boîtier | Kantite kòd ranpli | Pwa kab referans (kg/km) |
Fòs rupture pèmèt Alontèm / kout tèm (N) |
Fòs squashing admisib Alontèm / kout tèm (N/100mm) |
Bend reyon Estatik/Dinamik (mm) |
|
| GYTS-2 ~ 6Xn | 2~6 | 1 | 4 | 96 | 600/1500 | 300/1000 | 10D/20D | |
| GYTS-8 ~ 12Xn | 8~12 | 2 | 3 | 96 | ||||
| GYTS-14 ~ 18Xn | 14~18 | 3 | 2 | 96 | ||||
| GYTS-20 ~ 24Xn | 20~24 | 4 | 1 | 96 | ||||
| GYTS-26 ~ 30Xn | 26~30 | 5 | 0 | 96 | ||||
| GYTS-32 ~ 36Xn | 32~36 | 6 | 0 | 105 | ||||
| GYTS-38 ~ 48Xn | 38~48 | 4 | 1 | 111 | ||||
| GYTS-50 ~ 60Xn | 50~60 | 5 | 0 | 111 | ||||
| GYTS-62 ~ 72Xn | 62~72 | 6 | 0 | 138 | ||||
| GYTS-74 ~ 84Xn | 74~84 | 7 | 1 | 168 | ||||
| GYTS-86 ~ 96Xn | 86~96 | 8 | 0 | 168 | ||||
| GYTS-98 ~ 108Xn | 98~108 | 9 | 1 | 195 | ||||
| GYTS-110 ~ 120Xn | 110~120 | 10 | 0 | 195 | ||||
| GYTS-122 ~ 132Xn | 122~132 | 11 | 1 | 228 | ||||
| GYTS-134 ~ 144Xn | 134~144 | 12 | 0 | 228 | ||||
| GYTS-146 ~ 216Xn | 146~216 | 13~18 | 5~0 | 228 | ||||
| GYTS-288Xn | 288 | 24 | 0 | 283 | ||||
| Kalite fib | atténuation （+20℃） | Pleasant | Ouverture nimerik | Fibre optik kab koupe longèdonn | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200± 0.015 NA | — |
| 62.5/125µm | ≤3.3dB/km | ≤1.0dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275± 0.015 NA | — |
GYTS-50~60Xn Optic Cable Product Features
- Sheathing Materials
Various sheathing materials used in GYTS cables are discussed, emphasizing their role in providing protection against environmental factors, such as moisture, UV radiation, and temperature fluctuations.
- Water-blocking Mechanisms
Given that water ingress is a significant concern for fiber optic cables, the water-blocking mechanisms utilized in GYTS cables are explained, ensuring the cables’ robustness and longevity.
- High Bandwidth and Data Rates
The article highlights the exceptional bandwidth capacity of GYTS fiber optic cables, enabling the transmission of large amounts of data at high speeds, which is crucial for bandwidth-intensive applications.
- Long Transmission Distances
The low attenuation characteristics of optical fibers allow GYTS cables to support long-distance data transmission without significant signal degradation, making them suitable for long-haul applications.
- Immunity to Electromagnetic Interference
The immunity of fiber optic cables to electromagnetic interference is a key advantage, ensuring secure and reliable data transmission in environments with high electrical noise.
GYTS-50~60Xn Optic Cable Product Applications
- Aplikasyon: tiyo, overhead, direct burial
- Long-distance communication and Local communication
- Especially suitable for occasions with high requirements for moisture-proof and rodent-proof

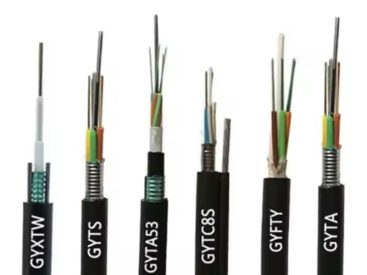

GYTS-50~60Xn Optic Cable Product and More Optic Cables
- Kab blende limyè（GYXTW）
- Andedan kay la / deyò unitube ki pa metalik mikwo kab (AVYON)
- Unitube ki pa blende kab (GYXY)
- Unitube ki pa metalik ki pa blende kab（GYFXY）
- DE FRP ayeryen fib optik kab (LAVI M)
- Tib ki lach bloke kab ki pa blende（GYTA）
- Tib ki lach ki bloke limyè-blende kab (GYTS)
- Kab blende ki bloke tib ki lach（GYTY53）
- Kab blende ki bloke tib ki lach（GYTA53）
- Manm fòs ki pa metalik ki pa blende (GYFTY)
- Ki pa metalik fòs manm ki pa blende kab(ANSANM)
- Kab blende manm fòs ki pa metalik（GYFTY53）
- Kab blende manm fòs ki pa metalik（GYFTA53）
- Figi 8 Kab (GYXTC8S)
- Figi 8 Kab ( GYFTC8S)
- Figi 8 Kab (GYTC8A)
- Figi 8 Kab (GYTC8S)
- Tout Dielectric Self-sipòte Kab Ayeryen (ADSS)
GYTS-50~60Xn Optic Cable Product Structure
