Deskripsyon
GYFTY53-8~12Xn Optic Cable is Non-metallic Strength Member armored Cable
GYFTY53-8~12Xn Optic Cable Product Overview
The GYFTY53 type outdoor direct buried optical cable is a non-metallic optical cable designed for outdoor environments. Its construction consists of non-metallic reinforcements, loose jacket stranded filled cores, polyethylene sheaths, and coated rebar tape armoured with polyethylene outer sheaths. The fiber optic cable is made of single-mode or multi-mode fiber, which is colored and sleeved into a waterproof compound sleeve made of high-modulus PBT. The core of the cable is centered on FRP non-metallic reinforcing core, and the large-core fiber optic cable will also be covered with a layer of polyethylene sheath. The loose tube is tightly twisted with the filler rope to form a circular core and filled with a water-blocking compound. An plis, the optical cable is covered with a polyethylene inner sheath, and then double-sided plastic-coated rebar tape longitudinal wrap and polyethylene outer sheath are added to ensure the sturdiness and durability of the optical cable. Its main features include: precise fiber residual length control, which gives the cable excellent tensile and temperature adaptability; PBT loose tube material is hydrolysis resistant, and the fiber is protected by special fiber paste; The optical cable has excellent compressive performance, and the outer sheath is smooth to reduce installation friction; and the good radiation resistance provided by the PE sheath.

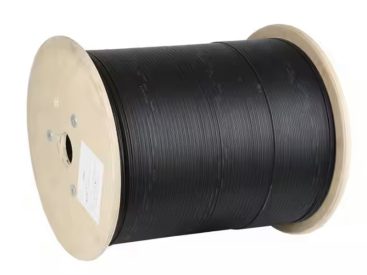

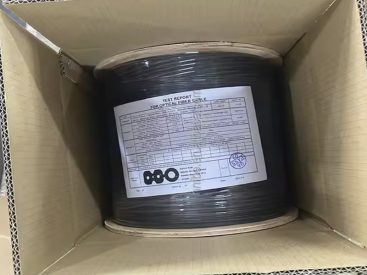

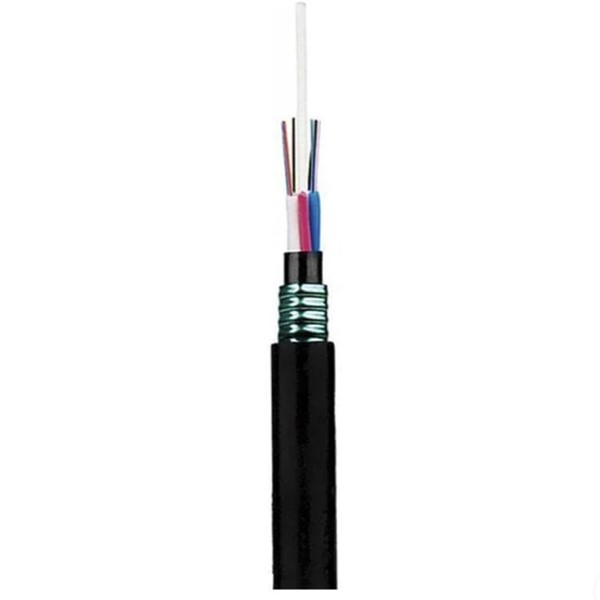

GYFTY53-8~12Xn Optic Cable Product Pictures
GYFTY53-8~12Xn Optic Cable Product Specifications
| Fiber optic cable model an ogmantasyon 2-fib) |
Kantite fib | Kantite boîtier | Kantite kòd ranpli | Pwa kab referans (kg/km) | Fòs rupture pèmèt Alontèm / kout tèm (N) |
Fòs squashing admisib Alontèm / kout tèm (N/100mm) |
Bend reyon Estatik/Dinamik (mm) |
| GYFTY53-2~6Xn | 2~6 | 1 | 7 | 201 | 1000/3000 | 1000/3000 | 12.5D/25D |
| GYFTY53-8~12Xn | 8~12 | 2 | 6 | 201 | |||
| GYFTY53-14~18Xn | 14~18 | 3 | 5 | 201 | |||
| GYFTY53-20~24Xn | 20~24 | 4 | 4 | 201 | |||
| GYFTY53-26~30Xn | 26~30 | 5 | 3 | 201 | |||
| GYFTY53-32~36Xn | 32~36 | 6 | 2 | 201 | |||
| GYFTY53-38~42Xn | 38~42 | 7 | 1 | 201 | |||
| GYFTY53-44~48Xn | 44~48 | 8 | 0 | 201 | |||
| GYFTY53-50~60Xn | 50~60 | 5 | 3 | 213 | |||
| GYFTY53-62~72Xn | 62~72 | 6 | 2 | 213 | |||
| GYFTY53-74~84Xn | 74~84 | 7 | 1 | 213 | |||
| GYFTY53-86~96Xn | 86~96 | 8 | 0 | 213 | |||
| GYFTY53-98~108Xn | 98~108 | 9 | 1 | 244 | |||
| GYFTY53-110~120Xn | 110~120 | 10 | 0 | 244 | |||
| GYFTY53-122~132Xn | 122~132 | 11 | 1 | 288 | |||
| GYFTY53-134~144Xn | 134~144 | 12 | 0 | 288 |
| Kalite fib | atténuation | Pleasant | Ouverture nimerik | Fibre optik kab koupe longèdonn | ||||
| （+20℃） | ||||||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200± 0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275± 0.015 NA | — |
GYFTY53-8~12Xn Optic Cable Product Features
- Trè bon pwopriyete mekanik ak tanperati
- Materyèl tib ki lach tèt li gen bon rezistans idroliz ak gwo fòs
- Tib la plen ak yon keratin espesyal pou pwoteje fib optik la
- Bon rezistans konpresyon ak tendres
- Yo pran mezi sa yo pou asire pèfòmans ki enpèmeyab nan kab la:
- Single sant ki pa metalik ranfòse nwayo
- Tib ki lach la plen ak yon konpoze espesyal WATERPROOFING
- Plen nwayo ranpli
- Double-sided plastic-coated steel tape (PSP) improves the moisture permeability of fiber optic cables
- Good water-blocking material prevents longitudinal water seepage of the fiber optic cable
GYFTY53-8~12Xn Optic Cable Product Applications
- Frequent lightning area and anti-electric field : The subway, tinèl
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment
