Deskripsyon
Cisco MDS 9148S Fabric Switch is the next generation of highly reliable, flexible and low-cost Cisco MDS 9100 Seri switch. It combines exceptional flexibility with cost-effective high performance. This powerful, compact rack unit (1RU) switch scales from 12 pou 48 line rate 16 Gbps Fibre Channel ports.
Cisco MDS 9148S Fabric Switch Overview
● Independent SAN for small departmental storage environments
● Top-level rack with chips in medium redundant architecture
● Edge switches in the enterprise data center core – edge topology
The Cisco MDS 9148S is powered by Cisco NX-OS and Cisco PrimeTM Data Center Network Manager (DCNM) software. It provides advanced storage networking features and functionality to simplify management and compatibility with reliable end-to-end connectivity across the entire Cisco MDS 9000 Family portfolio.

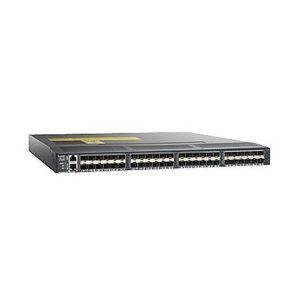

Cisco MDS 9148S Fabric Switch Product Picture
Cisco MDS 9148S Fabric Switch and related models datasheet
| 9148S | 9132T | 9250i | 9148T | 9396S | 9396T |
| Pò (estanda)12 x | Pò (estanda)8 x 4/8/16/32-Gbps | Pò (estanda)20 x 2/4/8/16-Gbps FC | Pò (estanda)24 x 4/8/16/32-Gbps FC | Pò (estanda)48 x 2/4/8/16-Gbps FC | Pò (estanda)48 x 4/8/16/32-Gbps |
| 2/4/8/16-Gbps FC | 8 x 10-Gbps FCoE | ||||
| 2 x 1/10 GE | |||||
| Pò (expansion)License upgrade in 12-port increments up to 48 pò | Pò (expansion)16-Port 32-Gbps expansion module to expand to 24 Pò. 8-Port license upgrade to 16 ports in base switch and up to 32 ports with expansion module | Pò (expansion)License upgrade to 40 x 16-Gbps FC | Pò (expansion)License upgrade in 8-port increments up to 48 pò | Pò (expansion)License upgrade in 12-port increments up to 96 pò | Pò (expansion)license upgrade in 16-port increments up to 96 pò |
| Form factorFixed | Form factorSemi-modular | Form factorFixed | Form factorFixed | Form factorFixed | Form factorSemi-modular |
| Expansion slots- | Expansion slots1 | Expansion slots- | Expansion slots- | Expansion slots- | Expansion slots3 |
| Supported interface modules- | Supported interface modulesCisco MDS M9XT-FC1632 16-Port 32-Gbps Fibre Channel Port Expansion Module | Supported interface modules- | Supported interface modules- | Supported interface modules- | Supported interface modulesCisco MDS M9XT-FC1632 16-Port 32-Gbps Fibre Channel Port Expansion Module |
| Smart storage services- | Smart storage services- | Smart storage servicesFCIP, Cisco MDS 9000 I/O Accelerator | Smart storage services- | Smart storage services- | Smart storage services- |
| with a software license, Cisco Data Mobility Manager with a software license | |||||
| Advanced traffic management: VSAN, IVR, jiska 16 links for port channelsYes | Advanced traffic management: VSAN, IVR, jiska 16 links for port channelsyes | Advanced traffic management: VSAN, IVR, jiska 16 links for port channelsYes | Advanced traffic management: VSAN, IVR, jiska 16 links for port channelsYes | Advanced traffic management: VSAN, IVR, jiska 16 links for port channelsYes | Advanced traffic management: VSAN, IVR, jiska 16 links for port channelsyes |
| Fibre Channel over Ethernet (FCoE)Non | Fibre Channel over Ethernet (FCoE)Non | Fibre Channel over Ethernet (FCoE)Wi | Fibre Channel over Ethernet (FCoE)Non | Fibre Channel over Ethernet (FCoE)Non | Fibre Channel over Ethernet (FCoE)Non |
| iSCSINo | iSCSINo | iSCSIYes | iSCSINo | iSCSINo | iSCSINo |
| FICON supportNo | FICON supportNo | FICON supportYes | FICON supportNo | FICON supportNo | FICON supportNo |
| Air flowBack to front | Air flowBi-directional airflow | Air flowFront to back | Air flowBi-directional airflow | Air flowBi-directional airflow | Air flowBi-directional airflow |
| Physical dimensions | Physical dimensions | Physical dimensions | Physical dimensions | Physical dimensions | Physical dimensions |
| (H x W x P)1.72 x 17.16 x 16.34 nan. (4.37 x 43.59 x 41.50 cm) | (H x W x P)1.72 x 17.3 x 20.11 nan. (4.37 x 43.94 x 51.08 cm) | (H x W x P)3.84 x 17.22 x 21.40 nan. (9.75 x 43.74 x 54.36 cm) | (H x W x P)1.72 x 17.3 x 22.3 nan ( 4.37 x 43.94 x 56.64 cm) | (H x W x P)3.4 x 17.42 x 22.28 nan. (8.64 x 44.25 x 56.59 cm) | (H x W x P)3.4 x 17.42 x 22.28 nan. (8.64 x 44.25 x 56.59 cm) |
| Physical dimensions | Physical dimensions | Physical dimensions | Physical dimensions | Physical dimensions | Physical dimensions |
| (RU)1 | (RU)1 | (RU)2 | (RU)1 | (RU)2 | (RU)2 |
| Pwa (fully configured)19.84 lb. (9.0 KG) | Pwa (fully configured)21.64 lb. (9.82 KG) | Pwa (fully configured)22.4 lb. (10.16 KG) | Pwa (fully configured)18.73 lb. (8.3 KG) | Pwa (fully configured)39.24 lb (17.8 KG) | Pwa (fully configured)41.62 lb. (18.88 KG) |
Cisco MDS 9148S Fabric Switch Benefits
1, Deploy a high availability platform for mission-critical
The Cisco MDS 9148S is available in Service Software Upgrade (ISSU) in environments where downtime is unacceptable. This means that although Fibre Channel ports are communicating, Cisco NX-OS software can be upgraded. The Cisco MDS 9148S includes Inter-Switch Link (ISL) resiliency, and the F-port runs from the Cisco MDS 9148S in NPV mode with an elastic dual redundant hot-swappable power supply and fan, port channel. Provides enhanced performance and monitoring capabilities based on new hardware slow port detection and recovery.
2, Simplified storage management with advanced diagnostics
The Cisco MDS 9148S provides built-in storage network management and SAN plug-in and playback capabilities. All features are available through the Command Line Interface (CLI) or Cisco Prime DCNM for SAN Essentials, a centralized management tool. The Cisco DCNM task-based wizard simplifies single or multiple switches and array management. For a virtualized infrastructure, the entire path it manages: switching from virtual machines to physical storage. The Cisco MDS 9148S also supports Power On-Time Auto Configuration (POAP) to newly deployed switch automation software image upgrades and configuration file installations. An plis, it provides intelligent diagnostics, protocol decoding, network analysis tools, and Cisco Call Home to improve reliability, resolve problems faster, and reduce service costs.
3, Intelligent network services and advanced traffic management
The Cisco MDS 9148S uses Virtual SAN (VSAN) technology in a separate environment for hardware in the physical fabric. It provides access control lists (ACL yo) for hardware-based intelligent frame processing. Advanced traffic management features such as Quality of Service (QoS) fabricwide quality and Inter-VSAN Routing (IVR) are included in the optional Cisco MDS 9000 Series Enterprise Package. The QoS priority of the application’s data traffic is better and more predictable for network services. Area-based QoS simplifies configuration and management using familiar partitioning concepts. IVR facilitates resource sharing in VSAN without compromising scalability, reliability, availability, and network security.
