ZXHN F688V V8.0 FTTH

Opis

ZXHN F688V V8.0 FTTH is a dual-band GPON home gateway with 4GE ports, 1 POTS ports, jedan USB 2.0 luka, jedan CATV priključak

ZXHN F688V V8.0 FTTH Product Overview

ZXHN F688V V8.0 FTTH is an ONT designed for FTTH application scenarios. With using the ZXHN F688 V8.0, the home users can access data, video i glasovne usluge, i uživajte u brzom pristupu internetu. It is an ITU-T G.984 and ITU-T G.988 compliant optical network terminal (NA T) koji je dizajniran za vrhunske kućne korisnike. Dobro je prilagođen za vlakna u kući (FTTH) scenarije i podržava montažu na radnu površinu. Na strani mreže, the device supports 2.488 Gbps silazna veza i 1.244 Gbps uzlazna veza. Na strani korisnika, nudi četiri GE priključka, jedan POTS priključak, jedan USB 2.0 luka, jedan CATV priključak,and 2×2 802.11n@2.4GHz & 4×4 802.11ac@5GHz concurrent.

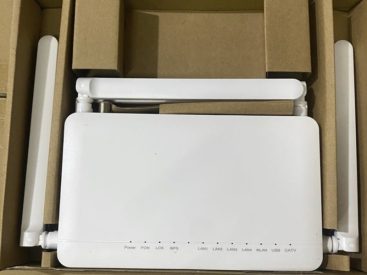

ZXHN F688V V8.0 FTTH Product Pictures

ZXHN F688V V8.0 FTTH Product Specifications

Model	Parametar
Model	ZXHN F688V V8.0
WAN	GPON
LAN	4xGE,1xFXS,1USB; 2×2 802.11b/g/n Wi-Fi @2.4GHz; 4×4 802.11a/n/ac Wi-Fi @5GHz
Gumbi	Resetiraj, Uključi/Isključi, WPS, Wi-Fi
LED diode	Vlast, PON, LOS, Internet, LAN1-4, Telefon, 2.4G, 5G, WPS, USB
Napajanje	12V DC, 1.5A
Dimenzije	220 mm*35 mm*160 mm (Š*D*V)
Neto težina	450g
Radna temperatura	0°C – 40°C
Vlažnost	5% – 95%
Certifikacija	CE; Wi-Fi; RoHS

ZXHN F688V V8.0 FTTH Product Features

• Provide four GE ports for HSI or HD VoD services.
• Provide one FXS ports for traditional telephone services.
• Provide one USB 2.0 port for file storage and sharing, print sharing and user configuration file fast recovery.
• Support 802.11b/g/n@2.4GHz & 802.11a/n/ac@5GHz dual-band concurrent Wi-Fi with up to gigabit speeds and excellent indoor coverage.
• User can connect PCs, IPTV STBs, neki, tablet PC, smartphones, phones, faxes, and other terminals to the ZXHN F688 to enjoy all kinds of Internet services.
• enhances the value of operators’ networks.
• The highly reliable heat dissipation design guarantees stable operation.
• The dual image ensures uninterrupted services during software downloads or upgrades, čime se povećava pouzdanost softvera.

ZXHN F688V V8.0 FTTH and More Models

EPON ONT

F401 EPON ONT, 1 LAN Engleski Firmware

F411 EPON ONT, 1 L AN+ 1*VOICE engleski Firmware SIP

F412 EPON ONT, 2 LAN+VOICE engleski Firmware SIPF

F420 EPON ONT, 4 LAN+ 2VOICE engleski Firmware SIP

F460 EPON ONT, 4 L AN+ 2VOICE+WIFI engleski Firmware SIP

F427 EPON ONT, 4 L AN+ 2VOICE +WlFI engleski Firmware SIPZTE GPON ONT

GPON ONT

F601 GPON ONT, 1 LAN Engleski Firmware

F612 GPON ONT, 2 L AN+VOICE engleski Firmware SIP

F600 GPON ONT, 4 L AN engleski firmware

F620 GPON ONT, 4 L AN+2VOICE engleski Firmware SIP

F620G GPON ONT, 4 GE+2VOICE engleski firmware SIP

F660 GPON ONT, 4 L AN+ 2VOICE+WlFI+USB engleski Firmware SIP

F660 V8.0 GPON ONT, 4 GE+2VOlCE+WlFI+USB engleski Firmware SIP

F660 V6.0 GPON ONT, 1 GE+3FE+2VOlCE+WlFI+USB engleski Firmware SIP

F625 GPON ONT, 4 LAN+2GLAS+RF(neki) Engleski firmware SIP

F668 GPON ONT, 4 L AN+2GLAS+RF(neki) +WlFI engleski firmware SIP

ZXHN F688 4 GE+2VOlCE+CATV+WlFI Dual band+USB engleski Firmware SIP

ZXHN F688V V8.0 FTTH Product Applications
