Opis
SIMCom SIM8202G-M2 5G Module is a Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module supporting R15 5G NSA/SA up to 2.4Gbps data transfer.
SIMCom SIM8202G-M2 5G Module Product Overview
SIMCom SIM8202G-M2 5G Modulehas strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer’s applications. SIMCom SIM8202X-M2 uses M.2 form factor, TYPE 3042-S3-B. AT commands of SIM8202X-M2 are compatible with SIM7912G/SIM8200X-M2 series modules. This way it also minimizes the investments of customers and enables a short time-to-market.
Dizajniran je za aplikacije koje zahtijevaju podatkovnu komunikaciju visoke propusnosti u različitim uvjetima širenja radija. Zahvaljujući jedinstvenoj kombinaciji performansi, sigurnost i fleksibilnost, ovaj modul je idealan za mnoge primjene.

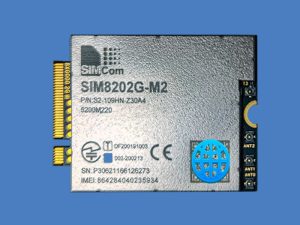

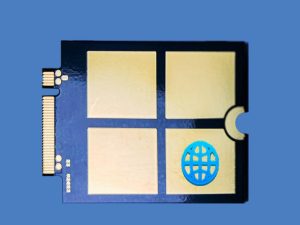

SIMCom SIM8202G-M2 5G Module Product Picture
SIMCom SIM8202G-M2 5G Module Product Specifications
| Proizvod | SIM8202G-M2 | |
| Form Factor | M.2 | |
| Dimenzije(mm) | 42.0*30.0*2.3 | |
| Frekvencijski pojasevi | Sub-6G | Sub-6G n1,n2,n3,n5,n7,n8,n12,n20,n28,n38,n40,n41,n48,n66,n71,n77,n78,n79 |
| Sub-6G(NSA) n41/n77/n78/n79 | ||
| LTE-FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 | |
| LTE-TDD | B34/B38/B39/B40/B41/B42/B43/B48 | |
| LAA | ● | |
| WCDMA | B1/B2/B3/B4/B5/B8 | |
| GNSS | ● | |
| Temperatura | -30℃ ~ +70 ℃ | |
| Napon napajanja(V) | 3.135 ~ 4.4 | |
| Sub-6G | 2.4Gbps(DL)/500Mbps(UL) | |
| LTE | 1Gbps(DL)/200Mbps(UL) | |
| HSPA+ | 42Mbps (DL)/5.76Mbps(UL) | |
| Protokol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 | |
| Android RIL | Android 6/7/8/9 | |
| USB upravljački program | Microsoft Windows Win7/Win8/Win10/Linux/Android | |
| MBIM | Win8/Win10 | |
| NDIS | Linux/Win7/Win8/Win10 | |
| Nadogradnja firmvera | USB | |
| SIM kartica | 1.8V/2,95 V | |
| Regulatorni | CCC/JATE/TELEC/CE RED/SRRC*/CTA*/RoHS*/REACH*/CE* | |
| USB | ● | |
| PCIe | ||
| PCM | ● | |
| 2C | ● | |
| UART | ||
| TLS | ● | |
| Sustav datoteka | ● | |
| NOGA | ● | |
SIMCom SIM8202G-M2 5G Module and More Related 5G Modules
SIMCom SIM8202G-M2 5G Module Applications
