Opis
Patch Cord SS-OP-D-LC-S-10 is Fiber Patch Cable with LC/PC,LC/PC,Jednomodni,10m,G.652D,2mm
Patch Cord SS-OP-D-LC-S-10 Product Overview
Optical fibers are used for carrying signals on Gigabit networks or networks with higher packet rates. An optical fiber is a carrier of optical signals and transmits optical signals over a short distance.
Optical fibers are classified into single-mode and multi-mode optical fibers. Single-mode optical fibers are used for long-distance transmission whereas multi-mode optical fibers are used for short-distance transmission. Indoor single-mode optical fibers usually have a yellow jacket. The jacket of the LC/PC-LC/PC multi-mode optical fiber is orange, and that of the MPO/PC-MPO/PC multi-mode optical fiber is cyan.

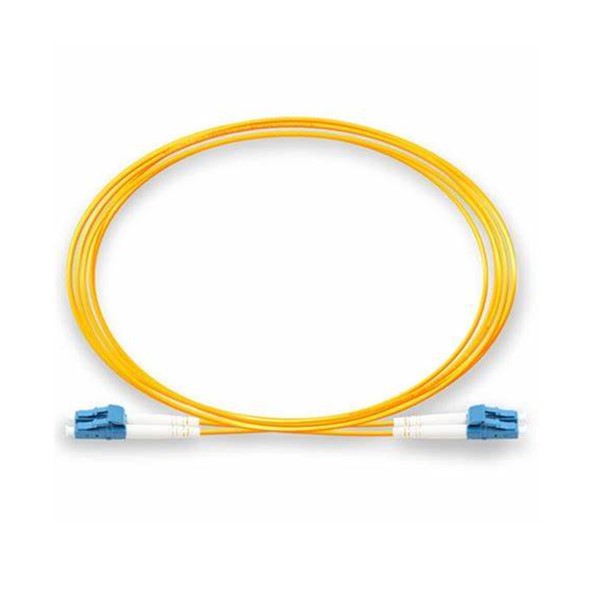

Patch Cord SS-OP-D-LC-S-10 Product Pictures
Patch Cord SS-OP-D-LC-S-10 Product Specifications
| onnector Type | LC UPC to LC UPC |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Način rada s vlaknima | OS2 9/125μm |
| Valna duljina | 1310/1550nm |
| Insercijski gubitak | ≤0.3dB |
| Povratni gubitak | ≥50dB |
| Min. Radijus savijanja | (Fiber Core) |
| 10mm | Min. Radijus savijanja |
| (Svjetlovodni kabel) | 10/5D (Dynamic/Static) |
| Attenuation at 1310 nm | 0.36dB/km |
| Attenuation at 1550 nm | 0.22dB/km |
| Fiber Count | Simplex |
| Cable Outside Diameter (OD) | 2.0mm |
| Cable Jacket | Riser (OFNR) |
| Polarity | A (Tx) to B (Rx) |
| Radna temperatura | -20 do 70°C (-4 to 158℉) |
| Temperatura skladištenja | -40 to 80°C (-40 to 176℉) |
Common optical fiber types
| Tip | Transmission Mode | Priključak | |
| On the USG6000E | On the peer device | ||
| LC/PC-LC/PC | Single-mode/Multi-mode | LC/PC | LC/PC |
| LC/PC-SC/PC | SC/PC | ||
| LC/PC-FC/PC | FC/PC | ||
| MPO/PC-MPO/PC | Multi-mode | MPO/PC | MPO/PC |
Patch Cord SS-OP-D-LC-S-10 and More Fiber Cables
| Opis | Broj dijela | Model | Connector X1 | Connector X2 | Duljina kabela | Bend radius |
| Patch kabel,SC/PC,SC/PC,Jednomodni,5m,G.652D,3mm | 14130098 | SS-OP-D-SC-S-5 | SC/PC | SC/PC | 5 m | 30 mm |
| Patch kabel,LC/PC,SC/PC,Jednomodni,5m,G.652D,2mm | 14130193 | SS-OP-LC-SC-S-5 | LC/PC | SC/PC | 5 m | 30 mm |
| Patch kabel,LC/PC-LC/PC,Singlemode,G.652D,2mm,5m | 14130195 | SS-OP-D-LC-S-5 | LC/PC | LC/PC | 5 m | 30 mm |
| Patch kabel,LC/PC,SC/PC,Jednomodni,10m,G.652D,2mm | 14130196 | SS-OP-LC-SC-S-10 | LC/PC | SC/PC | 10 m | 30 mm |
| Patch kabel,LC/PC,FC/PC,Jednomodni,10m,G.652D,2mm | 14130197 | SS-OP-LC-FC-S-10 | LC/PC | FC/PC | 10 m | 30 mm |
| Patch kabel,LC/PC,LC/PC,Jednomodni,10m,G.652D,2mm | 14130199 | SS-OP-D-LC-S-10 | LC/PC | LC/PC | 10 m | 30 mm |
| Patch kabel,LC/PC,FC/PC,Multi-mode,10m,A1b,2mm | 14130221 | SS-OP-LC-FC-M-10 | LC/PC | FC/PC | 10 m | 30 mm |
| Patch kabel,LC/PC,LC/PC,Multi-mode,10m,A1B,2mm | 14130222 | SS-OP-D-LC-M-10 | LC/PC | LC/PC | 10 m | 30 mm |
| Patch kabel,LC/PC,SC/PC,Multi-mode,10m,A1b,2mm | 14130223 | SS-OP-LC-SC-M-10 | LC/PC | SC/PC | 10 m | 30 mm |
| Optical adapter-LC/PC-LC/PC-Blue-Shell:Plastic-Sleeve:Zirconia-Square | 14130248 | QW1P0FIBER06 | LC/PC | LC/PC | – | – |
| Patch kabel,LC/PC,LC/PC,Jednomodni,20m,G.652D,2mm | 14130251 | SS-OP-D-LC-S-20 | LC/PC | LC/PC | 20 m | 30 mm |
| Patch kabel,LC/PC,SC/PC,Multi-mode,30m,A1b,2mm | 14130275 | SS-OP-LC-SC-M-30 | LC/PC | SC/PC | 30 m | 30 mm |
| Patch kabel,LC/PC,SC/PC,Jednomodni,30m,G.652D,2mm | 14130276 | SS-OP-LC-SC-S-30 | LC/PC | SC/PC | 30 m | 30 mm |
| Patch kabel,LC/PC,SC/PC,Multi-mode,20m,A1b,2mm | 14130279 | SS-OP-LC-SC-M-20 | LC/PC | SC/PC | 20 m | 30 mm |
| Patch kabel,LC/PC,SC/PC,Jednomodni,20m,G.652D,2mm | 14130280 | SS-OP-LC-SC-S-20 | LC/PC | SC/PC | 20 m | 30 mm |
| Patch kabel,LC/PC,LC/PC,Multi-mode,20m,A1b,2mm | 14130295 | SS-OP-D-LC-M-20 | LC/PC | LC/PC | 20 m | 30 mm |
| Patch kabel,LC/PC,LC/PC,Multi-mode,5m,A1b,2mm | 14130296 | SS-OP-D-LC-M-5 | LC/PC | LC/PC | 5 m | 30 mm |
| Patch kabel,LC/PC,SC/PC,Multi-mode,50m,A1b,2mm | 14130311 | SS-OP-LC-SC-M-50 | LC/PC | SC/PC | 50 m | 30 mm |
| Patch kabel,LC/PC,SC/PC,Jednomodni,50m,G.652D,2mm | 14130312 | SS-OP-LC-SC-S-50 | LC/PC | SC/PC | 50 m | 30 mm |
| Patch kabel,LC/PC,LC/PC,Jednomodni,6m,G.652D,2mm | 14130360 | SS-OP-D-LC-S-6 | LC/PC | LC/PC | 6 m | 30 mm |
| Optical Cable Parts,MPO/PC,MPO/PC,MULTI-MODE,2m,8 CORES,0m/0m,GJFH-8A1A.2(OM3),3.5MM,LSZH,43MM SHORT MPO,BENDING INSENSITIVE | 14130823 | F00MPMP01 | MPO/PC | MPO/PC | 2 m | 18 mm |
| Optical Cable Parts,MPO/PC,MPO/PC,Višemodni(OM3,Bending Insensitive),30m,8 Jezgre,0m/0m,GJFH 8A1a,3.5mm,LSZH,42mm Short MPO,Zatvoreni | 14130823-002 | FMMM03001 | MPO/PC | MPO/PC | 30 m | 17.5 mm |
| Optical Cable Parts,MPO/PC,MPO/PC,Višemodni(OM3,Bending Insensitive),100m,8 Jezgre,0m/0m,GJFH 8A1a,3.5mm,LSZH,42mm Short MPO,Zatvoreni | 14130823-003 | FMMM10001 | MPO/PC | MPO/PC | 100 m | 17.5 mm |
| Optical Cable Parts,MPO/PC,MPO/PC,MULTI-MODE,15m,8 CORES,0m/0m,GJFH-8A1A.2(OM3),3.5MM,LSZH,60mm MPO,Bending insensitive | 14130923 | SS-OP-D-MPO12-M-15 | MPO/PC | MPO/PC | 15 m | 18 mm |
| Optical Cable Parts,MPO/PC,MPO/PC,Multi-mode,10m,8 cores,GJFH-8A1a.3(OM4),3.5mm,0mm,LSZH,Bending Insensitive | 14134486 | MPO12-MPO12-M4-10 | MPO/PC | MPO/PC | 10 m | |
| LC/UPC LC/APC SC/UPC SC/APC FC/APC FC/UPC ST/UPC LSH/APC MTR/UPC G.657.A1 G.657.A2 G.652.D BIF G.651 |
||||||
Patch Cord SS-OP-D-LC-S-10 Product Applications
