Opis
Huawei S5735S-S24T4X-A Switch is a standard gigabit access switch with 24 10/100/1000BASE-T Ethernet ports, 4 10G SFP+.
Huawei S5735S-S24T4X-A Switch Product Overview
Huawei S5735S-S24T4X-A Switch is a standard gigabit access switch with 24 10/100/1000BASE-T Ethernet ports, 4 10G SFP+. The product supports 1+1 rezervno napajanje, with a 60W AC power module by default. Packet forwarding rate reaches108/126Mpps and Switching capacity 336Gbps/3.36Tbps. It is based on new-generation high-performance hardware and Huawei’s unified VRP (Versatile Routing Platform) software platform, and features enhanced three-layer, easy operation and maintenance, fleksibilno Ethernet umrežavanje, mature IPv6, itd. what’s more, the intelligent upgrade greatly simplifies the equipment upgrade operation, makes it possible for the customer to upgrade the version independently, and greatly reduces the maintenance cost of the customer. U Dodatku, with the help of the upgrade strategy of the HOUP platform, the upgrade path is standardized, which greatly reduces the risk of upgrade failure. Huawei S5735S-S24T4X-A Switch is therefore widely used in enterprise campus access and aggregation, data center access and other application scenarios.

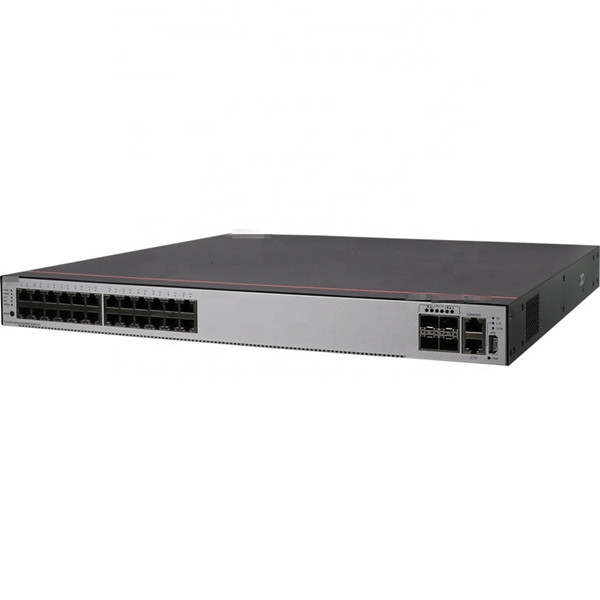

Huawei S5735S-S24T4X-A Switch Product Pictures
Huawei S5735S-S24T4X-A Product Specifications
| Artikal | Opis |
| Marka | Huawei |
| Model | S5735S-S24T4X-A |
| Broj dijela | 98010967 |
| Luka | 24 10/100/1000BASE-T Ethernet ports, 4 10G SFP+. |
| Memorija (radna memorija) | 1 GB |
| Bljesak | 512 MB ukupno. Za pregled dostupne veličine flash memorije, pokrenite naredbu za prikaz verzije. |
| Srednje vrijeme između kvarova (MTBF) | 69.42 godine |
| Srednje vrijeme za popravak (MTTR) | 2 sati |
| Dostupnost | > 0.99999 |
| Zaštita od prenapona servisnog priključka | Uobičajeni način rada: ±7 kV |
| Zaštita od prenapona napajanja | Korištenje modula izmjenične struje: ±6 kV u diferencijalnom načinu rada, ±6 kV u uobičajenom načinu rada |
| Korištenje modula istosmjernog napajanja: ±2 kV u diferencijalnom načinu rada, ±4 kV u zajedničkom načinu rada | |
| Težina (s pakiranjem) | 7.89 kg (17.4 lb) |
| Stack portovi | Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions) |
| RTC | Podržano |
| RPS | Nije podržano |
| PoE | Nije podržano |
| Radna temperatura | -5°C do +50 °C (23°F do 122 °F) na nadmorskoj visini od 0-1800 m (0-5906 ft.) |
| Kratkotrajna radna temperatura | -5°C do +55 °C (23°F to 131°F) na nadmorskoj visini od 0-1800 m (0-5906 ft.) |
| Temperatura skladištenja | -40°C do +70 °C (-40°F do +158 °F) |
| Buka pri normalnoj temperaturi (27°C, zvučna snaga) | < 58.9 dB(A) |
| Relativna vlažnost | 5% do 95%, nekondenzirajući |
| Radna visina | 0-5000 m (0-16404 ft.) |
| Certifikacija | EMC certifikat Sigurnosna potvrda Certifikacija proizvodnje |
| Raspon nazivnog napona | AC ulaz: 100 V AC do 240 V AC, 50/60 Hz Visokonaponski DC ulaz: 240 V DC DC ulaz: -48 V DC do -60 V DC |
| Maksimalni raspon napona | AC ulaz: 90 V AC do 264 V AC, 47 Hz do 63 Hz Visokonaponski DC ulaz: 190 V DC do 290 V DC DC ulaz: -38.4 V DC do -72 V DC |
| Dimenzije (V x Š x D) | Osnovne dimenzije (isključujući dijelove koji strše iz tijela): 43.6 mm x 442.0 mm x 420.0 mm (1.72 u. x 17.4 u. x 16.5 u.) |
| Maksimalne dimenzije (dubina je udaljenost od otvora na prednjoj ploči do ručke na stražnjoj ploči): 43.6 mm x 442.0 mm x 444.2 mm (1.72 u. x 17.4 u. x 17.49 u.) |
Huawei S5735S-S24T4X-A Switch Product Features
- Supporting MAC authentication, 802.1x provjera autentičnosti, Portal authentication, and realizes the dynamic delivery of user policies (VLAN, QoS, ACL).
- Supporting complete DoS attack defense and user attack defense. Among them, the DoS type defense attack mainly targets the attacks of the switch itself, including SYN Flood, Zemljište, Štrumpf, and ICMP Flood; the user type defense attack involves DHCP server spoofing attacks, IP/MAC spoofing, Poplava DHCP zahtjeva, changing the DHCP CHADDR value, i tako dalje.
- Supporting the strict learning function of ARP entries, which can prevent normal users from being unable to access the Internet due to ARP spoofing attacks.
- Supporting SmartLink function. By connecting to multiple aggregation switches through multiple links, SmartLink realizes the backup of uplinks, which greatly improves the reliability of the access-side equipment.
Huawei S5735S-S24T4X-A Switch Product and More Related Models
S5735S-S24T4S-A Switch 24*10/100/1000Base-T Ethernet ports, 4 Gigabit SFP
S5735S-S32ST4X-A Switch 24*Gigabit SFPs, 8 10/100/1000Base-T Ethernet priključci, 4 10 Gigabit SFP+
S5735S-S48T4S-A Switch 48*10/100/1000Base-T Ethernet ports, 4 Gigabit SFP
S5735S-S24T4X-A Switch 24*10/100/1000BASE-T Ethernet ports, 4 10G SFP+
S5735S-S24P4X-A Switch 24*10/100/1000BASE-T Ethernet ports, 4 10G SFP+ POE+
S5735S-S48T4X-A Switch 48*10/100/1000BASE-T Ethernet ports, 4 10G SFP+
S5735S-S48P4X-A Switch 48*10/100/1000BASE-T Ethernet ports, 4 10G SFP+ POE+
Huawei S5735S-S24T4X-A Switch Product Ordering Info
| CloudEngine S5735-S24T4X | CloudEngine S5735-S24T4X (24 x 10/100/1000Base-T priključci, 4 x 10 GE SFP+ priključci, bez modula napajanja) |
| CloudEngine S5735-S24P4X | CloudEngine S5735-S24P4X (24 x 10/100/1000Base-T priključci, 4 x 10 GE SFP+ priključci, PoE+, bez modula napajanja) |
| CloudEngine S5735-S48T4X | CloudEngine S5735-S48T4X (48 x 10/100/1000Base-T priključci, 4 x 10 GE SFP+ priključci, bez modula napajanja) |
| CloudEngine S5735-S48P4X | CloudEngine S5735-S48P4X (48 x 10/100/1000Base-T priključci, 4 x 10 GE SFP+ priključci, PoE+, bez modula napajanja) |
| CloudEngine S5735-S32ST4X | CloudEngine S5735-S32ST4X (24 x GE SFP priključci, 8 x 10/100/1000Base-T priključci, 4 x 10 GE SFP+ priključci, bez modula napajanja) |
| CloudEngine S5735-S48S4X | CloudEngine S5735-S48S4X (48 x GE SFP priključci, 4 x 10 GE SFP+ port, bez modula napajanja) |
| PDC1000S56-CB | 1000 W AC PoE modul napajanja，used in PoE models |
| PAC1000S56-CB | 600 W AC PoE modul napajanja，used in PoE models |
| PAC1000S56-DB | 1000 W AC PoE modul napajanja，used in PoE models |
| PDC180S12-CR | 180 W DC modul napajanja，used in Non-PoE models |
| PDC1000S12-DB | 1000 W DC modul napajanja，used in Non-PoE models |
| PAC150S12-R | 150 W AC modul napajanja, used in CloudEngine S5735-S48S4X |
| PAC60S12-AR | 60 W AC modul napajanja |
| N1-S57S-M-Lic | Osnovni SW serije S57XX-S,Po uređaju |
| N1-S57S-M-SnS1Y | Osnovni SW serije S57XX-S,SnS,Po uređaju,1Godina |
| N1-S57S-F-Lic | N1-CloudCampus,Temelj,Serija S57XX-S,Po uređaju |
| N1-S57S-F-SnS1Y | N1-CloudCampus,Temelj,Serija S57XX-S,SnS,Po uređaju,1Godina |
| N1-S57S-A-Lic | N1-CloudCampus,Napredna,Serija S57XX-S,Po uređaju |
| N1-S57S-A-SnS1Y | N1-CloudCampus,Napredna,Serija S57XX-S,SnS,Po uređaju,1Godina |
| N1-S57S-FToA-Lic | N1-Nadogradnja-temelja na napredno,S57XX-S,Po uređaju |
| N1-S57S-FToA-SnS1Y | N1-Nadogradnja-temelja na napredno,S57XX-S,SnS,Po uređaju,1Godina |
Huawei S5735S-S24T4X-A Switch Product Applications
