Opis
Huawei S5731-H24P4XC Switch is enhanced gigabit access switch with 24-ports 1000BASE-T, 4-ports 10GE SFP+, 1 extended slot, PoE+, bez modula napajanja
Huawei S5731-H24P4XC Switch Product Overview
Huawei S5731-H24P4XC Switch is a newly developed and enhanced gigabit access switch developed. It can provide full gigabit electrical port access and fixed 10 gigabit uplink ports, and reserves 1 expansion card slot.
Huawei S5731-H24P4XC Switch have deep wired and wireless integration capabilities, support on-board AC, and can manage up to 1K AP; have free mobility capabilities to provide a consistent user experience; have VxLAN capabilities and support network virtualization functions to meet the needs of campus networks. Multi-purpose requirements; u isto vrijeme, this series of switches have built-in security probes to support abnormal traffic detection, encrypted traffic threat analysis, and network-wide threat trapping. It is a large and medium-sized high-quality campus network branch, small campus network core and data center connection
The S5700 is available in a lite (LI) niz, a standard (SI) niz, an enhanced (NE) niz, and a hyper (BOK) niz.

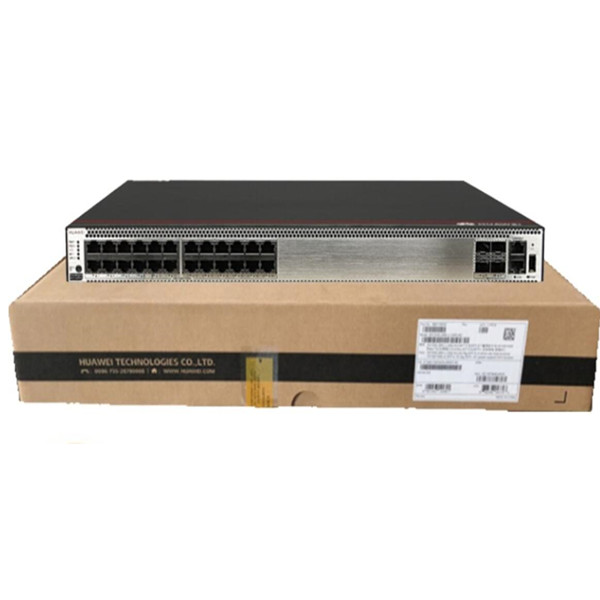

Huawei S5731-H24P4XC Switch Product Pictures
Huawei S5731-H24P4XC Switch Product Specifications
| Artikal | Opis |
| Model | S5731-H24P4XC |
| Broj dijela | 02352QPV |
| Memorija (radna memorija) | 4 GB |
| Bljesak | 1 GB ukupno. Za pregled dostupne veličine flash memorije, pokrenite naredbu za prikaz verzije. |
| Srednje vrijeme između kvarova (MTBF) | 57.21 godine |
| Srednje vrijeme za popravak (MTTR) | 2 sati |
| Dostupnost | > 0.99999 |
| Zaštita od prenapona servisnog priključka | Uobičajeni način rada: ±6 kV |
| Zaštita od prenapona napajanja | ±6 kV u diferencijalnom načinu rada, ±6 kV u uobičajenom načinu rada |
| Dimenzije (V x Š x D) | Osnovne dimenzije (isključujući dijelove koji strše iz tijela): 43.6 mm x 442.0 mm x 420.0 mm (1.72 u. x 17.4 u. x 16.5 u.) |
| Maksimalne dimenzije (dubina je udaljenost od otvora na prednjoj ploči do ručke na stražnjoj ploči): 43.6 mm x 442.0 mm x 448.0 mm (1.72 u. x 17.4 u. x 17.7 u.) | |
| Težina (s pakiranjem) | 8.6 kg (18.96 lb) |
| Stack portovi | 10GE SFP+ priključci na prednjoj ploči, ili priključke na stražnjoj kartici |
| Raspon nazivnog napona | AC ulaz: 100 V AC do 130 V AC, 200 V AC do 240 V AC, 50/60 Hz |
| Visokonaponski DC ulaz: 240 V DC | |
| Maksimalni raspon napona | AC ulaz: 90 V AC do 290 V AC, 45 Hz do 65 Hz |
| Visokonaponski DC ulaz: 190 V DC do 290 V DC | |
| Maksimalna potrošnja energije (100% propusnost, punom brzinom ventilatora) | Ne pruža funkciju PoE: 121 W (bez kartice) |
| 100% PoE opterećenja: 977 W (PoE: 720 W, bez kartice) | |
| Uobičajena potrošnja energije (30% prometnog opterećenja, testiran prema ATIS standardu) | 95 W (bez kartice) |
| Temperatura skladištenja | -40°C do +70 °C (-40°F do +158 °F) |
| Buka pri normalnoj temperaturi (27°C, zvučna snaga) | < 62.3 dB(A) |
| Relativna vlažnost | 5% do 95%, nekondenzirajući |
| Radna visina | 0-5000 m (0-16404 ft.) |
| Certifikacija | EMC certifikat |
| Sigurnosna potvrda | |
| Certifikacija proizvodnje |
Huawei S5731-H24P4XC Switch Product and More Model
CloudEngine S5731-H24P4XC 24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports POE+
CloudEngine S5731-H24P4XC-K
CloudEngine S5731-H24T4XC 24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports
CloudEngine S5731-H24T4XC-K
CloudEngine S5731-H48P4XC 48 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports POE+
CloudEngine S5731-H48P4XC-K
CloudEngine S5731-H48T4XC 48 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports
CloudEngine S5731-H48T4XC-B 48 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports
CloudEngine S5731-S24P4X
CloudEngine S5731-S24T4X
CloudEngine S5731-S48P4X
CloudEngine S5731-S48T4X
CloudEngine S5731S-H24T4S-A
CloudEngine S5731S-H24T4X-A

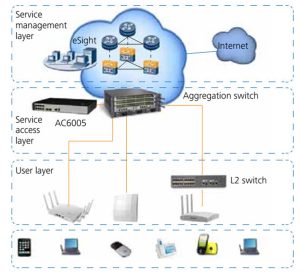

Huawei S5731-H24P4XC Switch Product Applications
