Opis
HS8346V5 FTTH is a smart gateway device of Huawei’s Gigabit fiber smart home solution for China Unicom. It provides 1 POTS voice interface, 4 GE/FE adaptive Ethernet ports and dual-band Wi-Fi (2.4GHz & 5GHz) .
HS8346V5 FTTH Product Overview
HS8346V5 FTTH is a smart gateway device for the gigabit fiber smart home solution built by Huawei for China Unicom. It provides 1 POTS interface, 4 GE/FE adaptive Ethernet ports and dual-band Wi-Fi (2.4GHz & 5GHz) , featuring Flexible application, and supporting plug and play, daljinska dijagnoza, green energy saving and other features. HS8346V5 supports GPON and EPON technologies to realize ultra-broadband access for home users in FTTH networking scenarios. Its high-performance forwarding capability effectively guarantees the service experience of voice, data and high-definition video, and provides an ideal terminal solution and orientation for FTTH deployment. Future service support capabilities.
HS8346V5 FTTH Product Pictures
HS8346V5 FTTH Product Specifications
| Model | HS8346V5 |
| Interface Port | 1 x LIMENKE + 4 x GE + 2.4G/5G Wi-Fi + 1 x USB |
| Uobičajena potrošnja energije | 8 W |
| Specifikacije snage | Ulaz adaptera za napajanje: 100 do 240 V AC, 50–60 Hz |
| Napajanje sustava: 11–14 VDC, 2 A | |
| WLAN | 2.4GHZ: 802.11n 5GHZ: 802.11ak |
| Priključak na strani mreže | GPON/EPON |
| Indikatori | NAPAJANJE/PON/LOS/TEL/LAN/WLAN/WPS/USB |
| Dimenzije (duljina x širina x visina) | 173 mm x 120 mm x 30 mm |
| Težina | Oko 0.5 |
| Radno okruženje | Radna temperatura: 0ºC do 40ºC |
| Vlažnost okoliša: 5% do 95% (nekondenzirajući) |
HS8346V5 FTTH Product Features
- Vrsta sučelja: 1POTS+4GE+1USB+ dual frequency (2.4GHz & 5GHz) Wi-Fi.
- Flexible application: PCs, STBs and other home terminals can be intermixed arbitrarily on the Ethernet port; support both SIP and H.248 protocol adaptation, easy to connect with the softswitch.
- Plug and play: Supports remote automatic release of voice, broadband, multicast and other services through OMCI protocol and TR069 without on-site configuration.
- Dijagnostika na daljinu: Support POTS port outside line test, call emulation, PPPoE dial emulation, easily realize remote fault location.
- Green energy saving: Highly integrated SOC, integrated modules such as PON, glas, gateway and LSW, saving 25% energy.
HS8346V5 FTTH and More Related Models
EPON/ GPON ONT
GEPON ONT
HG8010 EPON ONT, 1*LAN Engleski Firmware
HG8310 EPON ONT, 1*LAN Engleski Firmware
HG8110 EPON ONT, 1*LAN+1*Glasovni engleski firmware
HG8120 EPON ONT, 2*LAN+1*Glasovni engleski firmware
HG8240 EPON ONT, 4*LAN+2*Glasovni engleski Firmware
HG8346R EPON ONT, 4*LAN+2*Glas+WIFI Engleski firmware
HG8245 EPON ONT, 4*LAN+2*Glas+WIFI Engleski firmware
GPON ONT
HG8310M GPON ONT, 1*LAN Engleski Firmware
HG8010/HG8010C GPON ONT, 1*LAN Engleski Firmware
HG8311/HG8110/HG8110F GPON ONT, 1*LAN+1*VOICE engleski Firmware SIP
HG8120C/HG8120F/HG8120/HG8321/HG8321R GPON ONT, 2LAN+VOICE engleski Firmware SIP
HG8340M/HG8540/HG8040 GPON ONT, 4FE engleski Firmware SIP
HG8342/HG8342R/HG8342M/HG8240 GPON ONT, 4FE+2VOICE Engleski firmware SIP
HG8240/HG8240H GPON ONT, 4GE+2VOICE engleski firmware SIP
HG8345R unutarnja antena GPON ONT, 4FE+WIFI (unutarnja antena)Engleski firmware SIP
HG8345R vanjska antena GPON ONT, 4FE+WIFI (vanjska antena)Engleski firmware SIP
HG8546M GPON ONT, 1GE+3FE+GLAS+WIFI, Engleski firmware SIP
HG8346M/HG8245A/HG8346R GPON ONT, 4FE+2GLAS+WIFI (unutarnja antena)Engleski firmware SIP
HG8346R external antenna GPON ONT, 4FE+2GLAS+WIFI (vanjska antena)Engleski firmware SIP
HG8245C2 GPON ONT, 2GE+2FE+2VOICE+WIFI Engleski firmware SIP
HG8245H external antenna GPON ONT, 4GE+2VOICE+WIFI ( vanjska antena)crne boje engleski SIP
HG8245H GPON ONT, 4GE+2VOICE+WIFI Engleski Firmware SIP ONT
HG8247H GPON/EPON ONT, 4GE+2VOICE+WIFI+CATV engleski Firmware SIP

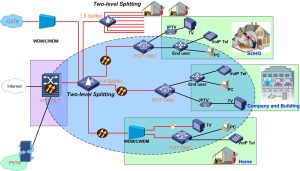

HS8346V5 FTTH Product Applications
