Opis
GYFTZY-8~12Xn Optic Cable is Labav rukav nasukan non–metallic reinforced jezgra non–oklopni flame retardant optički kabel
GYFTZY-8~12Xn Optic Cable Product Overview
Gyftzy (non-metallic strengthening member, otporan na plamen, loose tube layer-stranded filling type, polyethylene sheath) non-metallic flame-retardant optical cable (general power optical cable adopts layer-stranded type) is basically the same as in GYFTY, mainly based on GYFTY optical cable The increase of the sheath considers its flame retardancy. The center reinforcing member adopts a glass fiber reinforced plastic rod (FRP) with a higher Young’s modulus. The double-sided film-coated corrugated steel tape is longitudinally wrapped and tightly bonded with the PE sheath, which not only ensures the radial moisture resistance of the optical cable, but also enhances the cable’s ability to withstand lateral pressure.

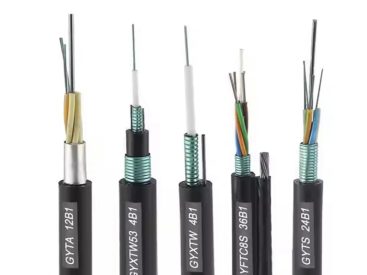

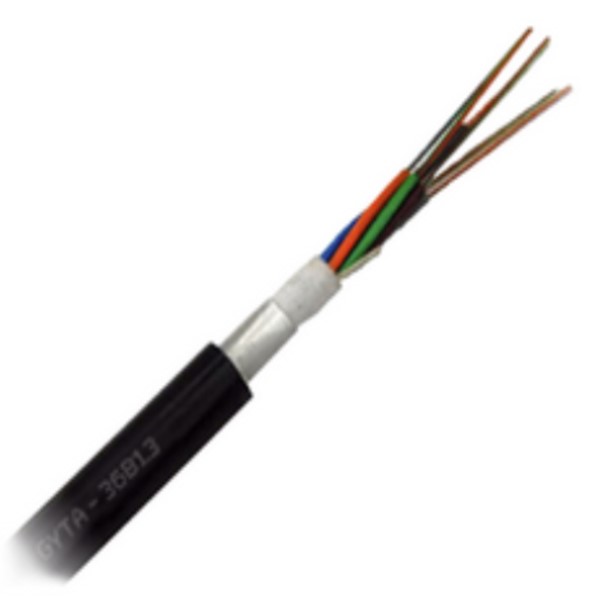

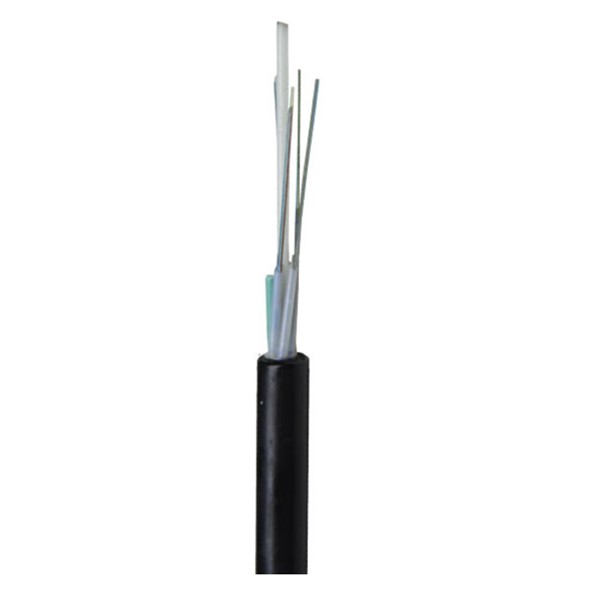

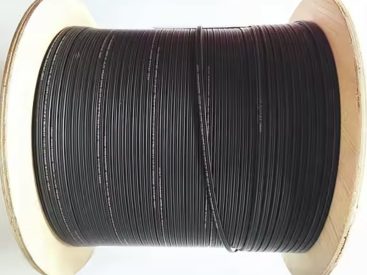

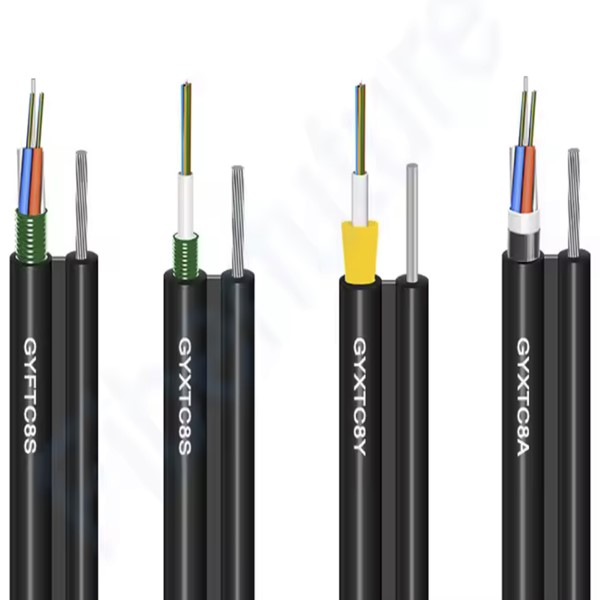

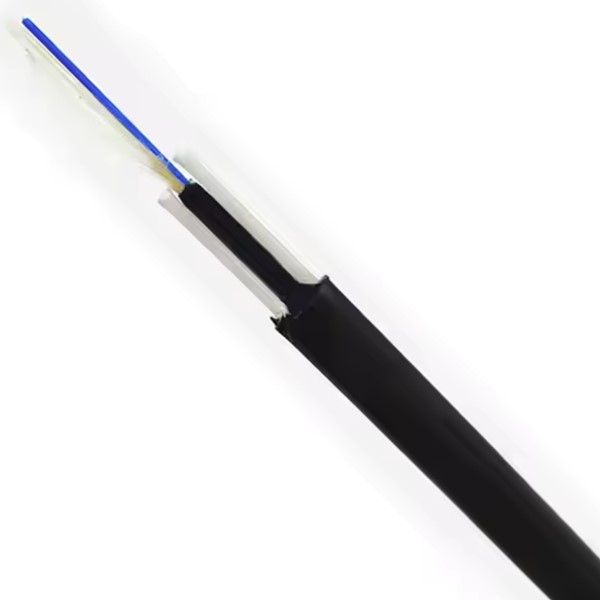

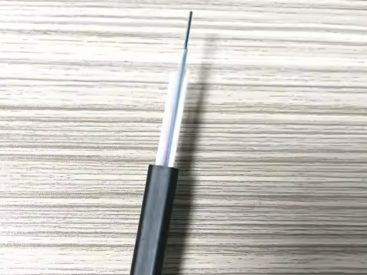

GYFTZY-8~12Xn Optic Cable Product Pictures
GYFTZY-8~12Xn Optic Cable Product Specifications
| Model optičkog kabela vlakana (U koracima od 2 vlakana) |
Broj vlakana | Broj kućišta | Broj konopa za punjenje | Težina referentnog kabela (Kg/km) | Dopuštena je zatečna sila Dugoročno/kratkoročno (N) |
Dopuštena sila za tiskanje Dugoročno/kratkoročno (N/100 mm) |
Polumjer Statički/dinamičan (mm) |
|
| GYFTZY-2~6Xn | 2~ 6 | 1 | 5 | 123 | 400/1000 | 300/1000 | 10D/20D | |
| GYFTZY-8~12Xn | 8~ 12 | 2 | 4 | 123 | ||||
| GYFTZY-14~18Xn | 14~ 18 | 3 | 3 | 123 | ||||
| GYFTZY-20~24Xn | 20~ 24 | 4 | 2 | 123 | ||||
| GYFTZY-26~30Xn | 26~ 30 | 5 | 1 | 123 | ||||
| GYFTZY-32~36Xn | 32~ 36 | 6 | 0 | 123 | ||||
| GYFTZY-2~6Xn | 2~ 6 | 1 | 6 | 131 | 600/1500 | |||
| GYFTZY-8~12Xn | 8~ 12 | 2 | 5 | 131 | ||||
| GYFTZY-14~18Xn | 14~ 18 | 3 | 4 | 131 | ||||
| GYFTZY-20~24Xn | 20~ 24 | 4 | 3 | 131 | ||||
| GYFTZY-26~30Xn | 26~ 30 | 5 | 2 | 131 | ||||
| GYFTZY-32~36Xn | 32~ 36 | 6 | 1 | 131 | ||||
| GYFTZY-38~42Xn | 38~ 42 | 7 | 0 | 131 | ||||
| GYFTZY-44~48Xn | 44~ 48 | 4 | 2 | 137 | ||||
| GYFTZY-50~60Xn | 50~ 60 | 5 | 1 | 137 | ||||
| GYFTZY-62~72Xn | 62~ 72 | 6 | 0 | 137 | ||||
| GYFTZY-2~6Xn | 2~ 6 | 1 | 7 | 155 | 1000/3000 | |||
| GYFTZY-8~12Xn | 8~ 12 | 2 | 6 | 155 | ||||
| GYFTZY-14~18Xn | 14~ 18 | 3 | 5 | 155 | ||||
| GYFTZY-20~24Xn | 20~ 24 | 4 | 4 | 155 | ||||
| GYFTZY-26~30Xn | 26~ 30 | 5 | 3 | 155 | ||||
| GYFTZY-32~36Xn | 32~ 36 | 6 | 2 | 155 | ||||
| GYFTZY-38~42Xn | 38~ 42 | 7 | 1 | 155 | ||||
| GYFTZY-44~48Xn | 44~ 48 | 8 | 0 | 155 | ||||
| GYFTZY-50~60Xn | 50~ 60 | 5 | 3 | 162 | ||||
| GYFTZY-62~72Xn | 62~ 72 | 6 | 2 | 162 | ||||
| GYFTZY-74~84Xn | 74~ 84 | 7 | 1 | 162 | ||||
| GYFTZY-86~96Xn | 86~ 96 | 8 | 0 | 162 | ||||
| GYFTZY-98~108Xn | 98~ 108 | 9 | 1 | 192 | ||||
| GYFTZY-110~120Xn | 110~ 120 | 10 | 0 | 192 | ||||
| GYFTZY-122~132Xn | 122~ 132 | 11 | 1 | 228 | ||||
| GYFTZY-134~144Xn | 134~ 144 | 12 | 0 | 228 | ||||
| Vrsta vlakana | Prigušenje （+20 ℃） | Širina pojasa | Numerički otvor | Valna duljina kabela za vlaknasti kabel | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | - | - | ≤0,36db/km | ≤0,22db/km | - | - | - | ≤1260nm |
| G.655 | - | - | ≤0,40db/km | ≤0,23db/km | - | - | - | ≤1450nm |
| 50/125µm | ≤3.3db/km | ≤1.2db/km | - | - | ≥500MHz · km | ≥500MHz · km | 0.200± 0,015 | - |
| 62.5/125µm | ≤3,5db/km | ≤1.2db/km | - | - | ≥200MHz · km | ≥500MHz · km | 0.275± 0,015 | - |
GYFTZY-8~12Xn Optic Cable Product Features
- Low coefficient of attenuation and chromatic dispersion.
- Small diameter.
- It occupies little space.
- Anti-electromagnetism ability.
GYFTZY-8~12Xn Optic Cable and More Optic Cables
Loose sleeve stranded light armored fiber strip cable (GYDTS)
Namotana labava jakna neozmućena optička kabela (Gyta)
Nasukana labava jakna Nemetalna ojačana jezgra bez oklopljenog optičkog kabela za retardiranje plamena (Gyftzy)
Labav rukav nasukan ojačani jezgra oklopni plamen retardiran optički kabel(Gytza53)
Labavi nasukani nasukani nemetalni ojačani jezgra oklopni oklopni plamen retardantni vlaknasti kabel (Gyftza53)
Nasukani optički kabel za retardiranje plamena (Gytzs)
Nasukana labava jakna neoružena optički kabel za retardantne plamen (Gytza)
Nasukani labavi rukav nemetalni ojačani oklopni oklopni vlaknasti optički kabel (Cyfta53)
Nasukani ne-metalni ojačavajući jezgra obični oklopni optički kabel (Cyfty53)
Nasukana labava jakna Nemetalna ojačana jezgra neograničena optička vlaknast kabel (Sudbina)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Nasukana labava jakna Nemetalna ojačana jezgra neograničena optička vlaknast kabel (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
GYFTZY-8~12Xn Optic Cable Product Applications
Primjena: pipelines, overhead
GYFTZY-8~12Xn Optic Cable Product Structure
