Cisco WS-C2960G-48TC-L Switch is 48 luke 10/100/1000, 4 T/SFP LAN Base Image Gigabit Switch
Cisco WS-C2960G-48TC-L Switch Product Overview
Cisco WS-C2960G-48TC-L Switch is equipped with 44 Ethernet 10/100 ports and 2 dual media uplink ports (10/100 / 1000BASE-T or SFP), supports 1RU fixed-configuration switches and provides entry-level enterprise intelligence Service, and a LAN base image is installed. It has a backplane bandwidth of up to 32Gbps, a packet forwarding rate of 39Mpps, and outstanding performance.
Cisco WS-C2960G-48TC-L Switch dual-function uplink provides Gigabit Ethernet uplink flexibility, enables network administrators to use copper or fiber uplinks, and provides more intelligence to the network edge Features such as more advanced access control lists (ACL-ovi) and enhanced security features

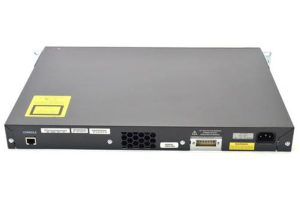

Cisco WS-C2960G-48TC-L Switch Product Picture
Cisco WS-C2960G-48TC-L Switch YCICT Product Specifications
Marka | Cisco |
Model | WS-C2960G-48TC-L |
Device Type | Sklopka – 48 luke – Managed |
Vrsta kućišta | Rack-mountable 1U |
sučelja | Gigabit Ethernet |
luke | 48 x 10/100/1000 + 4 x combo Gigabit SFP |
Izvođenje | Preklopni kapacitet: 32 Gbps |
Izvedba prosljeđivanja (64-byte packet size) : 39 MPs | |
Veličina tablice MAC adresa | 8K entries |
Protokol za daljinsko upravljanje | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
Sukladni standardima | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) |
Vlast | AC 120/230 V ( 50/60 Hz ) |
Dimenzije (WxDxH) | 44.5 cm x 32.8 cm x 4.4 cm |
Težina | 5 kg |
Manufacturer Warranty | one year warranty |
Cisco WS-C2960G-48TC-L Switch Product Features
- 24 ili 48 Gigabit Ethernet priključci
- 1G Small Form-Factor Pluggable (SFP) or 1G/10G SFP+ slots
- Cisco FlexStack stacking with 20 Gbps of stack throughput (neobavezan)
- IEEE 802.3at-compliant PoE+ for up to 30W of power per port
- Up to 740W of combined PoE/PoE+ budget
- USB interfaces for management and file transfers
- LAN Base or LAN Lite Cisco IOS Software feature set
- Smart Operations tools that simplify deployment and reduce the cost of network administration
- An enhanced limited lifetime hardware warranty (E-ZAKLETVA), providing next-business-day replacement
Cisco WS-C2960G-48TC-L Switch and More Models
Model proizvoda | 10/100/1000 Ethernet priključak | Uplink | Skup značajki | PoE napajanje | Flexstack-Plus i Flexstack-Extended stack |
WS-C2960XR-48FPD-I | 48 | 2 SFP+ uzlazna veza | IP Lite | 740W | Neobavezno |
WS-C2960XR-48LPD-I | 48 | 2 SFP+ uzlazna veza | IP Lite | 370W | Neobavezno |
WS-C2960XR-24PD-I | 24 | 2 SFP+ uzlazna veza | IP Lite | 370W | Neobavezno |
WS-C2960XR-48TD-I | 48 | 2 SFP+ uzlazna veza | IP Lite | – | Neobavezno |
WS-C2960XR-24TD-I | 24 | 2 SFP+ uzlazna veza | IP Lite | – | Neobavezno |
WS-C2960XR-48FPS-I | 48 | 4 SFP uzlazna veza | IP Lite | 740W | Neobavezno |
WS-C2960XR-48LPS-I | 48 | 4 SFP uzlazna veza | IP Lite | 370W | Neobavezno |
WS-C2960XR-24PS-I | 24 | 4 SFP uzlazna veza | IP Lite | 370W | Neobavezno |
WS-C2960XR-48TS-I | 48 | 4 SFP uzlazna veza | IP Lite | – | Neobavezno |
WS-C2960XR-24TS-I | 24 | 4 SFP uzlazna veza | IP Lite | – | Neobavezno |
