Opis
Brokat 57-1000332-01 32G is 32Gb/s LWL (10 km) SFP+ optimizirano, Certified Optical Transceivers for Data Center Network Connectivity Fibre Channel: 8.5Gb/s, 14.025Gb/s, i 28,05Gb/s brzinom linije, full duplex; auto-sensing of 8Gb/s, 14Gb/s, and 28Gb/s port speeds
Brokat 57-1000332-01 32G Pregled proizvoda
Brokat 57-1000332-01 32G Long Wavelength (LWL) 10 km SFP+, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage the Brocade 32Gb/s director and switch products. Brocade LWL SFPs extend native Fibre Channel and mainframe over distance, enabling high-performance disaster recovery and business continuity solutions.
Brocade LWL SFPs are the standard choice for use in mainframe environments, connecting to IBM System z channels and FICON devices over distance for business continuity and disaster recovery. Together with Brocade switching products, 32Gb/s LWL SFPs and single-mode fiber provide enterprises with state-of-the-art performance and availability, helping IT organizations achieve new levels of infrastructure consolidation, sigurnosti, and uptime while expanding the capabilities of their applications and services.

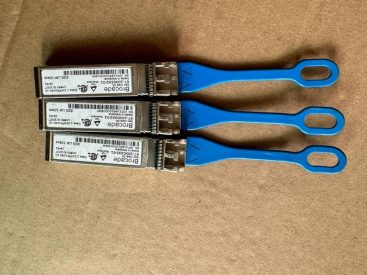

Brokat 57-1000332-01 32G Slika proizvoda
Brokat 57-1000332-01 32G Specifikacije proizvoda
| Izvođenje | Fibre Channel: 8.5Gb/s, 14.025Gb/s, i 28,05Gb/s brzinom linije, full duplex; auto-sensing of 8Gb/s, 14Gb/s, and 28Gb/s port speeds |
| Mediji | Hot-pluggable, industrijski standard SFP+, duplex LC connector |
| Radni parametri | Prenositi (Tx): • Valna duljina: 1295 nm do 1325 nm • Spectral width: 1.0 nm • Prosječna snaga: –5.0 dBm to 2.0 dBm • RIN: –130 dB/Hz max • VLASTITI: 631 μW min primiti (Rx): • Prosječna snaga: 2 dBm maks • Optički povratni gubitak: 26 dB min • Nenaglašena osjetljivost: 72 μW, –11,4 dBm |
| Veličina | Širina: 14.80 mm (0.58 inča) Visina: 11.85 mm (0.47 inča) Dubina: 56.50 mm (2.22 inča) |
| Temperatura skladištenja | –40°C to 85°C (–40°F to 185°F |
| Power Dissipation | 1.5W |
| Sjeverna Amerika | UL/CSA 60950, CDRH klasa 1 |
| Europska unija | U 60950, U 60825 Klasa 1 |
Brokat 57-1000332-01 32G Značajke proizvoda
- Provide high system reliability through rigorous qualification and certification processes.
- Leverages unique design parameters to provide the highest performance with industry-leading Brocade switch and director platforms to support business continuity and disaster recovery.
- Help eliminate issues related to SFP incompatibility, reducing downtime and support costs.
- Help eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility.
- Optimizes connectivity with Brocade platforms to enable maximum cable distance.
- Extend Fibre Channel connectivity over distance in enterprise environments, enabling high-performance business continuity and disaster recovery solutions.
- Ensure reliable FICON connectivity, interoperability, and architectural adherence between IBM Z mainframes and Brocade SAN products and storage devices.
Brokat 57-1000332-01 32G and More 32G SFP Modules
32G FC SFP+
SWL
57-1000333-01
XBR-000212 (1-paket)
XBR-000213 (8-paket)
SWL
57-1000485-01
XBR-000412 (1-paket)
XBR-000413 (8-paket)
LWL-10 km
57-1000332-01
XBR-000238 (1-paket)
XBR-000239 (8-paket)
LWL-10 km
57-1000486-01
XBR-000438 (1-paket)
XBR-000439 (8-paket)
ELWL-25 km
57-1000335-01
XBR-000278 (1-paket)
ELWL-25 km
57-1000494-01
XBR-000478 (1-paket)
ELWL-25 km
57-1000498-01
XBR-000479 (1-paket)
Brokat 57-1000332-01 32G Primjene proizvoda
