विवरण
SIMCom SIM800C 2G Module is a Quad-Band GSM/GPRS module in LCC type delivering GPRS up to 85.6kbps data transfer
SIMCom SIM800C 2G Module Product Overview
The module is Quad-Band GSM/GPRS module designed in LCC package, and supports GPRS up to 85.6kbps data transfer. एक ही समय पर, it has strong extension capability with abundant interfaces including UART, यूएसबी2.0, GPIO etc. The module provides much flexibility and ease of integration for customer’s applications.
SIMCom SIM800C 2G Module Product Pictures
SIMCom SIM800C 2G Module Product Specifications
| ब्रांड | सिमकॉम |
| नमूना | SIM800C |
| बनाने का कारक | LCC 42Pin |
| DIMENSIONS(मिमी) | 17.6*15.7*2.3मिमी |
| वज़न | 1.3±0.1 ग्राम |
| आपूर्ति वोल्टेज रेंज | 3.4 ~ 4.4V |
| प्रचालन तापमान | -40℃ ~ +85℃ |
| फ़्रीक्वेंसी बैंड | • Frequency Bands: 850/900/1800/1900MHz • GPRS multi-slot class: 12/10 |
| इंटरफेस | • Analog audio interface• UART• (यू)सिम कार्ड(1.8वी/3वी )
• RTC• ADC• GPIO• Antenna: GSM/BT* |
| Specifications for SMS via GSM/GPRS | • Point to point MO and MT• SMS cell broadcast• Text and PDU mode |
| Specifications for GPRS Data | • GPRS class 12: Uplink/Downlink up to 85.6Kbps• PBCCH support
• Coding schemes CS 1, 2, 3, 4• PPP-stack• USSD |
| सॉफ्टवेयर सुविधाएँ | • 0710 MUX protocol• Embedded TCP/UDP protocol• FTP/HTTP/POP3/SMTP• MMS• D TMF• Jamming Detection• Audio Record• LBS*• SSL/TLS*• BT 3.0*• TTS*• EAT* |
| Specifications for voice | • Speech Codec Modes– AMR/HR/FR/EFR• Echo Arithmetic– AEC/EES |
| प्रमाणपत्र | RoHSREACHCCCCTASRRCMobileUnicomRCMCE
(लाल)GCFBQB(ब्लूटूथ)TIMDeutsche TelekomICASAFCCOCD(एनाटेल) |
SIMCom SIM800C 2G Module Product Features
● Small size quad-band GSM/GPRS module
● LCC form factor, easy for solder
● Abundant software functions: डीटीएमएफ, MMS, MUX
● Low Power consumption
● Embedded TCP/UDP protocols
SIMCom SIM800C 2G Module Product and More 2G modules
R800C LCC 42Pin
SIM808 LCC 68Pin
SIM800C LCC 42Pin
SIM868E LCC+LGA 77Pin
SIM868 LCC+LGA 77Pin
SIM800 LCC 68Pin
SIM800H LGA 88Pin
SIM800F LCC 68Pin
SIM800C-DS LCC+LGA 77Pin

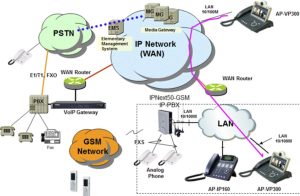

SIMCom SIM800C 2G Module Product Applications
