विवरण
Mini Air-blown Optical Cable is is a colored 2-24 core optical fiber placed in the bundle tube, and a layer of high-density polyethylene outer sheath is extruded on the outer skin
Mini Air-blown Optical Cable Product Overview
The fiber cable is suitable for overhead and pipeline laying, and a small specification of reinforced steel rope can be used when laying overhead. Save existing piping resources when laying pipes. Compared with the traditional layered stranded optical cable, the material consumption and processing cost of the microcable with the same number of cores are greatly reduced. इसके अलावा, the bending performance is good, and the miniature optical cable has good resistance to side pressure under normal working conditions.

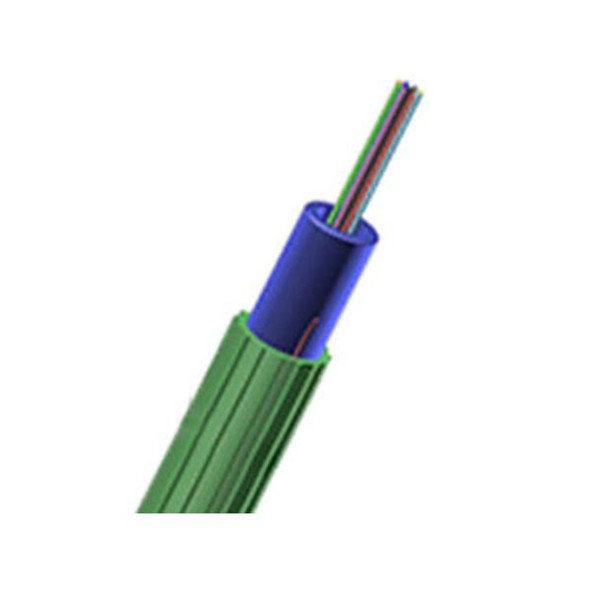

Mini Air-blown Optical Cable Product Pictures
Mini Air-blown Optical Cable Product Specifications
| जी.652 | जी.655 | 50/125माइक्रोन | 62.5/125माइक्रोन | ||
| क्षीणन (+20डिग्री सेल्सियस) | @850एनएम | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300एनएम | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310एनएम | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550 एनएम | ≤0.22 dB/km | ≤0.23dB/किमी | |||
| बैंडविड्थ (Class A) | @850एनएम | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300एनएम | ≥1000 MHz·km | ≥600 MHz·km | |||
| संख्यात्मक एपर्चर | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelengthλcc | ≤1260 एनएम | ≤1480 एनएम | |||
| फाइबर गिनती | Outer Diameter (मिमी) | Cable Weight kg/km | Tensile Strength (एन) | Crush Resistance (N/100mm) | Bending Radius mm | Micro duct diameter (मिमी) | |||
| Long Term | Short Term | Long Term | Short Term | स्थिर | Dynamic | ||||
| 2~12 | 4 | 12 | 60 | 150 | 150 | 450 | 10डी | 20डी | 7.0/5.5 |
| 14~24 | 4.4 | 14 | 60 | 150 | 150 | 450 | 10डी | 20डी | 8.0/6.0 |
| 200um Bare Fiber | |||||||||
| फाइबर गिनती | Outer Diameter (मिमी) | Cable Weight kg/km | Tensile Strength (एन) | Crush Resistance (N/100mm) | Bending Radius mm | Micro duct diameter (मिमी) | |||
| Long Term | Short Term | Long Term | Short Term | स्थिर | Dynamic | ||||
| 2~12 | 3.5 | 10 | 60 | 150 | 150 | 450 | 10डी | 20डी | 7.0/5.5 |
| 14~24 | 4 | 12 | 60 | 150 | 150 | 450 | 10डी | 20डी | 7.0/5.5 |
Mini Air-blown Optical Cable Product Features
- Small diameter
- Frees up capital to expand network and client base
- Network design flexibility
- 5/3.5mm microduct suitable
- Easy to upgrade
- Greater blowing distance
- Fiber: G.G652D, जी.657ए1, G.657A2 & multimode fiber
Mini Air-blown Optical Cable Product Applications
- Security monitoring project
- Telecommunications network construction
- Construction of communication base stations in rural and urban remote areas
- Fiber optic access to urban residential communities and buildings
- Other occasions where information and electricity are needed at the same time
Mini Air-blown Optical Cable and More Cables
Mini air-blown Optical Cable
सेंटर ट्यूब माइक्रो केबल
Air-blown optical fiber cable (GCYFY)

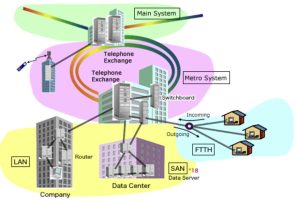

Mini Air-blown Optical Cable Product Topology
