विवरण
Huawei S5720-56C-EI-48S-AC Switch is an Enhanced Gigabit Switch with 48 गिग एसएफपी, 4 10 Gig SFP+ and Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
Huawei S5720-56C-EI-48S-AC Switch Product Overview
Thw switch offers Forwarding performance: 162 एमपीपीएस और स्विचिंग क्षमता: 598 जीबीआईटी/एस. It provides flexible GE access ports (including optical, electrical, and combo ports) and 10GE uplink ports. Built on next-generation high-performance processors and Versatile Routing Platform (VRP), S5720-EI provides larger table sizes and higher hardware processing capabilities than equivalent switches. With enhanced network admission control (NAC) functions, S5720-EI supports 802.1x authentication, मैक एड्रेस प्रमाणीकरण, Portal authentication, and hybrid authentication, and can dynamically delivery user policies such as VLANs, QoS policies, and access control lists (एसीएल). It also supports user management based on user groups. You can specify authentication-free IP network segments and enable redirection of HTTP connection requests to realize fast deployment of clients. If clients do not support HTTP access, the S5720-EI can trigger Portal authentication for the clients

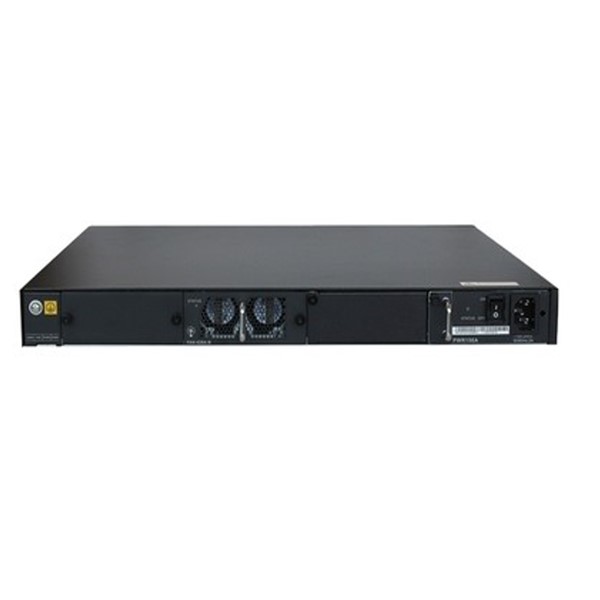

Huawei S5720-56C-EI-48S-AC Switch Product Pictures
Huawei S5720-56C-EI-48S-AC Switch Product Specifications
| वस्तु | विवरण |
| नमूना | S5720-56C-EI-48S-AC |
| पत्तन | 48 गिग एसएफपी, 4 10 गिग एसएफपी+ |
| भाग संख्या | 2359558 |
| याद (RAM) | 2 जीबी |
| चमक | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time to repair (MTTR) | 2 घंटे |
| Availability | > 0.99999 |
| Service port surge protection | Ports on the 2-port 10GE RJ45 rear interface card: ±2 kV in common mode |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode | |
| वज़न (with packaging) | 10.1 किलोग्राम (22.27 lb) |
| Stack ports | Ports on the 2-port 10GE SFP+ rear interface card |
| Ports on the 2-port 10GE RJ45 rear interface card | |
| Ports on the 2-port QSFP+ rear stack card | |
| RTC | का समर्थन किया |
| RPS | समर्थित नहीं |
| पीओई | समर्थित नहीं |
| रेटेड वोल्टेज रेंज | 100 वी ए.सी. को 240 वी ए.सी, 50/60 हर्ट्ज |
| -48 वी डीसी को -60 वी डीसी | |
| अधिकतम वोल्टेज रेंज | 90 वी ए.सी. को 264 वी ए.सी, 47 हर्ट्ज से 63 हर्ट्ज |
| -36 वी डीसी को -72 वी डीसी | |
| अधिकतम बिजली की खपत (100% THROUGHPUT, full speed of fans) | 104 डब्ल्यू |
| विशिष्ट बिजली की खपत (30% of traffic load) | 68.82 डब्ल्यू (without card) |
| Tested according to ATIS standard | 76.55 डब्ल्यू (with 2*10GE optical card) |
| EEE enabled | 81.23 डब्ल्यू (with 2*QSFP+ stack card) |
| No PoE power consumption | 83.78 डब्ल्यू (with 2*10GE electrical card) |
| परिचालन तापमान | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 एम (0-5906 फ़ुट.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 एम (0-5906 फ़ुट.) |
| भंडारण तापमान | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27डिग्री सेल्सियस, sound power) | < 51.2 डीबी(ए) |
| सापेक्षिक आर्द्रता | 5% को 95%, गैरसंघनक |
| परिचालन ऊंचाई | AC power modules configured: 0-5000 एम (0-16404 फ़ुट.) |
| DC power modules configured: 0-2000 एम (0-6562 फ़ुट.) | |
| Certification | EMC certification |
| सुरक्षा प्रमाणीकरण | |
| Manufacturing certification | |
| DIMENSIONS (एच एक्स डब्ल्यू एक्स डी) | Basic dimensions (excluding the parts protruding from the body): 44.4 मिमी एक्स 442.0 मिमी एक्स 424.7 मिमी (1.75 में. एक्स 17.4 में. एक्स 16.72 में।) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 मिमी एक्स 442.0 मिमी एक्स 451.8 मिमी (1.75 में. एक्स 17.4 में. एक्स 17.79 में।) |
Huawei S5720-56C-EI-48S-AC Switch Product Features
- S5720-EI provides excellent QoS capabilities and supports queue scheduling and congestion control algorithms. इसके अतिरिक्त, it adopts innovative priority queuing and multi-level scheduling mechanisms to implement fine-grained scheduling of data flows, meeting service quality requirements of different user terminals and services
- S5720-EI provides a series of mechanisms to defend against DoS and user-targeted attacks. DoS attacks are targeted at switches and include SYN flood, Land, Smurf, and ICMP flood attacks. User-targeted attacks include bogus DHCP server attacks, IP/MAC address spoofing, DHCP request flood, and change of the DHCP CHADDR value.
- S5720-EI uses the mature, stable VRP software platform and supports IPv4/IPv6 dual stacks, IPv6 routing protocols (RIPng, ओएसपीएफवी3, बीजीपी4+, and IS-ISv6), and IPv6 over IPv4 tunnels (including manual, 6-to-4, and ISATAP tunnels). With these IPv6 features, the S5720-EI can be deployed on a pure IPv4 network, a pure IPv6 network, or a shared IPv4/IPv6 network, helping achieve IPv4-to-IPv6 transition.
Huawei S5720-56C-EI-48S-AC Switch Product and More S5720-EI Models
S5720-32P-EI-AC 24 ईथरनेट 10/100/1000 बंदरगाहों, 4 100/1000 एसएफपी, 4 गिग एसएफपी, 2 QSFP+ dedicated stack ports AC power supply
S5720-32X-EI-AC 24 ईथरनेट 10/100/1000 बंदरगाहों, 4 100/1000 एसएफपी, 4 10 गिग एसएफपी+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-32X-EI-24S-AC 24 गिग एसएफपी, 4 ईथरनेट 10/100/1000 बंदरगाहों, 4 10 गिग एसएफपी+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-32X-EI-24S-DC 24 गिग एसएफपी, 4 ईथरनेट 10/100/1000 बंदरगाहों, 4 10 गिग एसएफपी+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-36C-EI-28S-AC 28 गिग एसएफपी, 4 of which are dual-purpose 10/100/1000, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies
S5720-36C-EI-28S-DC 28 गिग एसएफपी, 4 of which are dual-purpose 10/100/1000, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies
S5720-36C-EI-AC 28 ईथरनेट 10/100/1000 बंदरगाहों, 4 of which are dual-purpose 10/100/1000 या एसएफपी, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC power module equipped by default
S5720-36C-PWR-EI-AC 28 ईथरनेट 10/100/1000 PoE+ पोर्ट, 4 of which are dual-purpose 10/100/1000 या एसएफपी, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC power module equipped by default
S5720-36PC-EI-AC 28 ईथरनेट 10/100/1000 बंदरगाहों, 4 of which are dual-purpose 10/100/1000 या एसएफपी, 4 Gig SFP Double hot swappable AC or DC power supplies, one AC power module equipped by default
S5720-50X-EI-AC 46 ईथरनेट 10/100/1000 बंदरगाहों, 4 10 गिग एसएफपी+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-50X-EI-DC 46 ईथरनेट 10/100/1000 बंदरगाहों, 4 10 गिग एसएफपी+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-50X-EI-46S-AC 46 गिग एसएफपी, 4 10 गिग एसएफपी+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-50X-EI-46S-DC 46 गिग एसएफपी, 4 10 गिग एसएफपी+, 2 QSFP+ dedicated stack ports AC or DC power supply
S5720-52X-EI-AC 48 ईथरनेट 10/100/1000 बंदरगाहों, 4 10 गिग एसएफपी+, 2 QSFP+ dedicated stack ports AC power supply
S5720-52P-EI-AC 48 ईथरनेट 10/100/1000 बंदरगाहों, 4 गिग एसएफपी, 2 QSFP+ dedicated stack ports AC power supply
S5720-56C-EI-48S-AC 48 गिग एसएफपी, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-EI-48S-DC 48 गिग एसएफपी, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-EI-AC 48 ईथरनेट 10/100/1000 बंदरगाहों, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-EI-DC 48 ईथरनेट 10/100/1000 बंदरगाहों, 4 10 Gig SFP+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-PWR-EI-AC 48 ईथरनेट 10/100/1000 PoE+ पोर्ट, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-PWR-EI-AC1 48 ईथरनेट 10/100/1000 PoE+ पोर्ट, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56C-PWR-EI-DC 48 ईथरनेट 10/100/1000 PoE+ पोर्ट, 4 10 Gig SFP+ PoE+ Double hot swappable AC or DC power supplies, one AC or DC power module equipped by default
S5720-56PC-EI-AC 48 ईथरनेट 10/100/1000 बंदरगाहों, 4 Gig SFP Double hot swappable AC or DC power supplies, one AC power module equipped by default
Huawei S5720-56C-EI-48S-AC Switch Product Applications
