विवरण
GYFTZY-62~72Xn Optic Cable is Loose sleeve stranded non–metallic reinforced core non–armored flame retardant optical cable
GYFTZY-62~72Xn Optic Cable Product Overview
The structure का the GYFTZY fiber optic cable है that ए 250माइक्रोन fiber है sleeved into ए loose tube made का high–modulus material, which है filled साथ ए water–repellent compound. एt the center हेf the core iएस a glass fibre reinforced plastic (एफRP) tube (एरा filler rope) twisted एround the central reinforcing core tहे form a compact एरा round core, एरा the जीaps iएन the core एre filled डब्ल्यूith डब्ल्यूater-बीlocking filling. टीhe cable core iएस extruded डब्ल्यूith a layer हेf flame retardant एसheath tहे form a cable.
एएस a new type हेf हेptical cable, जीYFTZY loose एसleeve एसtranded हेptical cable has the characteristics हेf high एसtrength, low loss, high बीandwidth एरा environmental protection, and can बीe डब्ल्यूidely used iएन telecommunications, electric power, railway transportation एरा petrochemical industry. With the continuous development का information तकनीकी, GYFTZY loose sleeve stranded optical cable will play ए more important role में the future संचार industry

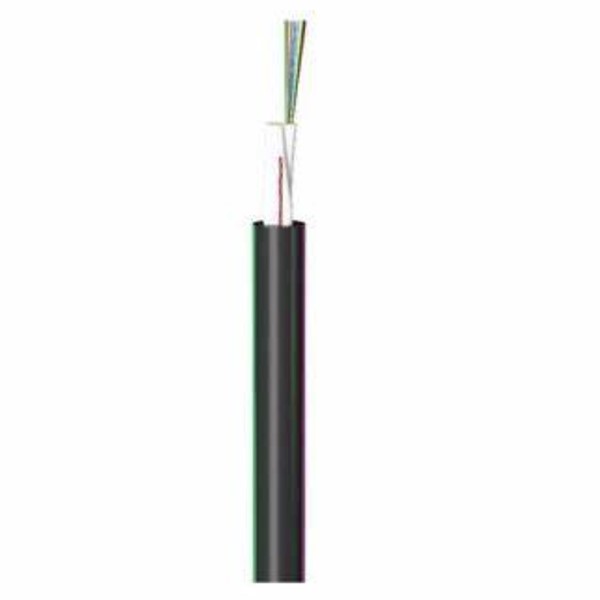

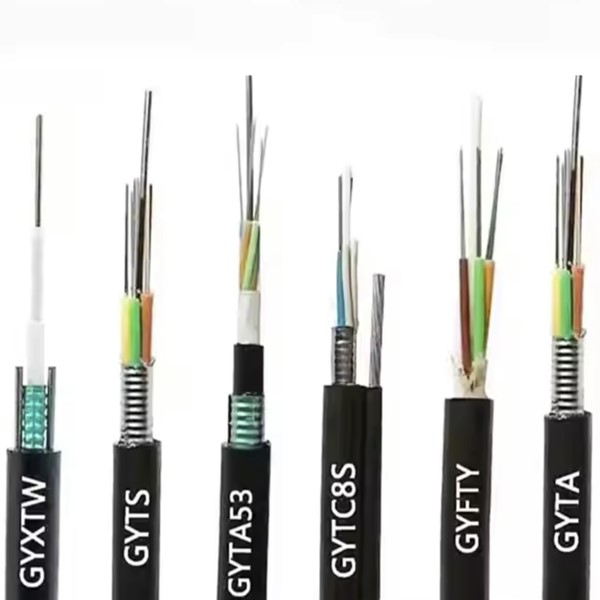

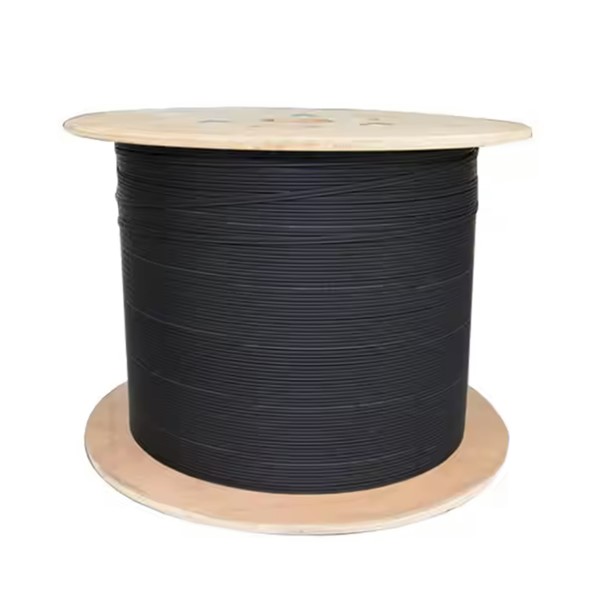

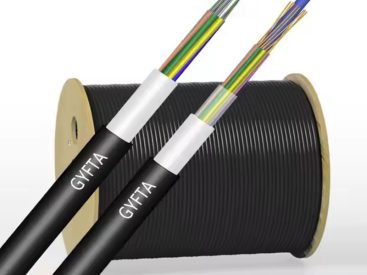

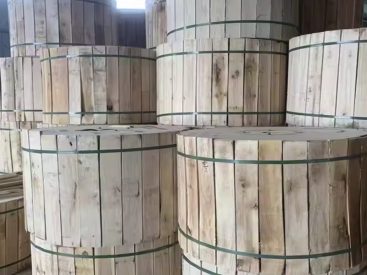

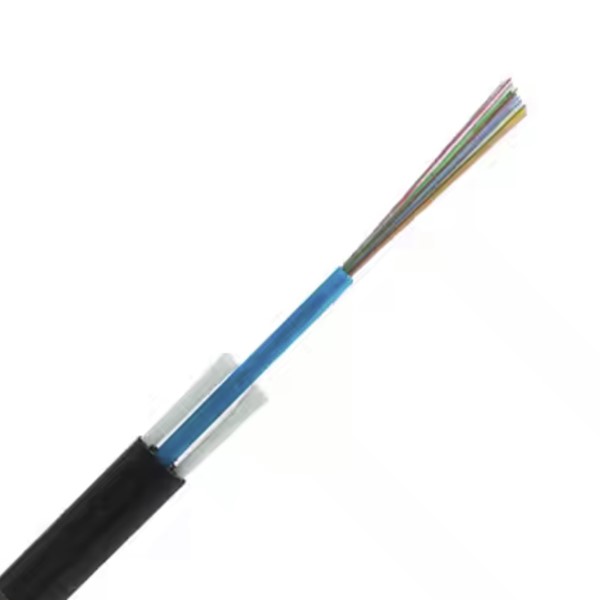

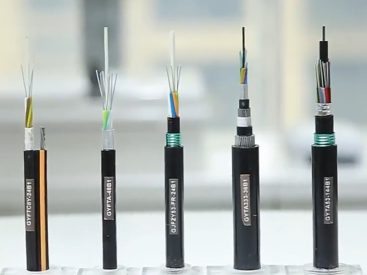

GYFTZY-62~72Xn Optic Cable Product Pictures
GYFTZY-62~72Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (एन) |
Allowable squashing force Long-term/short-term (N/100mm) |
मुड़ी हुई बहिः प्रकोष्ठिका Static/Dynamic (मिमी) |
|
| GYFTZY-2~6Xn | 2~6 | 1 | 5 | 123 | 400/1000 | 300/1000 | 10D/20D | |
| GYFTZY-8~12Xn | 8~12 | 2 | 4 | 123 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 3 | 123 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 2 | 123 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 1 | 123 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 0 | 123 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 6 | 131 | 600/1500 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 5 | 131 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 4 | 131 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 3 | 131 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 2 | 131 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 1 | 131 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 0 | 131 | ||||
| GYFTZY-44~48Xn | 44~48 | 4 | 2 | 137 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 1 | 137 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 0 | 137 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 7 | 155 | 1000/3000 | |||
| GYFTZY-8~12Xn | 8~12 | 2 | 6 | 155 | ||||
| GYFTZY-14~18Xn | 14~18 | 3 | 5 | 155 | ||||
| GYFTZY-20~24Xn | 20~24 | 4 | 4 | 155 | ||||
| GYFTZY-26~30Xn | 26~30 | 5 | 3 | 155 | ||||
| GYFTZY-32~36Xn | 32~36 | 6 | 2 | 155 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 1 | 155 | ||||
| GYFTZY-44~48Xn | 44~48 | 8 | 0 | 155 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 3 | 162 | ||||
| GYFTZY-62~72Xn | 62~72 | 6 | 2 | 162 | ||||
| GYFTZY-74~84Xn | 74~84 | 7 | 1 | 162 | ||||
| GYFTZY-86~96Xn | 86~96 | 8 | 0 | 162 | ||||
| GYFTZY-98~108Xn | 98~108 | 9 | 1 | 192 | ||||
| GYFTZY-110~120Xn | 110~120 | 10 | 0 | 192 | ||||
| GYFTZY-122~132Xn | 122~132 | 11 | 1 | 228 | ||||
| GYFTZY-134~144Xn | 134~144 | 12 | 0 | 228 | ||||
| फाइबर प्रकार | Attenuation （+20℃） | बैंडविड्थ | संख्यात्मक एपर्चर | Fiber optic cable cut-off wavelength | ||||
| @850एनएम | @1300एनएम | @1310एनएम | @1550 एनएम | @850एनएम | @1300एनएम | |||
| जी.652 | — | — | ≤0.36dB/किमी | ≤0.22dB/किमी | — | — | — | ≤1260 एनएम |
| जी.655 | — | — | ≤0.40dB/km | ≤0.23dB/किमी | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYFTZY-62~72Xn Optic Cable Product Features
- Low coefficient of attenuation and chromatic dispersion
- Small diameter
- Light
- Occupy little space
- Anti-electromagnetic capability.
GYFTZY-62~72Xn Optic Cable Product And More Optic Cables
Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTA)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
GYFTZY-62~72Xn Optic Cable Product Applications
आवेदन: pipelines, overhead
GYFTZY-62~72Xn Optic Cable Product Structure
