GYDTA-96Xn Optic Cable is Stranded loose jacket unarmoured fiber optic ribbon cable
GYDTA-96Xn Optic Cable Product Overview
The structure of GYDTA optical cable involves placing fiber ribbons in a loose tube with filling gel (the fiber ribbon can be 4, 6, 8, या 12 कोर); the central core of the cable is a steel wire (may be added with PE cushioning layer), surrounded by a loose tube and filled with filling rope; the gap inside and outside the cable core is filled with cable gel; the cable outer sheath is made of aluminum polyethylene.
The fiber ribbon consists of 4-24 optical fibers arranged in parallel and cured by UV. When using fiber ribbon inside the cable, it is called fiber ribbon cable, commonly known as ribbon cable. Fiber ribbon cable is suitable for segments with large fiber counts in metropolitan area networks and wired access networks.

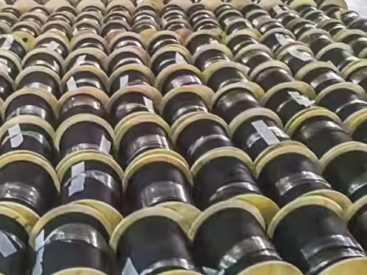

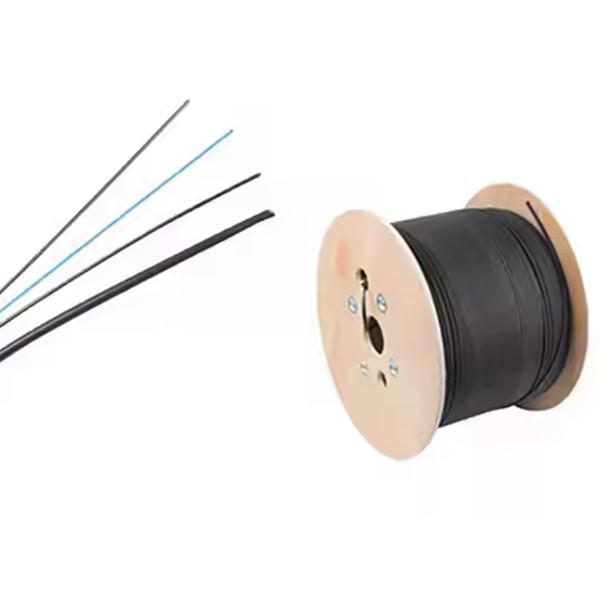

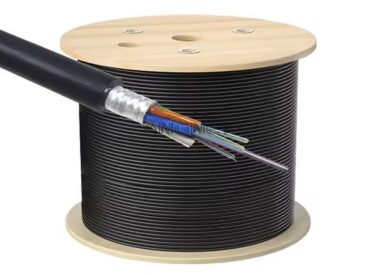

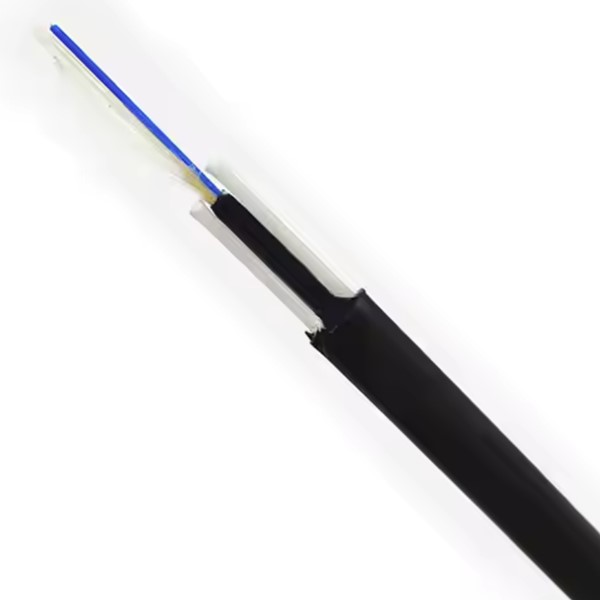

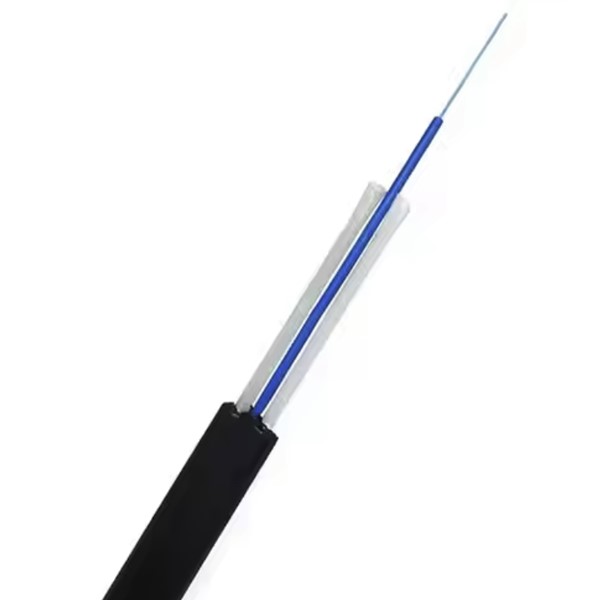

GYDTA-96Xn Optic Cable Product Pictures
GYDTA-96Xn Optic Cable Product Specifications
| Fiber Optic Cable Model (in 2-fiber increments) | Number of fibers | Number of casings | Number of infill ropes | Reference cable weight（kg/km) | Tensile force is allowed Long-term/short-term (एन) |
Allowable squashing force Long-term/short-term (N/100mm) |
मुड़ी हुई बहिः प्रकोष्ठिका Static/Dynamic (मिमी) |
|
| GYDTA-48Xn | 4×12 | 1 | 3 | 265 | 600/1500 | 300/1000 | 10D/20D | |
| GYDTA-96Xn | 8×12 | 2 | 2 | 265 | ||||
| GYDTA-144Xn | 12×12 | 3 | 1 | 265 | ||||
| GYDTA-216Xn | 18×12 | 3 | 1 | 295 | ||||
| GYDTA-288Xn | 24×12 | 4 | 0 | 295 | ||||
| GYDTA-360Xn | 30×12 | 5 | 0 | 295 | ||||
| GYDTA-432Xn | 36×12 | 6 | 0 | 395 | ||||
| फाइबर प्रकार | Attenuation （+20℃） | बैंडविड्थ | संख्यात्मक एपर्चर | Fiber optic cable cut-off wavelength | ||||
| @850एनएम | @1300एनएम | @1310एनएम | @1550 एनएम | @850एनएम | @1300एनएम | |||
| जी.652 | — | — | ≤0.36dB/किमी | ≤0.22dB/किमी | — | — | — | ≤1260 एनएम |
| जी.655 | — | — | ≤0.40dB/km | ≤0.23dB/किमी | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYDTA-96Xn Optic Cable Product Features
●Precise control of the excess length of the optical fiber ensures that the optical cable has good tensile performance and temperature characteristics
●PBT loose tube material has good hydrolysis resistance, and the tube is filled with special grease to protect the optical fiber
●Optical cable has small diameter, high fiber density and light weight
●Smooth outer sheath enables the optical cable to have a smaller coefficient of friction during installation
●PE sheath has good resistance to solar radiation
●The following measures are taken to ensure the waterproof performance of the optical cable: the loose tube is filled with special waterproof compound; the outside of the cable core is filled with water-swellable water-blocking cable paste; the plastic-coated aluminum tape moisture-proof layer
GYDTA-96Xn Optic Cable and More Optic Cables
Central tube type non-metallic non-armoured fiber optic cable (GYFXY)
Central tube unarmoured fiber optic cable (GYXY)
Central Tube Light Armoured Fiber Optic Cable (GYXS/GYXTW)
Loose sleeve stranded light armored fiber strip cable (GYDTS)
Stranded loose jacket unarmoured fiber optic cable (GYDTA)
Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
GYDTA-96Xn Optic Cable Product Applications
आवेदन: pipelines, overhead
GYDTA-96Xn Optic Cable Product Structure
