Huawei AP2051DN is a new generation of smart panel Access Point for the distribution market of small and medium-sized enterprises
Huawei AP2051DN Product Overview
Huawei AP2051DN is a panel-type wireless access point released. The product supports 802.11ac wave2 standard, with built-in smart antenna, and can effectively improve coverage. בנוסף, it supports 2×2MIMO and two spatial streams. The overall rate is 1.267Gbps. Huawei AP2051DN is suitable for hotel rooms , student dormitories, hospital wards, small offices and other rooms are small in size and densely populated.

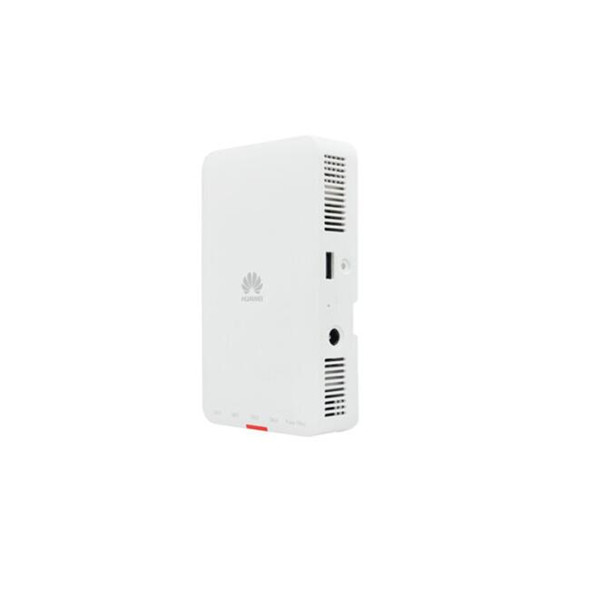

Huawei AP2051DN Product Pictures
Huawei AP2051DN Product Specifications
| מותג | Huawei |
| דֶגֶם | AP2051DN |
| ממדים (H x W x D) | 32.5 מ"מ x 86 מ"מ x 150 מ"מ |
| מימו: זרמים מרחביים | 2 איקס 2:2 |
| פרוטוקולי רדיו | 802.11a/b/g/n/ac/ac wave 2 |
| תעריף מקסימלי | 1.267 Gbit/s |
| טמפרטורת פעולה | 0מעלות צלזיוס עד 40 מעלות צלזיוס |
| סוג אנטנה | Built-in smart antennas |
| מספר מקסימלי של משתמשים | ≤ 256 |
| קלט כוח | זֶרֶם יָשָׁר: 45.6V to 57V |
| ספק כוח PoE: In compliance with IEEE 802.3af/at | |
| בלוטות' מובנה | BLE4.1 (supported by the AP2051DN-E) |
| PoE OUT | Supported by AP2051DN-E: Maximum 13.6W (802.3at-compliant, 48V DC, supported only by GE4) |
| Maximum Transmit Power | 2.4G: 23 dBm (combined power) |
| 5G: 23 dBm (combined power) | |
| הערה: The actual transmit power depends on local laws and regulations. | |
| Interface types | קישור למעלה: 1 x GE |
| קישור למטה: 4 x GE | |
| 2 x Pass-through RJ45 port | |
| 1 x USB port | |
| צריכת חשמל מרבית | AP2051DN: 11.5W (excluding the output power of the USB port) |
| AP2051DN-E: 11.5W (excluding the output power of the USB port and PoE_OUT port) | |
| הערה: צריכת החשמל המרבית בפועל תלויה בחוקים ובתקנות המקומיים |
Huawei AP2051DN Product Features
- Smart Antenna Array Technology
Accurate coverage of the terminal, reduce interference, improve signal quality, and the signal moves with the user
- rich interface
לְסַפֵּק 1 GE uplink port, 4 GE downlink ports, ו 2 RJ45 telephone pass-through ports (compatible with RJ11); provides USB ports, which can be used for external power supply and storage
- ניהול ענן
AP devices and services can be managed and maintained through the HUAWEI CLOUD management platform, saving network operation and maintenance costs
Huawei AP2051DN and More AP2000 Models
AP2051DN
AP2051DN-E
AP2051DN-S
AP2051DN-L-S
Huawei AP2051DN Product Applications
