DAC QSFP-4SFP25G-CU1.5M

תיאור

DAC QSFP-4SFP25G-CU1.5M is 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 1.5-מטר

DAC QSFP-4SFP25G-CU1.5M Product Overview

100G QSFP28 to 4x25G SFP28 DAC breakout high-speed cable is an ideal solution for short-distance transmission (עד 5 מ') in 100G to 25G Ethernet applications, תומך 4 channels of bidirectional transmission to meet the expanding demand for cost-effective data center interconnects. These breakout cables connect to a 100G QSFP port of a switch on one end and to four 25G SFP ports of a switch/server on the other end. We currently offer passive cables in lengths of x=1, 1.5, 2, 2.5, 3 ו 5 מטרים.

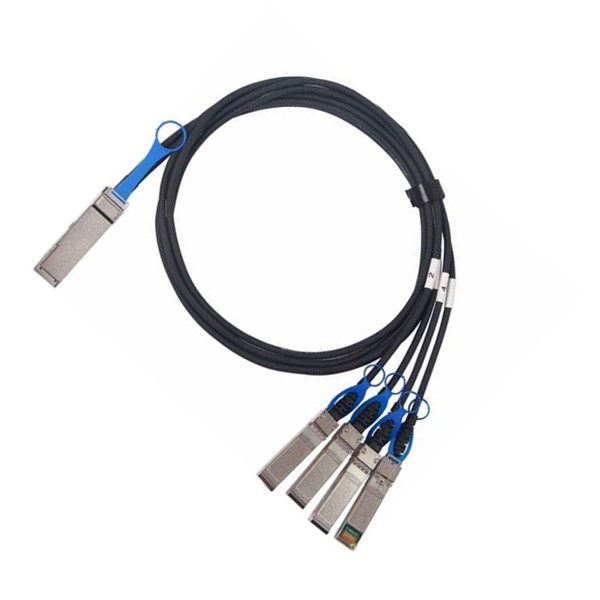

DAC QSFP-4SFP25G-CU1.5M Product Pictures

DAC QSFP-4SFP25G-CU1.5M Product Specifications

DAC QSFP-4SFP25G-CU1.5M Product Features

• Supporting 100Gbps to 4x25Gbps
• 78Gb/s per channel
• High-Density QSFP28 38-PIN and 4xSFP28 20-PIN Connector
• Maximum aggregate data rate: 100Gb/s(4x25Gb/s)
• ספק כוח:+3.3V
• Low Crosstalk
• I2C based two-wire series interface for EEPROM signature which can be customized
• 0 to 70°C case temperature operating range
• Copper link length to 5m
• תואם RoHS-6 (ללא עופרת)
• מארז מתכת עבור EMI נמוך
• Compatible to SFP28 MSA and QSFP28 MSA
• Compatible to SFF-8402 and SFF-8665
• IEEE 802.3bj 100GBASE-CR4 and P802.3by compliant

DAC QSFP-4SFP25G-CU1.5M Product Applications

• 100/25G Ethernet
• Datacom/Telecom Switch & Router connections
• High speed multi-channel parallel data connections
• High performance computing, server and data storage

DAC QSFP-4SFP25G-CU1.5M and More 100G Breakout Cables

100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 1-מטר
100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 1.5-מטר
100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 2-מטר
100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 2.5-מטר
100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 3-מטר
100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 5-מטר

DAC QSFP-4SFP25G-CU1.5M Product Applications
