Description
GYFTZA53-32~36Xn Optic Cable is Loose Tube Layer Stranded Non-metallic Reinforced Core Armored Flame-retardant Optical Cable
GYFTZA53-32~36Xn Optic Cable Product Overview
GYFTZA53 Optic Cable is designed for superior performance and durability in outdoor communication networks. Colored optical fibers are housed in a high-modulus loose tube filled with thixotropic gel, providing excellent sealing and water-blocking protection. At the core, a non-metallic strength member (PRF) offers outstanding tensile strength and structural stability without electromagnetic interference.
The loose tube and filler ropes are stranded around the central core to form a compact, circular cable structure, with the interstices filled with water-blocking gel for enhanced moisture resistance. A coated aluminum tape is longitudinally wrapped and covered with a polyethylene inner sheath, providing an additional layer of protection. The cable is further reinforced with double-sided coated steel tape armor, forming a robust, flame-retardant outer layer to ensure safety and reliability in high-risk environments.
This structure makes GYFTZA53 cable an excellent choice for applications requiring flame resistance, moisture protection, and high mechanical performance in demanding outdoor settings.

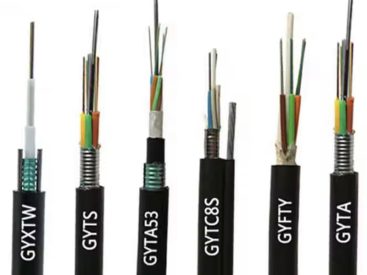

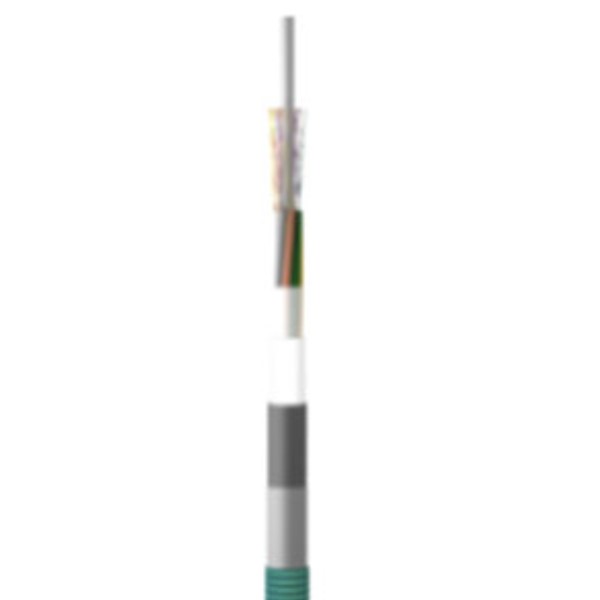

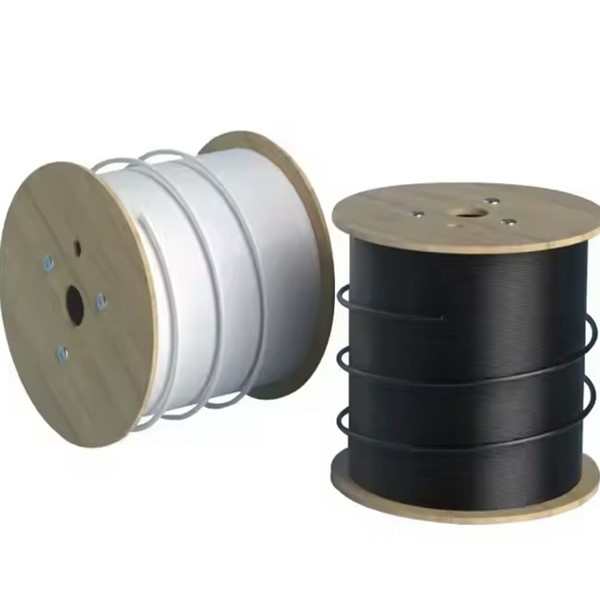

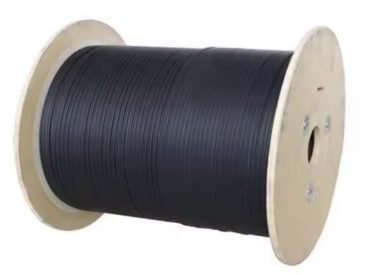

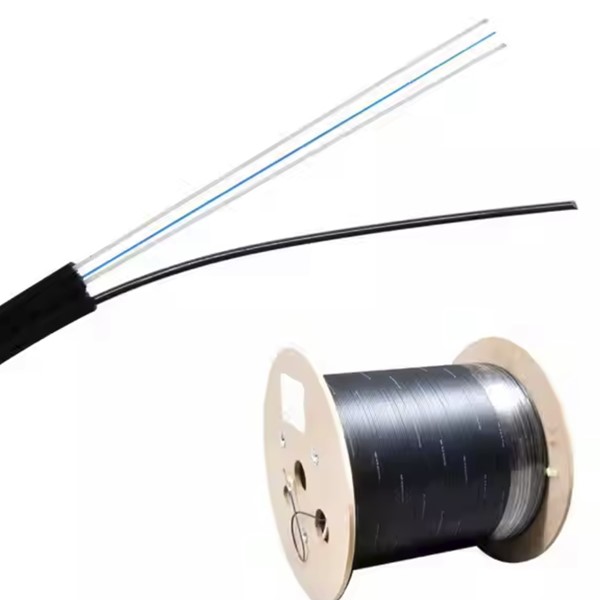

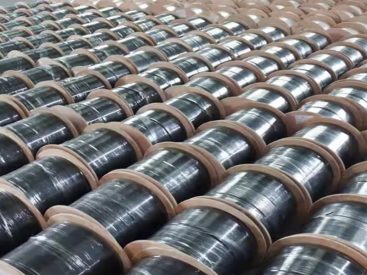

GYFTZA53-32~36Xn Optic Cable Product Pictures
GYFTZA53-32~36Xn Optic Cable Product Specifications
| Modèle de câble à fibre optique (par incréments de 2 fibres) |
Nombre de fibres | Nombre de boîtiers | Number of infill ropes | Reference cable weight （kg/km） | La force de traction est autorisée Long terme/court terme (N) |
Force d'écrasement admissible Long terme/court terme (N/100mm) |
Rayon de courbure Dynamique statique (mm) |
|
| GYFTZA53-2~6Xn | 2~6 | 1 | 7 | 275 | 1000/3000 | 1000/3000 | 12.5J/25D | |
| GYFTZA53-8~12Xn | 8~12 | 2 | 6 | 275 | ||||
| GYFTZA53-14~18Xn | 14~18 | 3 | 5 | 275 | ||||
| GYFTZA53-20~24Xn | 20~24 | 4 | 4 | 275 | ||||
| GYFTZA53-26~30Xn | 26~30 | 5 | 3 | 275 | ||||
| GYFTZA53-32~36Xn | 32~36 | 6 | 2 | 275 | ||||
| GYFTZA53-38~42Xn | 38~42 | 7 | 1 | 275 | ||||
| GYFTZA53-44~48Xn | 44~48 | 8 | 0 | 275 | ||||
| GYFTZA53-50~60Xn | 50~60 | 5 | 3 | 290 | ||||
| GYFTZA53-62~72Xn | 62~72 | 6 | 2 | 290 | ||||
| GYFTZA53-74~84Xn | 74~84 | 7 | 1 | 290 | ||||
| GYFTZA53-86~96Xn | 86~96 | 8 | 0 | 290 | ||||
| GYFTZA53-98~108Xn | 98~108 | 9 | 1 | 327 | ||||
| GYFTZA53-110~120Xn | 110~120 | 10 | 0 | 327 | ||||
| GYFTZA53-122~132Xn | 122~132 | 11 | 1 | 384 | ||||
| GYFTZA53-134~144Xn | 134~144 | 12 | 0 | 384 | ||||
| Type de fibre | Attenuation （+20℃） | Bande passante | Ouverture numérique | Longueur d'onde de coupure du câble à fibre optique | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0,36 dB/km | ≤0,22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0,40 dB/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3,3dB/km | ≤1,2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0,015 s.o. | — |
| 62.5/125µm | ≤3,5dB/km | ≤1,2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0,015 s.o. | — |
GYFTZA53-32~36Xn Optic Cable Product Features
- Constructed from high-modulus material, the loose tube offers excellent resistance to hydrolysis and high mechanical strength, ensuring long-term reliability and durability.
- The loose tube is filled with thixotropic gel, providing essential sealing and water-blocking protection to safeguard the optical fibers from environmental moisture and damage.
- The outer sheath is made of a flame-retardant material, delivering superior fire resistance to meet safety requirements in high-risk environments.
- The central strength member is a non-metallic FRP (Fiber Reinforced Plastic) cœur, offering excellent tensile strength and structural integrity without electromagnetic interference.
- Engineered to perform reliably under mechanical stress and across a wide range of temperatures, making it suitable for various outdoor environments.
- Longitudinally wrapped coated aluminum tape provides effective moisture resistance, enhancing the cable’s durability in wet conditions.
- The cable’s armor features double-sided coated steel tape, offering enhanced protection against moisture ingress and mechanical impacts, ensuring reliability in challenging environments.
GYFTZA53-32~36Xn Optic Cable Product and More Optic Cables
Stranded Flame Retardant Fibre Optic Câble (GYTZS)
Stranded loose jacket nsur-unrmoured flame retardant fiber optic cable (gYTZA)
Stranded jeoose sleeve nsur-metallic reinforced core unrmored fiber optic cable (gYFTA53)
Stranded nsur-metallic reinforcing core plain unrmored fiber optic cable (gYFTY53)
Stranded loose jacket nsur-metallic reinforced core unarmoured fiber optic cable (gYFTA)
Loose sleeve stranded nsur-metallic reinforced core optical cable (gYHTY)
Stranded loose jacket nsur-metallic reinforced core unarmoured fiber optic cable (gYFTY)
Loose sleeve stranded single thin round steel wire unrmored fiber optic cable (gYTA53 33)
Loose Sleeve Stranded R.einforced UNrmoured Fiber Ôptic Cable(gYTA53)
Loose sleeve stranded ordinary unrmored fiber optic cable(gYTY53)
Loose sleeve stranded jeight unrmored fiber optic cable (gYTS)
Stranded loose jacket unarmoured fiber optic câble (AVEC)
GYFTZA53-32~36Xn Optic Cable Product Applications
- Underground Duct Installations:
Suitable for underground ducts, as the water-blocking gel and aluminum tape provide excellent protection against moisture ingress.
- Tunnel and Subway Systems:
Designed for use in tunnels, subways, and confined spaces, ensuring flame retardancy and reliable communication in challenging conditions.
- Coastal and High-Humidity Areas:
Effective in regions prone to heavy rain, high humidity, or coastal environments, with robust moisture-blocking and corrosion-resistant properties.

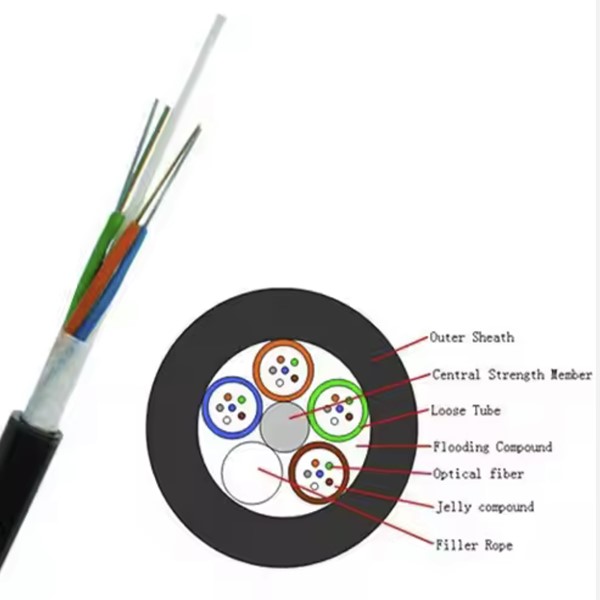

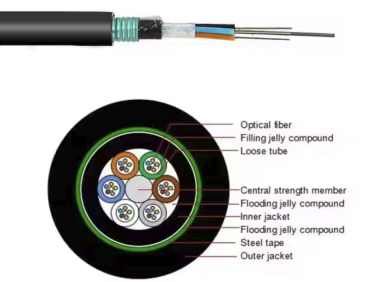

GYFTZA53-32~36Xn Optic Cable Product Structure
