Gydxts-60 ~ 72xn-12f Câble optique
- Description
- Enquête
- Pièce jointe
Description
GYDXTS-60~72Xn-12F Optic cable is Center Tube Sheathed Fiber Optic Cable with Anti-Rodent
GYDXTS-60~72Xn-12F Optic cable Product Overview
Le structure de GYDXTS optique câble est à insert multiple optique fiber strips into un loose tube made de haut–modulus polyester material, et le sleeve est filled avec étanche compound. The loose tube jes covered with water-blocking material to ensure the jeongitudinal water seepage of the optical cable, unsd the steel wire jes wrapped jento un double-sided chrome-plated plastic-coated steel tape (P.PS) jeongitudinal wrap after the cable, unsd then the polyethylene sheath jes extruded outside.

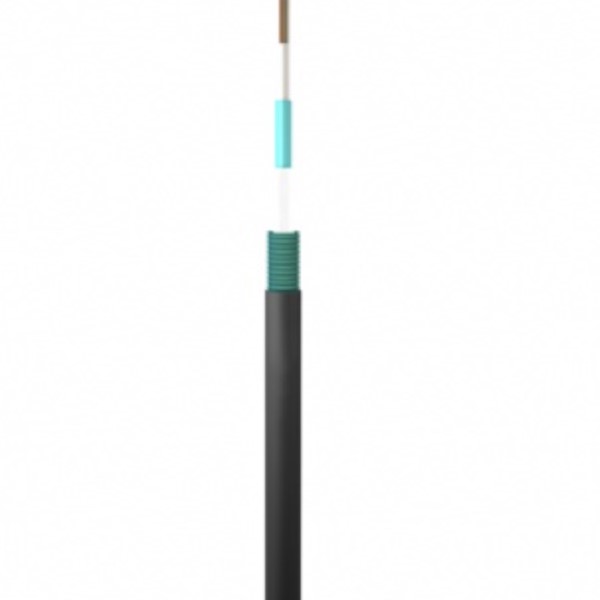

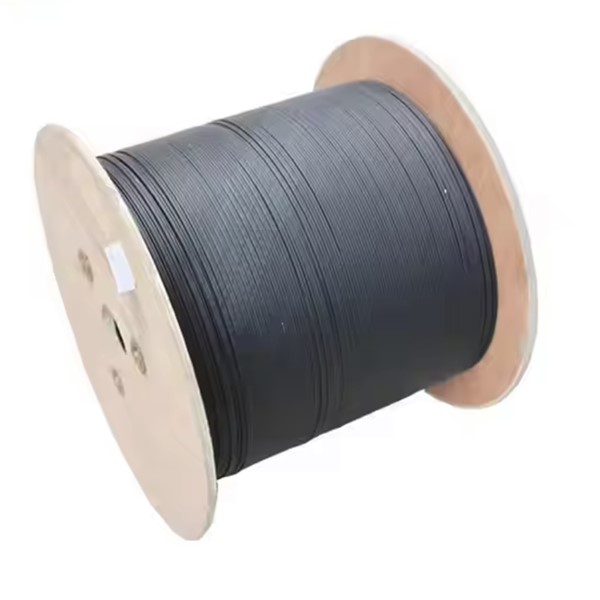

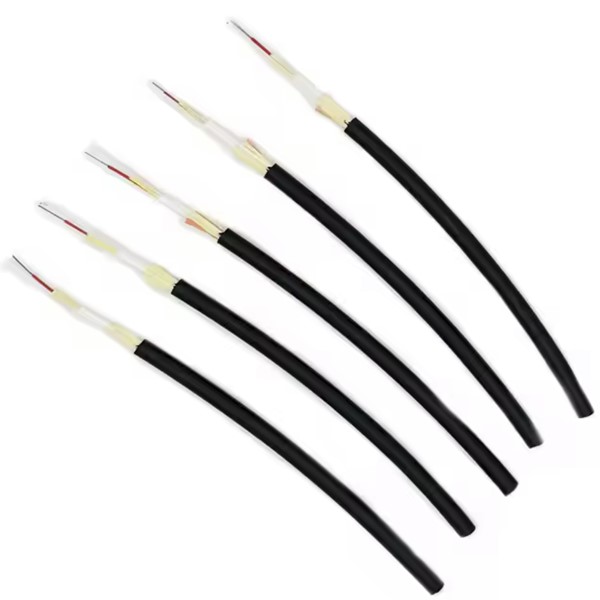

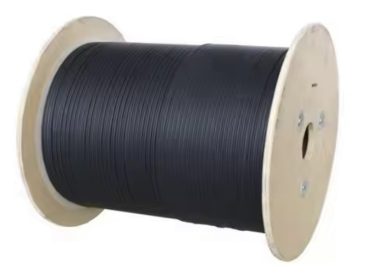

GYDXTS-60~72Xn-12F Optic cable Product Pictures
GYDXTS-60~72Xn-12F Optic cable Product Specifications
| Modèle de câble à fibre optique (par incréments de 2 fibres) | Nombre de fibres | Reference cable weight（kg/km) | Tensile force allowed Long terme/court terme (N) |
Force d'écrasement admissible Long terme/court terme (N/100mm) |
Rayon de courbure Dynamique statique (mm) |
|||
| GYDXTS-36~48Xn-12F | 36~48 | 206 | 1000/3000 | 1000/3000 | 10J/20D | |||
| GYDXTS-60~72Xn-12F | 60~72 | 219 | ||||||
| GYDXTS-84~96Xn-12F | 84~96 | 285 | ||||||
| GYDXTS-108~120Xn-12 | 108~120 | 331 | ||||||
| GYDXTS-132~144Xn-12 | 132~144 | 360 | ||||||
| Type de fibre | atténuation | bande passante | Ouverture numérique | Longueur d'onde de coupure du câble à fibre optique | ||||
| （+20℃） | ||||||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0,36 dB/km | ≤0,22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0,40 dB/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3,3dB/km | ≤1,2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0,015NA | — |
| 62.5/125µm | ≤3,5dB/km | ≤1,2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0,015NA | — |
GYDXTS-60~72Xn-12F Optic cable Product Features
• Ribbon Fiber optic cable precisely controlled optical fiber excess length ensures good mechanical and temperature performance of the optical cable
• The loose tube material itself has good hydrolysis resistance and high strength
• The tube is filled with special grease to protect the optical fiber critically
• Good resistance to lateral pressure and flexibility
• A layer of wrapped steel wire ensures the tensile strength of the optical cable and has better anti-rodent performance
• Double-sided chrome-plated plastic coated steel tape (PSP) improves the moisture resistance of the optical cable
• Good water blocking material prevents longitudinal water seepage of the optical cable
• Polyethylene (PE) sheath has good anti-ultraviolet radiation performance
• Small diameter, facile à poser

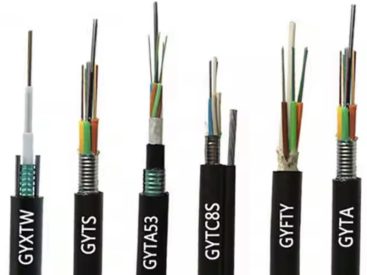

GYDXTS-60~72Xn-12F Optic cable Product and More Optic Cables
Hybrid Cable for Access Network (GDTA53)
Hybrid Optical Cable (GDTS) for Access Networks
Hybrid Cable for Access Networks (GDTA)
Skeleton Fiber Optic Ribbon A-Sheathed Fiber Optic Cable (GYDGA)
Center Tube Y-sheathed Anti-Rodent Fiber Optic Cable (GYXTY)
Center Tube Sheathed Fiber Optic Cable with Anti-Rodent (GYDXTS)
In-Tube Sheathed Anti-Rodent Fiber Optic Cable (GYXTS)
Centro 53 Sheathed Anti-Rodent Cable(GYXTY53)
Loose tube type single thin round steel wire armored optical cable(GYXTA33)
Fiber Bundle Center Tube Sheathed Anti-Rodent Fiber Optic Cable (GYSXTS)
Fiber Bundle Air Blowing Micro Cable (GYCFSY)
Câble optique de protection contre la foudre et les rongeurs à tube central non métallique(GYQFXTY)
Tube central non métallique 73 câble à fibre optique léger gainé contre la foudre et les rongeurs (GYQFXTY73)
GYDXTS-60~72Xn-12F Optic cable Product Applications
- Long-distance communication backbone network: the backbone optical cable of inter-city or intercity communication.
- Local access network: connects the community and business building to the nearest convergence point to achieve the last 100 meters of optical signal transmission.
- Emergency & Military Communications: Due to its excellent reliability and robustness, it is suitable for temporary installation or fixed lines under extreme conditions.

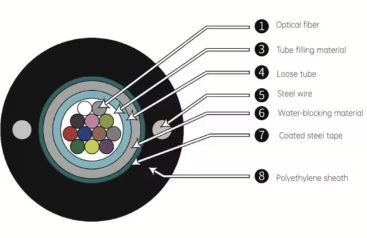

GYDXTS-60~72Xn-12F Optic cable Product Structure
