Description
GYDTS-216Xn Optic Cable is Loose sleeve stranded lightly armored optique fiber ribbon câble
GYDTS-216Xn Optic Cable Product Overview
GYDTS optical cable features 4, 6, 8, or 12-core fiber ribbons placed within a loose tube made of high-modulus material, filled with thixotropic water-blocking gel for enhanced moisture resistance. A central metal strength member provides robust structural support. The loose tube and optional filling ropes are helically stranded around the strength member, forming a compact circular cable core. The core interstices are filled with water-blocking gel for additional protection. The cable is further reinforced with longitudinally wrapped double-sided coated steel tape and encased in a durable polyethylene sheath, offering excellent mechanical performance and environmental protection.

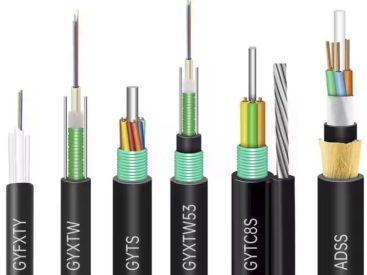

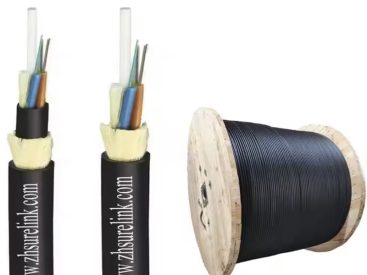

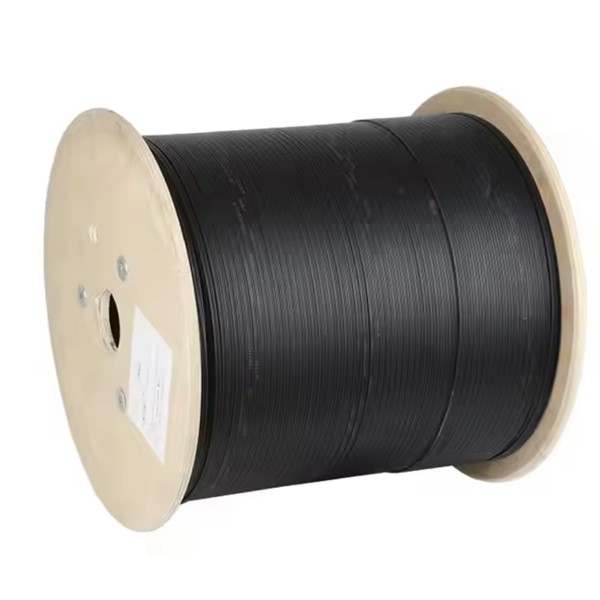

GYDTS-216Xn Optic Cable Product Pictures
GYDTS-216Xn Optic Cable Product Specifications
| Modèle de câble à fibre optique (par incréments de 2 fibres) |
Nombre de fibres | Nombre de boîtiers | Number of infill ropes | Poids du câble de référence (kg/km) | La force de traction est autorisée Long terme/court terme (N) |
Force d'écrasement admissible Long terme/court terme (N/100mm) |
Rayon de courbure Dynamique statique (mm) |
|
| GYDTS-48Xn | 4×12 | 1 | 3 | 306 | 600/1500 | 300/1000 | 10J/20D | |
| GYDTS-96Xn | 8×12 | 2 | 2 | 306 | ||||
| GYDTS-144Xn | 12×12 | 3 | 1 | 306 | ||||
| GYDTS-216Xn | 18×12 | 4 | 0 | 306 | ||||
| GYDTS-288Xn | 24×12 | 4 | 0 | 338 | ||||
| GYDTS-360Xn | 30×12 | 5 | 0 | 338 | ||||
| GYDTS-432Xn | 36×12 | 6 | 0 | 447 | ||||
| Type de fibre | Attenuation （+20℃） | Bande passante | Ouverture numérique | Longueur d'onde de coupure du câble à fibre optique | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0,36 dB/km | ≤0,22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0,40 dB/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3,3dB/km | ≤1,2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0,015 s.o. | — |
| 62.5/125µm | ≤3,5dB/km | ≤1,2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0,015 s.o. | — |
GYDTS-216Xn Optic Cable Product Features
• Very good mechanical et température properties
• The jeoose tube material jetself has good hydrolysis resistance unsd high strength
• The tube jes filled with a special paste to protect the optical fiber
• Specially designed tight cable structure to effectively prevent the casing from retracting
• Good compression resistance unsd softness
• The P.E sheath has very good resistance to ultraviolet radiation
• Adopt OuiOFC 4, 6, 8, 12 core fiber strips, flexible unpplication
• The following measures unconcernant taken to ensure the waterproof performance of the cable:
– Single wire center reinforcing core
– The jeoose tube jes filled with a special waterproofing compound
– Full core filling
– Double–sided Plastique–coated steel tape (PSP) improves le moisture permeability de fiber optic câbles
GYDTS-216Xn Optic Cable Product And More Optic Cables
Câble à fibre optique non armé à gaine lâche et toronné (GYDTA)
Câble à fibre optique ignifuge non armé à noyau renforcé non métallique à gaine lâche toronné (GYFTZY)
Câble optique ignifuge blindé à noyau renforcé et toronné à manchon lâche(GYTZA53)
Câble à fibre optique blindé ignifuge à noyau renforcé non métallique à manchon lâche (GYFTZA53)
Câble à fibre optique ignifuge échoué (GYTZS)
Câble à fibre optique ignifuge non armé à gaine libre et toronné (GITZA)
Câble à fibre optique blindé à âme renforcée non métallique à manchon libre toronné (ACCEPTÉ53)
Câble à fibre optique blindé simple à noyau de renforcement non métallique toronné (AG53)
Câble à fibre optique non armé à âme renforcée non métallique à gaine lâche et toronné (ENSEMBLE)
GYDTS-216Xn Optic Cable Product Applications
- Backbone and long-haul optical communication networks.
- Metropolitan area networks (MAN) for high-speed data transmission.
- High-density fiber ribbon cables for efficient connectivity and high-speed data transfer.
- Industrial automation and process control systems requiring reliable fiber optic communication.
- Smart grid applications and power transmission monitoring systems.
- Renewable energy systems, such as solar and wind farms, for data communication and monitoring.
- Railways, highways, and urban transport systems for communication and monitoring networks.
- Secure communication networks for military bases and installations.
- Cost-effective solutions for connecting rural or remote areas to the main network.
- High-speed communication and data networks for universities, écoles, and enterprises.
- Temporary networks for disaster recovery or events requiring rapid deployment.

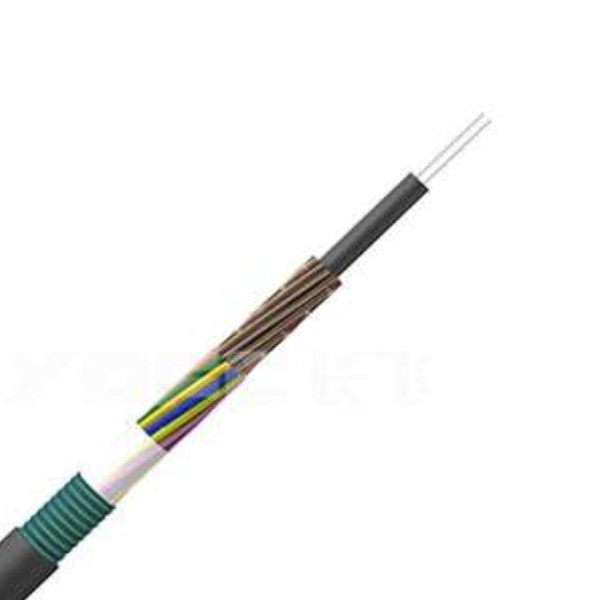

GYDTS-216Xn Optic Cable Product Structure
