شرح
Mini Figure 8 Cable is Stainless Steel Tube Optical Cable Single mode, چند حالته, maximum of 24 cores F-SST LSZH, پلی اتیلن, or PA jacketing, anti-ultraviolet radiation
Mini Figure 8 Cable Product Overview
It is an optical fiber unit, and the maximum number of cores is 24 هسته ها, according to different applications, the sheath is made of LS ZH PE or PA. the Mini F-SST features small size, light weight, good mechanical properties, and can withstand strong side pressure, wide temperature range. This fiber cable is suitable for indoor wiring, خط لوله, ground grooved laying.
A fiber optic cable is a communication cable consisting of two or more glass or plastic fiber cores that are located within a protective cladding and covered by a plastic PVC outer sleeve. Signal transmission along internal optical fibers generally uses infrared.
Optical fiber communication is one of the important ways of modern information transmission. It has the advantages of large capacity, long relay distance, good confidentiality, free from electromagnetic interference and saving copper.
A dielectric waveguide that transmits light waves. An optical fiber is a fiber composed of a double-layer transparent medium formed into concentric circles. The most widely used dielectric material is quartz glass (SiO2). The inner medium is called the core, and its refractive index is higher than that of the outer medium (called the cladding). The refractive index of the core or cladding is adjusted by doping the quartz glass with impurities such as germanium, phosphorus, fluorine, boron, و غیره. The transmission wavelength of optical fiber for communication is mainly 0.8~1.7 micron near-infrared light. The core diameter of the fiber varies depending on the type, typically a few microns to 100 میکرون, with most outer diameters around 125 میکرون. It has a plastic cladding on the outside. Fiber optic cables are made of a combination of single or multiple fibers, reinforced and protected. Fiber optic cables can be used in a variety of environments. The manufacturing method of optical cables is similar to that of cables.

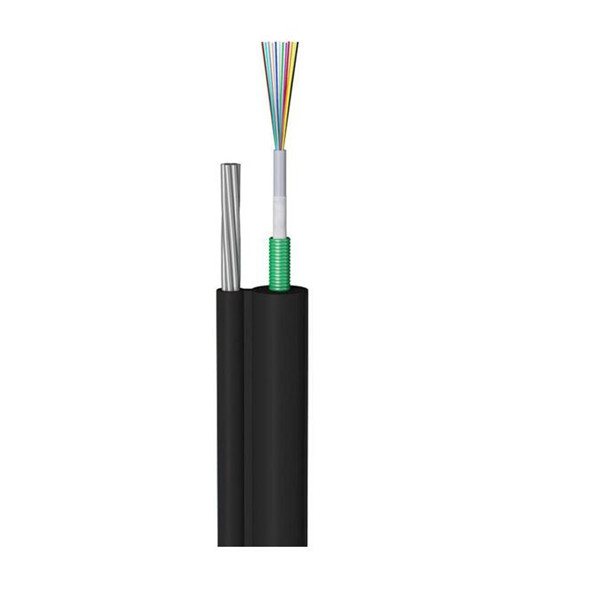

Mini Figure 8 تصاویر محصول کابلی
Mini Figure 8 مشخصات محصول کابلی
| شماره هسته فیبر | structure size | Cable weight | Allowable tensile force (ن) | Allowing crush force (ن) | ||
| Pipe diameter | قطر سیم | Cable diameter | کیلوگرم / کیلومتر | بلند مدت / کوتاه مدت | بلند مدت / کوتاه مدت | |
| 0:00:00 | 8:24:00 | 7:12:00 | 22:48:00 | 9:36:00 | 500/1000 | 2000/4000 |
| 0:00:00 | 12:00:00 | 10:48:00 | 14:24:00 | 7:12:00 | 1000/2000 | 2000/4000 |
| 0:00:00 | 19:12:00 | 10:48:00 | 21:36:00 | 4:48:00 | 1000/2000 | 2000/4000 |
| 0:00:00 | 0:00:00 | 10:48:00 | 2:24:00 | 4:48:00 | 1000/2000 | 2000/4000 |
| 0:00:00 | 9:36:00 | 12:00:00 | 0:00:00 | 2:24:00 | 1000/2000 | 2000/4000 |
Mini Figure 8 ویژگی های محصول کابلی
- Singlemode or multimode fiber, تا 24 هسته ها
- Stainless steel loose tube, longitudinal water barrier
- LS ZH, PE or PA sheath, UV radiation
- اندازه کوچک, light weight, good mechanical properties, can withstand strong side pressure, convenient construction.
- Waterproof, moisture-proof, rat-bite-proof, no rust. Resistant to weak acid, weak alkali and salt corrosion.
- Good temperature performance, high cold resistance, high temperature resistance. Non-toxic, flame retardant, fire resistant.
Mini Figure 8 برنامه های کاربردی محصول کابل
- Indoor wiring, plumbing.
- Ground grooving, temperature measurement cable light unit.
- Fire temperature measurement.

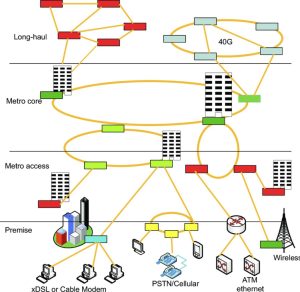

Mini Figure 8 Cable Product Topology
