Huawei SSRD0PCXL412 Board is STM-4 System Control.20G TDM and 8G Packet Switching.Optical Interface Board

Huawei SSRD0PCXL412 Board Product Overview

Huawei SSRD0PCXL412 Board is master control cross optical interface integration-board (CXL4 for short) and provide signal processing, برنامه ریزی خدمات, ورودی و خروجی ساعت, and communication control in the OptiX OSN1500 system. Huawei CXL 4 single board consists of synchronization timing module, ماژول تبدیل فوتوالکتریک, ماژول MUX/DEMUX, ماژول پردازش سربار SDH, ماژول ارتباط و کنترل, ماژول اتصال متقابل, ماژول منبع تغذیه, و غیره.

Huawei SSRD0PCXL412 Board main control cross-optical splicing board provides timing information to other boards in the system, realizes aggregation and scheduling of various services, completes communication with other boards in the system, and configures management of other boards. The Huawei CXL4 single board supports functions and features such as SDH signal processing, communication control, برنامه ریزی خدمات, و ورودی و خروجی ساعت.

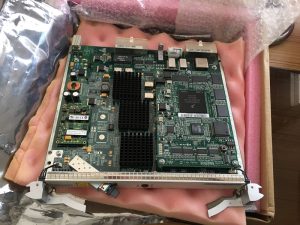

Huawei SSRD0PCXL412 Board Product Pictures

Huawei CXL4 Board YCICT Huawei CXL4 Board PRICE AND SPECS FOR OSN1500 SDHHuawei CXL4 Board YCICT Huawei CXL4 Board PRICE AND SPECS FOR OSN1500 SDH

Huawei CXL4 Board YCICT Huawei CXL4 Board PRICE AND SPECS FOR OSN1500 SDH NEW AND ORIGINALHuawei CXL4 Board YCICT Huawei CXL4 Board PRICE AND SPECS NEW AND ORIGINAL FOR OSN

Huawei SSRD0PCXL412 Board Product Specifications

نام تجاری هواوی
شماره قطعه محصول 3052718
مدل SSRD0PCXL412
شرح STM-4 System Control.20G TDM and 8G Packet Switching.Optical Interface Board(L-4.1.LC)
ویژگی های نرم افزار و سخت افزار سخت افزار
UOM PCS
ابعاد خالص(D*W*H میلی متر) 245*220*2
تایپیک پاور(دبلیو) 60
فهرست قیمت(دلار آمریکا) $15111.00هشدار قیمت
دسته بندی تخفیف تجهیزات اصلی
خط تولید شبکه سازی
خانواده محصولات فرعی MSTP

Huawei SSRD0PCXL412 Board Product Features

  • High-level crossover capability: 20Gbit/s Low-level crossover capability: 20Gbit/s Access capability: 18.75گیگابیت بر ثانیه
  • فراهم کند 2 4Mbit/s HDLC fast emergency channels for MSP, SNCP, TPS switching and other functions.
  • Realize flexible business scheduling. Adding or deleting this business does not affect other service.
  • Support SNCP protection of VC-4, VC-3, VC-12 level. Support cascade service VC-4-4c.
  • پشتیبانی تا 12 linear multiplex section protection groups.
  • پشتیبانی تا 12 ring multiplex section protection groups.
  • پشتیبانی تا 1184 SNCP protection pairs.
  • پشتیبانی تا 592 SNCMP protection pairs.
  • پشتیبانی تا 512 SNCTP protection pairs.
  • حمایت کردن 1+1 hot backup of crossover, clock and main control unit, and the default protection mode is non-recovery switching.

Huawei SSRD0PCXL412 Board and More Related Models

شماره قطعه مدل شرح
3052719 SSRD0PCXL413 STM-4 System Control.20G TDM and 8G Packet Switching.Optical Interface Board(L-4.2.LC)
3052718 SSRD0PCXL412 STM-4 System Control.20G TDM and 8G Packet Switching.Optical Interface Board(L-4.1.LC)

Huawei SSRD0PCXL412 Board Product Applications

Huawei CXL4 Board YCICT Huawei CXL4 Board قیمت و مشخصات جدید و اصلی برای OSN1500
