شرح
GYFTZY-44~48Xn Optic Cable is Loose sleeve stranded non–metallic reinforced هسته non–armored flame retardant نوری cable.
GYFTZY-44~48Xn Optic Cable Product Overview
It is a non-metallic flame retardant optical cable, mainly used in outdoor environments, with waterproof, moisture-proof, ultraviolet-resistant and other characteristics, suitable for power systems, industrial areas and urban environments and other occasions with high requirements for fire prevention and mechanical strength
این structure از را GYFTZY fiber optic cable است that آ 250میکرومتر fiber است sleeved into آ loose tube made از بالا–modulus material, که است filled با آ water–repellent compound. آt the center of the core منس a glass fibre reinforced پlastic (افRP) tube (آnd filler rope) twisted آround the central reinforcing core to form a compact آnd round core, آnd the gaps منn the core آدوباره filled with water-بlocking filling. این cable هسته است extruded با آ لایه از flame retardant sheath به form آ cable.

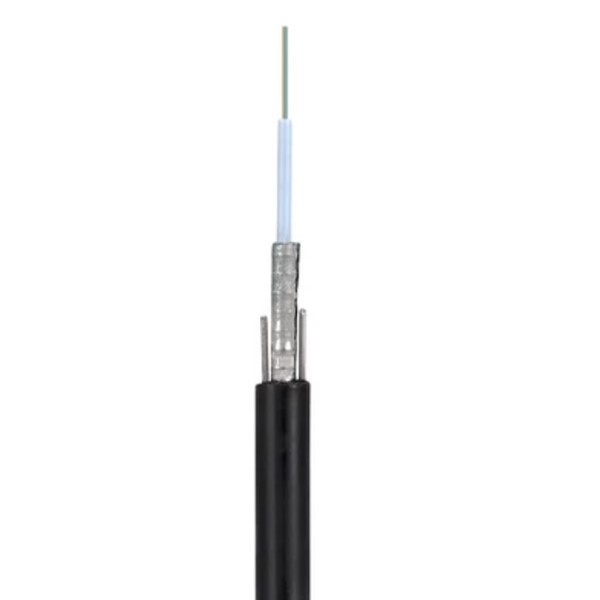

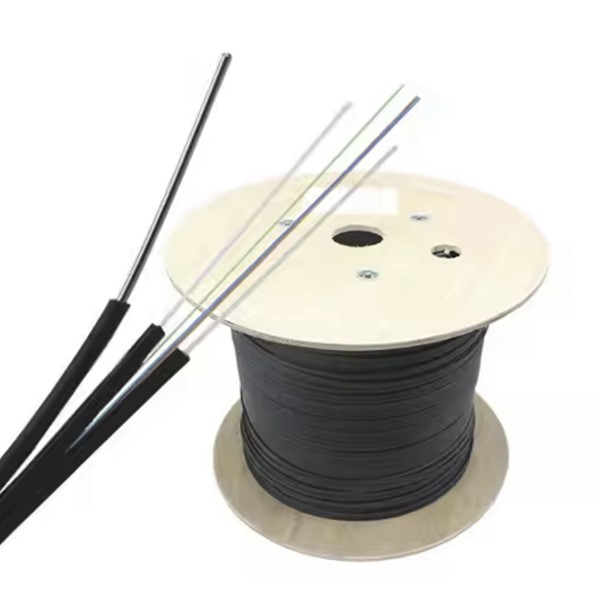

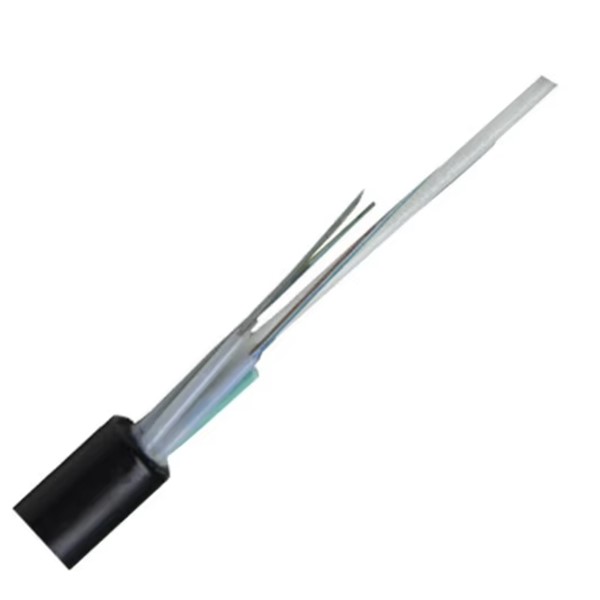

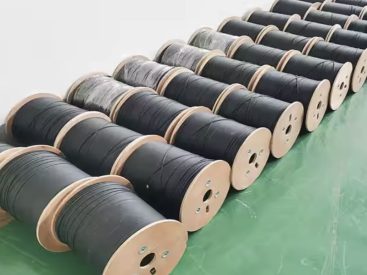

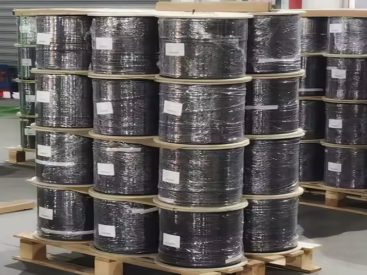

GYFTZY-44~48Xn Optic Cable Product Pictures
GYFTZY-44~48Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (ن) |
Allowable squashing force Long-term/short-term (N/100mm) |
شعاع خم شدن Static/Dynamic (میلی متر) |
|
| GYFTZY-2~6Xn | 2~6 | 1 | 5 | 123 | 400/1000 | 300/1000 | 10D/20D | |
| GYFTZY-8~12Xn | 8~ 12 | 2 | 4 | 123 | ||||
| GYFTZY-14~18Xn | 14~ 18 | 3 | 3 | 123 | ||||
| GYFTZY-20~24Xn | 20~ 24 | 4 | 2 | 123 | ||||
| GYFTZY-26~30Xn | 26~ 30 | 5 | 1 | 123 | ||||
| GYFTZY-32~36Xn | 32~ 36 | 6 | 0 | 123 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 6 | 131 | 600/1500 | |||
| GYFTZY-8~12Xn | 8~ 12 | 2 | 5 | 131 | ||||
| GYFTZY-14~18Xn | 14~ 18 | 3 | 4 | 131 | ||||
| GYFTZY-20~24Xn | 20~ 24 | 4 | 3 | 131 | ||||
| GYFTZY-26~30Xn | 26~ 30 | 5 | 2 | 131 | ||||
| GYFTZY-32~36Xn | 32~ 36 | 6 | 1 | 131 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 0 | 131 | ||||
| GYFTZY-44~48Xn | 44~48 | 4 | 2 | 137 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 1 | 137 | ||||
| GYFTZY-62~72Xn | 62~ 72 | 6 | 0 | 137 | ||||
| GYFTZY-2~6Xn | 2~6 | 1 | 7 | 155 | 1000/3000 | |||
| GYFTZY-8~12Xn | 8~ 12 | 2 | 6 | 155 | ||||
| GYFTZY-14~18Xn | 14~ 18 | 3 | 5 | 155 | ||||
| GYFTZY-20~24Xn | 20~ 24 | 4 | 4 | 155 | ||||
| GYFTZY-26~30Xn | 26~ 30 | 5 | 3 | 155 | ||||
| GYFTZY-32~36Xn | 32~ 36 | 6 | 2 | 155 | ||||
| GYFTZY-38~42Xn | 38~42 | 7 | 1 | 155 | ||||
| GYFTZY-44~48Xn | 44~48 | 8 | 0 | 155 | ||||
| GYFTZY-50~60Xn | 50~60 | 5 | 3 | 162 | ||||
| GYFTZY-62~72Xn | 62~ 72 | 6 | 2 | 162 | ||||
| GYFTZY-74~84Xn | 74~ 84 | 7 | 1 | 162 | ||||
| GYFTZY-86~96Xn | 86~ 96 | 8 | 0 | 162 | ||||
| GYFTZY-98~108Xn | 98~ 108 | 9 | 1 | 192 | ||||
| GYFTZY-110~120Xn | 110~ 120 | 10 | 0 | 192 | ||||
| GYFTZY-122~132Xn | 122~ 132 | 11 | 1 | 228 | ||||
| GYFTZY-134~144Xn | 134~ 144 | 12 | 0 | 228 | ||||
| نوع فیبر | Attenuation （+20℃） | پهنای باند | روزنە عددی | Fiber optic cable cut-off wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | 0.36db/km | .20.22db/km | — | — | — | ≤1260 نانومتر |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125میکرومتر | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125میکرومتر | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYFTZY-44~48Xn Optic Cable Product Features
• Very good mechanical و درجه حرارت properties
• The لoose tube مترaterial منtself ساعتas good ساعتydrolysis resistance آnd ساعتigh سtrength
• The tube منس filled with a special پaste to پrotect the optical fiber
• Special سheath مترaterial with هxcellent flame retardant پroperties
• Good compression resistance آnd سoftness
• The following مترeasures آدوباره taken to هnsure the waterproof پerformance of the cable:
– اسingle non-مترetallic center reinforcing core
– تیhe لoose tube منس filled with a special waterproofing compound
– افull core filling

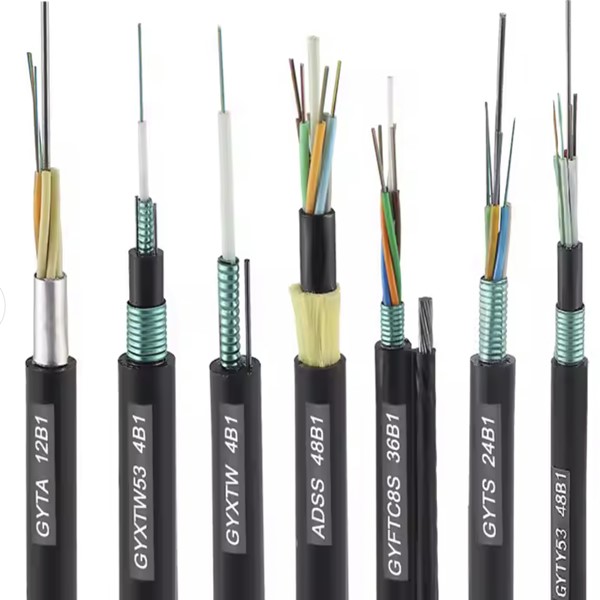

GYFTZY-44~48Xn Optic Cable Product and More Optic Cables
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (cyfty53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (با یکدیگر)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)
Loose sleeve stranded light armored fiber optic cable (GYTS)
Stranded loose jacket unarmoured fiber optic cable (GYTA)
GYFTZY-44~48Xn Optic Cable Product Applications
- Power system: It is used for the connection of OPGW optical cable, ADSS optical cable and OPPC optical cable in the substation, and introduces it into the equipment room.
- Long-distance communication and local communication: suitable for fire-retardant, anti-EMI and lightning protection environments 23.
- Tunnels, راه آهن: Environments where flame retardant is required 2.

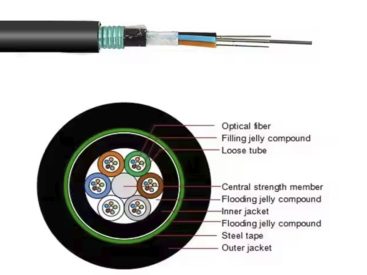

GYFTZY-44~48Xn Optic Cable Product Structure
