SKU: GYFTZY-110~120Xn Optic Cable دسته بندی: برچسب ها: ,

شرح

GYFTZY-110~120Xn Optic Cable is Loose sleeve stranded non–metallic reinforced هسته non–armored flame retardant نوری cable. It is suitable for overhead, pipeline laying, suitable for power systems, industrial areas and urban environments and other occasions with high requirements for fire protection and mechanical strength 1

GYFTZY-110~120Xn Optic Cable Product Overview

The structure of the GYFTZY fiber optic cable is that a 250μm fiber is sleeved into a loose tube made of high-modulus material, which is filled with a water-repellent compound. At the center of the core is a glass fibre reinforced plastic (FRP) tube (and filler rope) twisted around the central reinforcing core to form a compact and round core, and the gaps in the core are filled with water-blocking filling. The cable core is extruded with a layer of flame retardant sheath to form a cable.
As a new type of optical cable, GYFTZY loose sleeve stranded optical cable has the characteristics of high strength, low loss, high bandwidth and environmental protection, and can be widely used in telecommunications, electric power, railway transportation and petrochemical industry. With the continuous development of information technology, GYFTZY loose sleeve stranded optical cable will play a more important role in the future communication industry

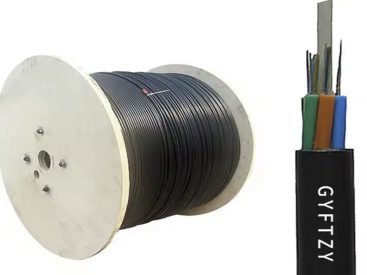

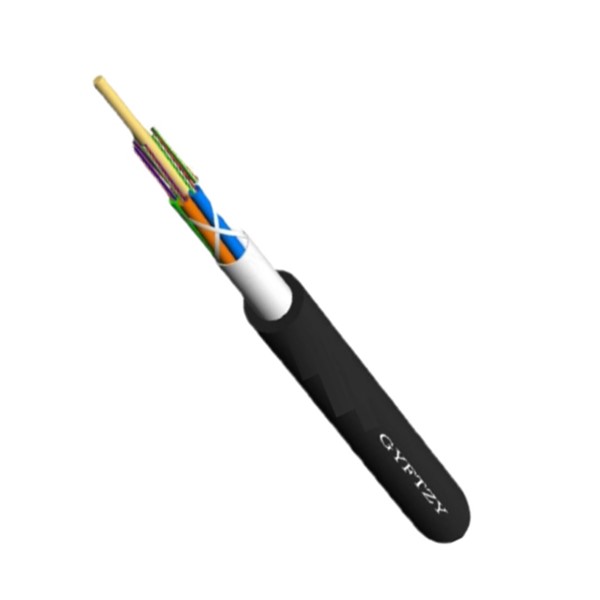

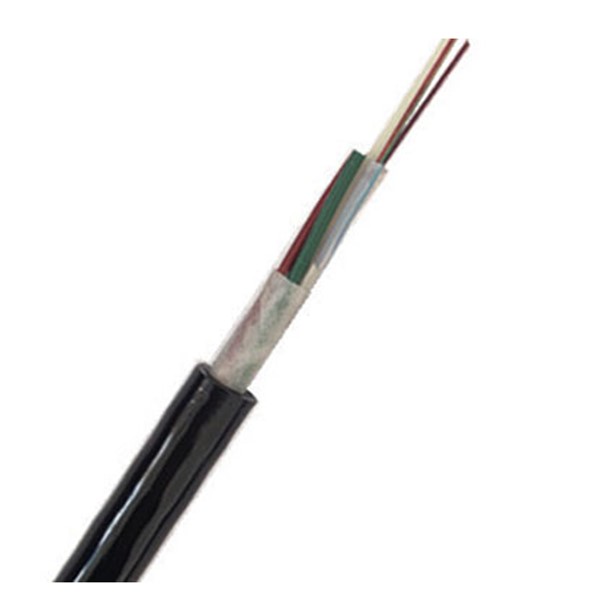

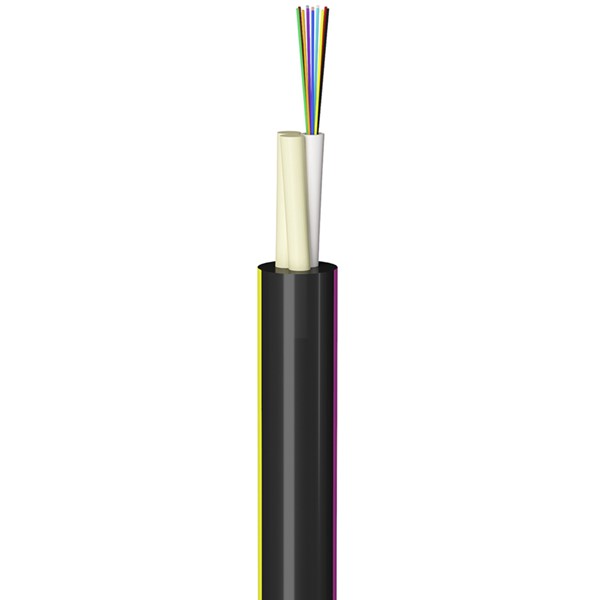

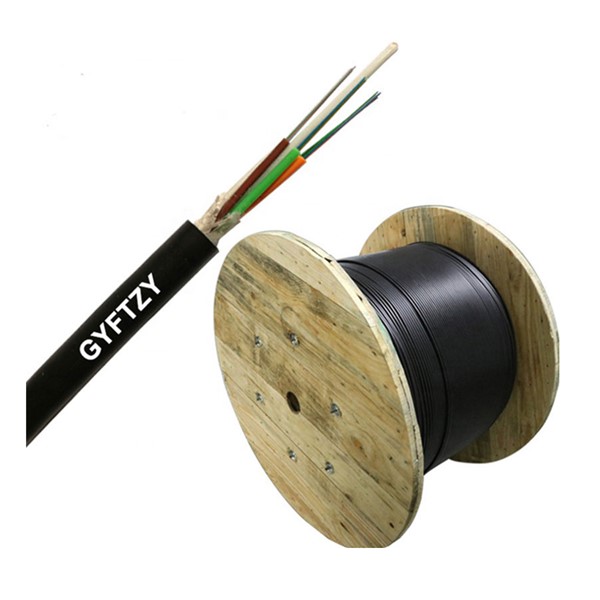

GYFTZY-110~120Xn Optic Cable Product Pictures

GYFTZY-110~120Xn Optic CableGYFTZY-110~120Xn Optic Cable price ycict

GYFTZY-110~120Xn Optic Cable specs ycictGYFTZY-110~120Xn Optic Cable price good price ycict

GYFTZY-110~120Xn Optic Cable Product Specifications

Fiber optic cable model
(in 2-fiber increments)		 Number of fibers Number of casings Number of infill ropes Reference cable weight (kg/km) Tensile force is allowed
Long-term/short-term
(ن)		 Allowable squashing force
Long-term/short-term
(N/100mm)		 شعاع خم شدن
Static/Dynamic
(میلی متر)
GYFTZY-2~6Xn 2~6 1 5 123 400/1000 300/1000 10D/20D
GYFTZY-8~12Xn 8~ 12 2 4 123
GYFTZY-14~18Xn 14~ 18 3 3 123
GYFTZY-20~24Xn 20~ 24 4 2 123
GYFTZY-26~30Xn 26~ 30 5 1 123
GYFTZY-32~36Xn 32~ 36 6 0 123
GYFTZY-2~6Xn 2~6 1 6 131 600/1500
GYFTZY-8~12Xn 8~ 12 2 5 131
GYFTZY-14~18Xn 14~ 18 3 4 131
GYFTZY-20~24Xn 20~ 24 4 3 131
GYFTZY-26~30Xn 26~ 30 5 2 131
GYFTZY-32~36Xn 32~ 36 6 1 131
GYFTZY-38~42Xn 38~42 7 0 131
GYFTZY-44~48Xn 44~48 4 2 137
GYFTZY-50~60Xn 50~60 5 1 137
GYFTZY-62~72Xn 62~ 72 6 0 137
GYFTZY-2~6Xn 2~6 1 7 155 1000/3000
GYFTZY-8~12Xn 8~ 12 2 6 155
GYFTZY-14~18Xn 14~ 18 3 5 155
GYFTZY-20~24Xn 20~ 24 4 4 155
GYFTZY-26~30Xn 26~ 30 5 3 155
GYFTZY-32~36Xn 32~ 36 6 2 155
GYFTZY-38~42Xn 38~42 7 1 155
GYFTZY-44~48Xn 44~48 8 0 155
GYFTZY-50~60Xn 50~60 5 3 162
GYFTZY-62~72Xn 62~ 72 6 2 162
GYFTZY-74~84Xn 74~ 84 7 1 162
GYFTZY-86~96Xn 86~ 96 8 0 162
GYFTZY-98~108Xn 98~ 108 9 1 192
GYFTZY-110~120Xn 110~ 120 10 0 192
GYFTZY-122~132Xn 122~ 132 11 1 228
GYFTZY-134~144Xn 134~ 144 12 0 228
نوع فیبر Attenuation （+20℃） پهنای باند روزنە عددی Fiber optic cable cut-off wavelength
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 — — 0.36db/km .20.22db/km — — — ≤1260 نانومتر
G.655 — — ≤0.40dB/km ≤0.23dB/km — — — ≤1450nm
50/125میکرومتر ≤3.3dB/km ≤1.2dB/km — — ≥500MHz·km ≥500MHz·km 0.200±0.015 NA —
62.5/125میکرومتر ≤3.5dB/km ≤1.2dB/km — — ≥200MHz·km ≥500MHz·km 0.275±0.015 NA —

GYFTZY-110~120Xn Optic Cable Product Features

  • High strength and tensile performance, due to the stranded structure of GYFTZY loose sleeve stranded optical cable, the optical cable has high strength and tensile performance, can be used under harsh environmental conditions, and can resist external mechanical shock and vibration.
  • Low loss and high bandwidth, GYFTZY loose sleeve stranded optical cable adopts advanced optical fiber manufacturing technology, which makes the optical fiber have low transmission loss and high bandwidth, and can meet the communication needs of high-speed and large data volume.
  • Good temperature performance, GYFTZY loose sleeve stranded fiber optic cable has good temperature performance, can maintain stable transmission performance in a wide temperature range, and is suitable for communication needs in various extreme environments.

GYFTZY-110~120Xn Optic Cable Product and more Optic Cables

Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (cyfty53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (با یکدیگر)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)
Loose sleeve stranded light armored fiber optic cable (GYTS)
Stranded loose jacket unarmoured fiber optic cable (GYTA)

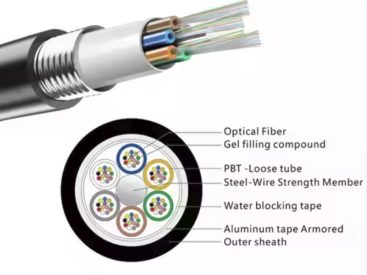

GYFTZY-110~120Xn Optic Cable Product Structure
