شرح
800G OSFP DR8 is designed for use in 800 Gigabit Ethernet links on up to 500m of single mode fiber. They are compliant with the OSFP MSA, and IEEE 802.3bs. The optical transceiver is RoHS compliant. همزمان, it goes with the latest releases of the QSFP-DD800 MSA. Firmware supports CMIS 5.0 and newer release. We offer transceivers for DR8, 2xDR4, 2xFR4 and 2xLR4 interfaces. Our vertical integration for optical engines enables leading performance and power consumption.

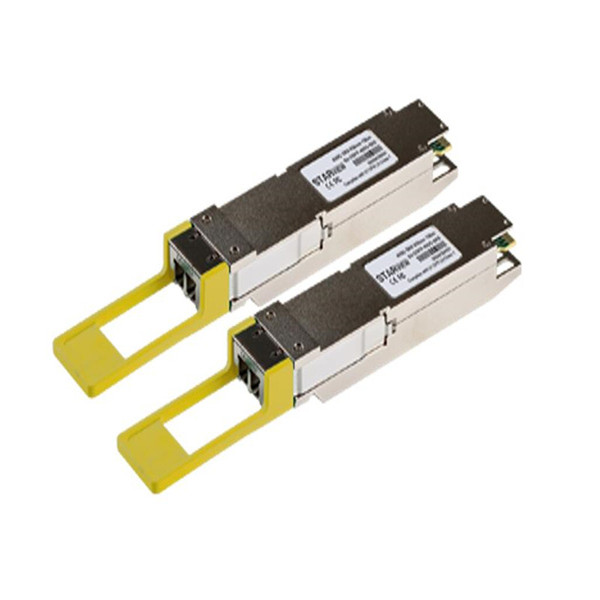

800G OSFP DR8 Product Pictures
800G OSFP DR8 Product Specifications
| توضیحات محصول | نرخ داده
(گیگابیت بر ثانیه) |
TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | قدرت (دبلیو) | رسیدن | درجه حرارت (deg C) |
| OSFP 2x FR4 | 800جی | EML CWDM | پین | -3.3 | 3.5 | -7.3 | 3.5 | 16 | 2کیلومتر | 20~60 |
| OSFP DR8 | 800جی | 1310nm EML | پین | -2.9 | 4 | -5.9 | 4 | 16 | 500متر | 0~70 |
| OSFP DR8+ | 800جی | 1310nm EML | پین | -2.4 | 4 | -6.4 | 4.5 | 16 | 2کیلومتر | 0~70 |
| OSFP AOC | 800جی | Siph Based | Siph Based | N/A | N/A | N/A | N/A | 16 | 100متر | 0~70 |
800G OSFP DR8 Product Features
- Hot-pluggable OSFP form factor
- 8 channels full-duplex transceiver module
- Data rate up to 850Gbps
- Compliant with OSFP MSA and 800GBASE Ethernet
- Reach up to 500m over SMF with FEC
- Built-in digital diagnostic functions
- مصرف برق < 16دبلیو
- Commercial operating case temperature range: 0℃ تا 70 ℃
- 3V power supply voltage
- سازگار با RoHS (lead free)
800G OSFP DR8 Product Applications
