Descripción
Cisco QSFP-100G-ZR4-S es un transceptor QSFP 100GBASE, 80Alcance de KM# sobre SMF, Conector LC dúplex
Cisco QSFP-100G-ZR4-S Product Overview
Cisco QSFP-100G-ZR4-S supports link lengths of up to 80km over a standard pair of G.652 single-mode fiber with duplex LC connectors. El 100 La señal Gigabit Ethernet se transmite a través de cuatro longitudes de onda. La multiplexación y demultiplexación de las cuatro longitudes de onda se gestionan dentro del dispositivo.. The module requires the use of FEC on the host platform.
It can operate at temperatures between 0 and 70C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Cisco. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of the transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOMINGO) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) obediente.

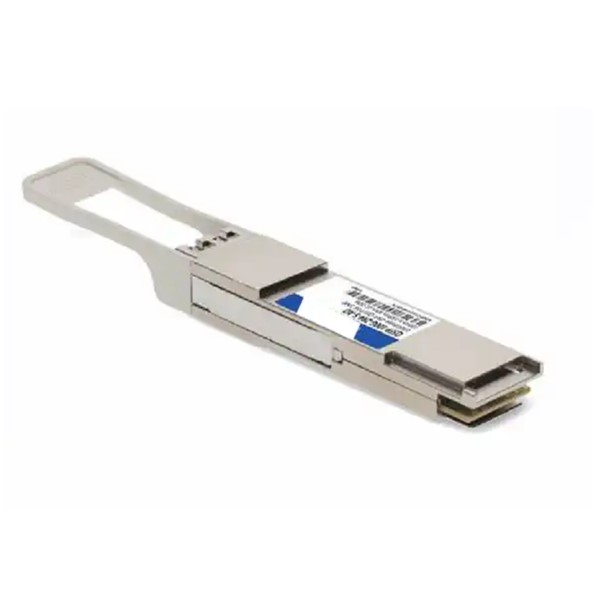

Cisco QSFP-100G-ZR4-S Product Pictures
Cisco QSFP-100G-ZR4-S Product Specifications
| Modelo | QSFP-100G-ZR4-S |
| Tipo de paquete | QSFP28 |
| longitud de onda | 1310Nuevo Méjico |
| interfaz | LC dúplex |
| Emitter type | EML |
| Data Diagnostics (DDM/DOM) | Sí |
| Transmitir potencia óptica | 2~6.5dBm |
| el consumo de energía | ≤6W |
| Power budget | 31dB |
| Modulación | NRZ |
| Power budget | 31dB |
| Tasa de error de bit (BER) | 5.00mi-05 |
| apply | 100Ethernet, Centro de datos, Telecom |
| Velocidad de transmision | 103.125 Gbps(4x 25.78Gbps) |
| Long transmission distance | 80km@SMF |
| tipo de fibra | Single-mode SMF |
| Tipo de receptor | APD |
| Temperatura comercial | 0~70°C (32~158°F) |
| Recibir sensibilidad | <-28dbm |
| Relación de extinción | >6dB |
| Receive overload | 2dBm |
| CDR (Clock Data Recovery) | Send and receive built-in CDR |
| Encapsulation scheme | BOX package |
| protocolo | QSFP28 MSA |
Cisco QSFP-100G-ZR4-S Product Features
- Connect sites up to 80km apart with 100G links
- Leverages the QSFP 28 ports in existing platforms
- Integrated SOA enables up to 80km reach without requiring an external amplifier
- Cost-effective solution for space and power constrained locations
- Supported across multiple Cisco routing and switching platforms
- Use cases include Service Provider, Data Center and Enterprise needing long reach connectivity
Cisco QSFP-100G-ZR4-S and More 100G SFP Modules
QSFP-100G-SR4-S 100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF MPO-12 (12 fibras)
QSFP-100G-SL4 100GBASE QSFP Short Link Transceivers, 30M reach over OM4 MMF MPO-12 (12 fibras)
QSFP-40/100-SRBD 100G and 40GBASE SR-BiDi QSFP Transceiver, LC, 100m OM4 MMF LC
QSFP-100G-SR1.2 100G SR-BiDi QSFP Transceiver, LC, 100m OM4 MMF LC
QSFP-100G-PSM4-S 100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF MPO-12 (12 fibras)
QSFP-100G-DR-S 100GBASE DR QSFP Transceiver, 500m over SMF LC
QSFP-100G-FR-S 100GBASE FR QSFP Transceiver, 2km over SMF LC
QSFP-100G-CWDM4-S 100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF LC
QSFP-100G-SM-SR 100GBASE CWDM4 Lite QSFP Transceiver, 2km sobre SMF, 10-60C LC
QSFP-100G-LR-S 100GBASE LR QSFP Transceiver, 10km over SMF LC
QSFP-100G-LR4-S 100GBASE LR4 QSFP Transceiver, LC, 10km over SMF LC
QSFP-100G-LR4-I 100GBASE LR4 QSFP Transceiver, LC, 10km sobre SMF, I-Temp LC
QSFP-100G-ERL-S 100GBASE ER-Lite QSFP Transceiver, 25km over SMF LC
QSFP-100G-ER4L-S 100GBASE QSFP Transceiver, 25-40Alcance de KM sobre SMF, Duplex LC LC
QSFP-100G-4W40-I 100GBASE 4W40 Transceiver, 40km SMF, dúplex, LC, I-Temp LC
QSFP-100G-ZR4-S 100GBASE QSFP Transceiver, 80Alcance de KM# sobre SMF, Duplex LC LC
