Περιγραφή
SIMCom SIM808 2G Module is a GSM/GPRS+GPS Module in LCC Package combining GPS technology for satellite navigation
SIMCom SIM808 2G Module Product Overview
SIMCom SIM808 2G Module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation. It is designed in LCC Package and integrates GPRS and GPS, which significantly saves both time and costs for customers to develop GPS enabled applications. With an industry-standard interface and GPS function, SIMCom SIM808 allows variable assets to be tracked seamlessly at any location and anytime with signal coverage

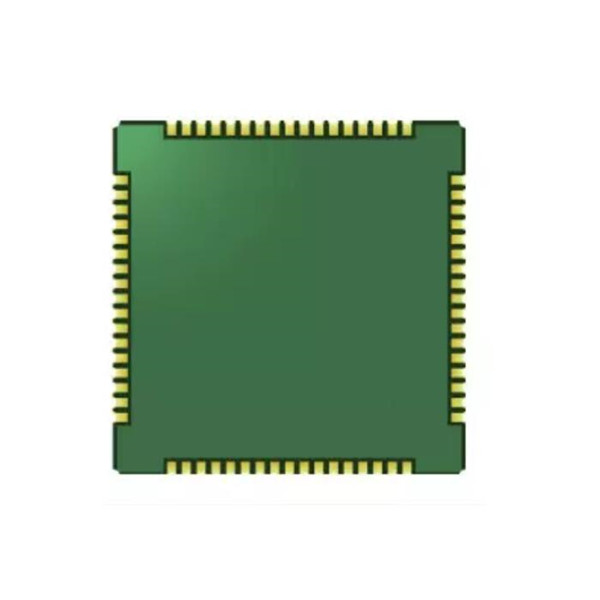

SIMCom SIM808 2G Module Product Pictures
SIMCom SIM808 2G Module Product Specifications
| Μάρκα | SIMCom |
| Μοντέλο | SIM808 |
| Form Factor | LCC 68Pin |
| Διαστάσεις(mm) | 24*24*2.6mm |
| Βάρος | 3.3σολ |
| Εύρος τάσης τροφοδοσίας | 3.4 ~ 4.4V |
| Θερμοκρασία λειτουργίας | -40℃ ~ +85℃ |
| Ζώνες συχνοτήτων | •Quad-band 850/900/1800/1900MHz •GPRS multi-slot class 12/10 •GPRS mobile station class B •Compliant to GSM phase 2/2+ |
| Διεπαφές | •68 SMT pads including•Analog audio interface•PCM interface(προαιρετικός)•SPI interface (προαιρετικός)•RTC backup•Serial interface•USB interface•Interface to external SIM 3V/1.8V•Keypad interface•GPIO•ADC•GSM Antenna pad•Bluetooth Antenna pad•GPS Antenna pad |
| Specifications for SMS via GSM/GPRS | •Point to point MO and MT•SMS cell broadcast•Text and PDU mode |
| Specifications for GPRS Data | •GPRS class 12: Μέγιστη. 85.6 kbps (downlink/uplink)•PBCCH support•Coding schemes CS 1, 2, 3, 4•PPP-stack•USSD |
| Χαρακτηριστικά λογισμικού | •0710 MUX protocol•Embedded TCP/UDP protocol•FTP/HTTP•MMS•POP3/SMTP•DTMF•Jamming Detection•Audio Record•SSL•Bluetooth 3.0 (προαιρετικός)•TTS CN(προαιρετικός)•Embedded AT (προαιρετικός) |
| Πιστοποιήσεις | • RoHSREACHCCCRCMCE(ΤΟ ΚΟΚΚΙΝΟ)ICASAFCC |
SIMCom SIM808 2G Module and More 2G Modules
R800C LCC 42Pin
SIM808 LCC 68Pin
SIM800C LCC 42Pin
SIM868E LCC+LGA 77Pin
SIM868 LCC+LGA 77Pin
SIM800 LCC 68Pin
SIM800H LGA 88Pin
SIM800F LCC 68Pin
SIM800C-DS LCC+LGA 77Pin
SIMCom SIM808 2G Module Product Applications
