Huawei ME909s-821 LGA Module

Περιγραφή

Huawei ME909s-821 LGA Module is Cat4 LTE industrial-grade M2M wireless modules that follow the Huawei LGA package standard and are compatible with the MU709s series pin-to-pin. At the same time with the standard Mini PCIe form, the customer choice is more flexible.

Huawei ME909s-821 LGA Module Introduction

ME909s series support downlink 150Mbps, uplink 50Mbps transmission rate; provide high-quality voice and SMS functions; rich extension functions, including FOTA, USSD, IPV6/IPV4; built-in TCP/IP protocol stack; Huawei extended AT command set…

ME909s series is the first choice for automotive, tracking, βιομηχανικοί δρομολογητές, security monitoring, industrial flat panel, and other industrial applications.

The ME909s are divided into two sub-models, which are differentiated according to the frequency band requirements of different delivery areas:

ME909s-120, supports Europe, Asia Pacific, Λατινική Αμερική, and other overseas markets.

ME909s-821, supporting the Chinese market

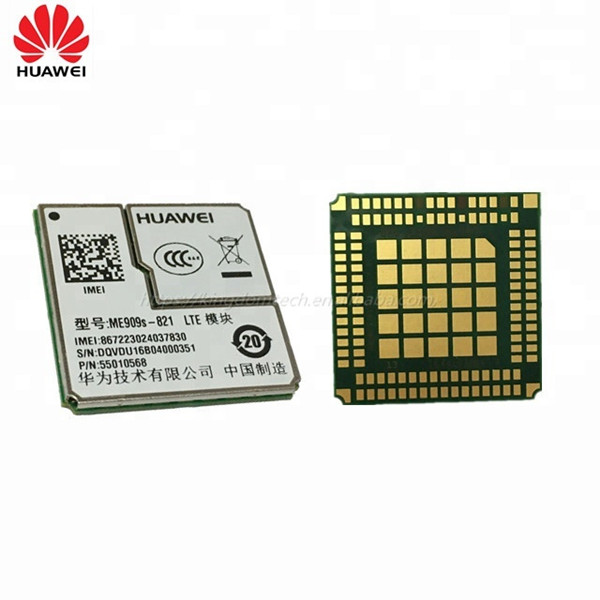

Huawei ME909s-821 LGA Module Product Pictures

Huawei ME909s-821 LGA Module Specifications

Μέγεθος	Υψος
	30mm
	Πλάτος
	30mm
	Length
	2.57mm
	Βάρος
	<5σολ
Form Factor	145-pin LGA
Band	ME909s-821 :
	LTE (FDD): B1,B3,B8
	LTE (TDD): B38, B39,B40,B41
	DC-HSPA+/HSPA+/HSPA/UMTS : B1, Β5, B8,B9
	TD-SCDMA: B34, Β39
	EDGE/GPRS/GSM : 900/1800 MHz
Speed	DC-HSPA+ : Downlink42 Mbps, uplink: 5.76 Mbps
	LTE TDD: Κατερχόμενος σύνδεσμος:112Mbps, Uplink: 10Mbps
	LTE FDD: Κατερχόμενος σύνδεσμος:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M
Διεπαφή	145 pins LGA interface
	Antenna interface
	UART
	USB 2.0 High speed
	PCM Voice
	Κάρτα SIM
	LED
	Multiple GPIOs
	JTAG
	Παροχή ηλεκτρικού ρεύματος
	Power-on/off
	Επαναφορά
Δυναμικό	3.2 V to 4.2 V (typical: 3.8 V)
Φωνή	PCMinvoice
	DTMF
Θερμοκρασία	-40℃ to 85℃
Λειτουργίες	CDC-ECM
	ΠΟΔΙ
	Firmware Update via USB
	Embedded UDP/TCP/FTP(μικρό)/HTTP(μικρό) stack
	High-speed UART
	CMUX
	Sleep mode
Σύστημα	Linux, Android, WinCE, Windows 8/10
Πιστοποιητικό	CCC

Huawei ME909s-821 LGA Module Features

* Form Factor: 145 pins LGA interface and Mini-PCIe

* 4G LTE (FDD): B1,B3,B8

* 4G LTE (TDD): B38, B39,B40,B41

* DC-HSPA+/HSPA+/HSPA/UMTS : B1, Β5, B8,B9

* TD-SCDMA: B34, Β39

* EDGE/GPRS/GSM: TD-SCDMA: B34, Β39

* LTE FDD: Κατερχόμενος σύνδεσμος:150 Mbps, Uplink: 50 Mbps

* LTE TDD: Κατερχόμενος σύνδεσμος:112 Mbps, Uplink: 10 Mbps

* DC-HSPA+ :Κατερχόμενος σύνδεσμος:42 Mbps, Uplink: 5.76 Mbps

* Παροχή ηλεκτρικού ρεύματος: Μίνι PCIe: 3.2 V to 4.2 V (typical: 3.8 V)

* Temp Range: -40 προς την 85

* Φωνή: PCM Voice and DTMF
