Περιγραφή
Huawei CIUA Transfer Board is a general interface board and it provides the input and output clock source for the system. This board also supports functions like input and output of alarm digital parameters.
Huawei CIUA Transfer Board Product Overview
Huawei CIUA Transfer Board is a general interface board. It provides the input and output clock source for the system and supports functions such as input and output of alarm digital parameters. The MA5800 frame-shaped series is available in three models: MA5800-X17, MA5800-X7, and MA5800-X2. They are applicable in FTTB, FTTC, FTTD, FTTH, and D-CCAP networks. ο 1 U box-shaped OLT MA5801 is applicable to all-optical access coverage in low-density areas. The MA5800 can meet operator demands for a Gigaband network with wider coverage, faster broadband, and smarter connectivity. For operators, the MA5800 can provide superior 4K/8K/VR video services, support massive physical connections for smart homes and all-optical campuses, and offers a unified way to connect home user, enterprise user, κινητά backhaul, and Internet of Things (IoT) υπηρεσίες.

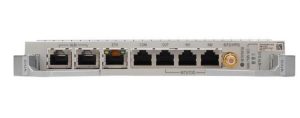

Huawei CIUA Transfer Board Product Pictures
Huawei CIUA Transfer Board Product Specifications
| Μάρκα | Huawei |
| Μοντέλο | H901CIUA |
| Type of BITS inputs | 2 Mbit/s, 2 MHz |
| BITS inputs/outputs | 2 inputs 1 παραγωγή |
| Type of BITS outputs | 2 Mbit/s, 2 MHz |
| 1PPS+TOD inputs | 2 inputs |
| 1PPS+TOD output | 1 παραγωγή |
| SSM clock input | SSM messages are supported in the 2 Mbit/s mode |
| Θερμοκρασία λειτουργίας | -40°C έως +65 °C |
| Κατανάλωση ενέργειας | Στατικός: 6 W Maximum: 7 W |
Huawei CIUA Transfer Board Product Features
The H901CIUA is a general-purpose interface board that provides a clock source for the system and supports functions such as alarm switching input and output.
The functions and specifications of H901CIUA are as follows:
- Support 7-channel alarm switch input, 1-channel alarm switch control output.
- Support two 2Mb/s or 2MHz BITS clock signal inputs.
- Support two channels of 1PPS+TOD time signal input.
- Support a 2MHz or 2Mb/s clock signal output.
- Support one channel of 1PPS+ToD clock signal output.
- Support external monitoring network port and transparently transmit monitoring data.
- Support RS485 transparent transmission serial port.
- Support tracking, holding, free oscillation and other working conditions.

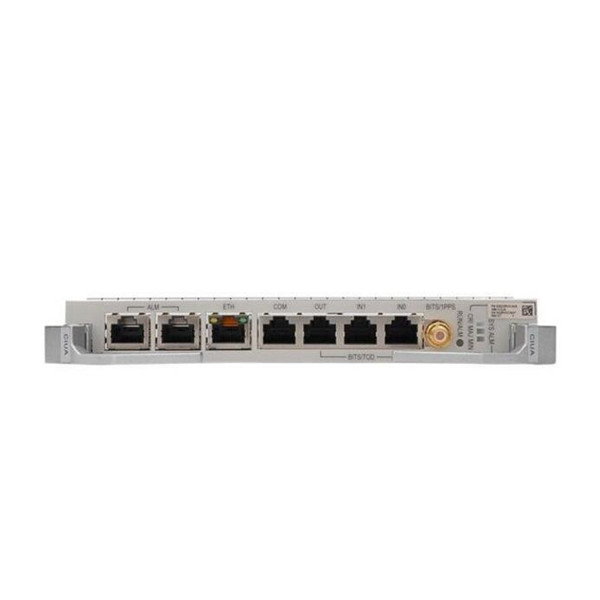

Huawei CIUA Transfer Board Front Panel
Huawei CIUA Transfer Board and More Service Boards
| H902MPLAE | Huawei SmartAX EA5800 Main Processing Board |
| H901MPSCE | Huawei SmartAX EA5800 Main Processing Board |
| H901CIUA | Huawei SmartAX EA5800 Combo Interface Transfer Board |
| H901XGHDE | Huawei SmartAX EA5800 8-port Advanced XG-PON OLT Interface Board |
| H901OGHK | Huawei SmartAX EA5800 48-port Advanced GE/FE Optical Interface Board |
| H901NXED | Huawei SmartAX EA5800 8-port Enhanced 10GE Uplink Interface Board |
| H901OXHD | Huawei SmartAX EA5800 8-port Advanced 10GE Optical Interface Board |
| H902OXHD | Huawei SmartAX EA5800 8-port Advanced 10GE Optical Interface Board |
| H901GPSFE | Huawei SmartAX EA5800 16-port GPON OLT Interface Board |
| H901OXEG | Huawei SmartAX EA5800 24 port Aggregationed 10GE/GE Optical Interface Board |
| H901TWEDE | Huawei SmartAX EA5800 8-port Enhanced XGS-PON OLT Interface Board |
| H901XSHF | Huawei SmartAX EA5800 16-port XGS-PON OLT Interface Board |
| H902GPHFE | Huawei SmartAX EA5800 16-port GPON OLT Interface Board |
| H901PILA | Huawei SmartAX EA5800 Power Transfer Board |
| H901PISA | Huawei SmartAX EA5800 Power Transfer Board |
| H901PISB | Huawei SmartAX EA5800 Power Transfer Board |
| H902PISB | Huawei SmartAX EA5800 Power Transfer Board |
| H901FMLA | Huawei SmartAX EA5800 EA5800-X15/X17 fan tray |
| H901FMMA | Huawei SmartAX EA5800 EA5800-X7 fan tray |
| H901FMSA | Huawei SmartAX EA5800 EA5800-X2 fan tray |
Huawei CIUA Transfer Board Product Applications
