Περιγραφή
Huawei AirEngine 5762-10 is a Wi-Fi 6 (802.11τσεκούρι) indoor access point, which can simultaneously provide services on 2.4 GHz(2×2 MIMO) και 5 GHz (2×2 MIMO) frequency bands.
Huawei AirEngine 5762-10 Product Overview
This access point features high bandwidth and high concurrency with compact size, facilitating flexible deployment and saving customers’ investment. Επιπροσθέτως, AirEngine 5762-10 is equipped with the dual-band smart antenna array and intelligent switchover algorithm can intelligently detect the application environment and access density, achieving more accurate signal coverage and interference suppression. This design helps provide the optimal signal coverage direction and signal quality for each mobile access STA, bringing seamless and smooth wireless network access experience to the users. These strengths make the APs apply to indoor scenarios such as SOHO enterprise offices, small- and medium-sized hospitals, commercial real estate, economic chain hotels, και σχολεία.

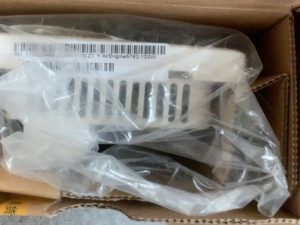

Huawei AirEngine 5762-10 Product Pictures
Huawei AirEngine 5762-10 Product Descriptions
| Μοντέλο | AirEngine 5762-10 |
| Αριθμός ανταλλακτικού | 50086104 |
| Περιγραφή | AirEngine5762-10(11ax indoor,2+2 dual bands,smart antenna) |
| Πρώτη υποστηριζόμενη έκδοση | V200R022C10 |
| Διαστάσεις (Diameter x Height) | 180 mm x 35 mm |
| Είσοδος ισχύος | DC: 12 V ± 10% |
| Τροφοδοτικό PoE: in compliance with IEEE 802.3af | |
| Μέγιστη Κατανάλωση Ενέργειας | 11.2 W |
| Θερμοκρασία λειτουργίας | –10°C to +50°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2×2:2; 5 GHz: 2×2:2 |
| Ραδιοφωνικά πρωτόκολλα | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | 2.975 Gbit/s |
| Θερμοκρασία αποθήκευσης [°C(°F)] | –40°C έως +70°C (–40°F έως +158°F) |
| Μακροχρόνια σχετική υγρασία λειτουργίας [RH] | 5% RH να 95% RH |
| Μακροπρόθεσμο υψόμετρο λειτουργίας [Μ(πόδια)] | –60 m to +5000 Μ (–196.85 ft to +16404.20 πόδια) |
| Ατμοσφαιρική πίεση [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| BLE | Δεν υποστηρίζεται |
| Radio number | 2 |
Huawei AirEngine 5762-10 Product Features
- Provide services simultaneously on both the 2.4 GHz (2×2 MIMO) και 5 GHz (2×2 MIMO) frequency bands.
- 1 x GE electrical port.
- Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality.
- Support the Fit, Fat, and Cloud three working modes
- Support smart application control technology and can implement visualized control on Layer 4 to Layer 7 εφαρμογές.
- Support both 2.4 GHz και 5 GHz frequency bands. The 5G-prior access function enables an AP to steer STAs to the 5 GHz frequency band first, which reduces load and interference on the 2.4 GHz frequency band, improving the user experience.
