ZTE SFUD Service Board is switching and control card applied to ZXA10 C600/C650.
ZTE SFUD Service Board Product Overview
ZTE SFUD Service Board is switching and control card used to ZXA10 C600/C650.
ZXA10 C600 is a large-capacity optical access OL device based on the TTAN platform. It can meet the requirements of ultra-high bandwidth access, großes Video, fixed-mobile convergence, network reconstruction, carrier-class QoS and security assurance. ZXA10 C600 is a 11U high-fiber access device with 17/15 line card slots, which can support 272/240 GPON/10G PON-Ports.
ZXA10 C650 is a medium-sized optical access OLT device based on the TITAN platform, which can meet the requirements of ultra-high bandwidth access, large video, fixed-mobile convergence, network reconstruction, carrier-class QoS and security assurance. It is a 6U high device with 7 line card slots, which can support 112*GPON/10GPON ports.

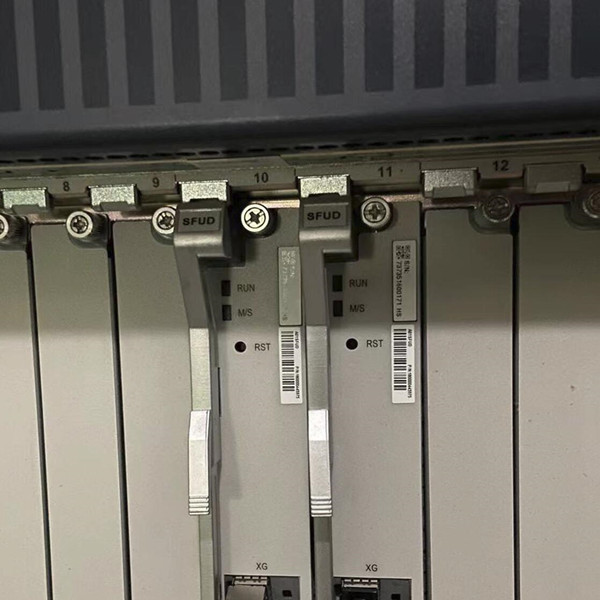

ZTE SFUD Service Board Product Pictures
ZTE SFUD Service Board Product Specifications
| Marke | ZTE |
| tem | SFUD |
| Kartenname | Schalt- und Steuerkarte Typ L |
| Maße (mm) | 393.1 mm × 30.5 mm × 214 mm |
| Gewicht(kg) | 2.43 kg |
| Funktionen | Out-of-Band-Management-Port (MGMT) |
| serielle Wartungsschnittstelle (KONSOLE) | |
| USB-Schnittstelle 1 Spiegeldiagnose-Netzwerkport (DIAG) | |
| Debugging-Port (ODB) | |
| Unterstützt den Lastverteilungsmodus. | |
| Unterstützt Hot-Swapping | |
| Unterstützung 4 OLT-Scheiben. |
ZTE SFUD Service Board Product and More Related Boards
| Oberflächentyp | Schnittstellenkarte | ||
| ZXA10 C600 | ZXA10 C650 | ZXA10 C680 | |
| Out-of-Band-NM-Schnittstelle (RJ45) | SFUL | SFUL | EMP |
| Lokale serielle Schnittstelle (Konsole) | SFUL | SFUL | EMP |
| Serviceschnittstelle | GPON/XG-PON1/XGS-PON EPON/10G-EPON Ethernet (P2P) TDM | GPON/XG-PON1/XGS-PON P2P | GPON/10G-GPON |
| Einheit | 11U (19Zoll/21 Zoll) | 6U (19 Zoll) | 60*25cm |
ZTE SFUD Service Board Product Applications
