Huawei SSN1IXCSA-Board

Beschreibung

Huawei SSN1IXCSA Board is Infinite Cross Clock Board for OSN 3500

Huawei SSN1IXCSA Board Product Overview

Huawei SSN1IXCSA Board is an infinite cross clock board. It provides service scheduling, clock input and output functions in the OptiX OSN 3500 System, flexible service scheduling capabilities, non-blocking full crossover, multicast and broadcast services, and Communication function

Huawei SSN1IXCSA Board can be configured through the T2000 network management system. The parameters that the IXCSA board needs to set through the network management are as follows: no external clock and SSM is not enabled, the following parameter configuration, clock reference source, clock source tracking level, external clock configuration, und SSM -Aktivierung sind erforderlich. Taktreferenzquelle, clock source tracking level, Uhr kann in den folgenden Modi funktionieren: Sperrmodus, Hold -Modus, freier Schwingungsmodus, Art der externen Bits: Setzen Sie S1 Byte, Wählen Sie den Schwellenwert der Taktschalterschutzaktion aus.

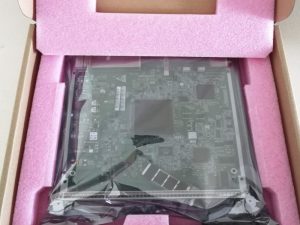

Huawei SSN1IXCSA Board Produktbilder

Huawei SSN1IXCSA -Board -Produktspezifikationen

Huawei SSN1IXCSA -Board -Produktfunktionen

• Huawei SSN1IXCSA Board provides 155G access capacity, the SSNIIXCSB board provides 156.25G access capacity, the high-order (VC4) cross-connect capability is 200G, and the low-order (VC12 / VC3) cross-connect capability is 40G. The SSN1IXCSB’s 1.25G capacity is the access capacity of the extended subrack.
• Huawei SSN1IXCSA Board has flexible service scheduling capabilities. It can implement services such as the cross, übertragen, Multicast, and loopback among services, and it can also implement protection functions such as SNCP and MSP.
• Huawei SSN1IXCSA Board implements the system timing function. Can be selected and configured from two external sources (2MHz or 2Mbit / S, und unterstützt 75 ohm and 120-ohm interfaces), clock sources sent from 15 business boards, as the clock source for phase-locking, or the board The crystal oscillator free oscillation output is used as the clock reference. Die Karte hat die Funktion, das Status -Byte der Synchronisationsinformationen zu verarbeiten.

Huawei SSN1IXCSA Board -Produkt und mehr verwandte Gremien

Huawei SSN1IXCSA -Board -Produktanwendungen
