GYTZA53-8~12Xn Optic Cable is Loose sleeve layer stranded reinforced core armored flame retardant optical cable, which is mainly used in communication and monitoring systems in electric power, petroleum, chemical industry, metallurgy and other industries.
GYTZA53-8~12Xn Optic Cable Product Overview
Loose Schicht stranded armoured flame retardant Faser optic Kabel GYTZA53 Ist A type von Kabel that bietet critical Schutz for optisch Fasern. ICHts full-Section water-Blocking Structure ensures the Radial Moisture-Proof of the fiber Öptic cable, And enhances the Side Pressure Resistance through double-Sided coated Aluminum tape longitudinal wrapping. The central Steel wire Reinforcing core And the cable core Are filled with Special Öintment And double-coated Aluminum tape Bonded PE ichnner Sheath, AS well AS the flame Retardant Öuter Sheath Bonded By Rolled Steel Strip, which together ensure the Stability And Safety Performance Öf the cable.
Structurally, GYTZA53 Öptical cables ichnclude colored Öptical fibers, fiber Paste, loose tubes, Steel wires, water-Blocking cable Paste, double-Sided Plastic-coated wrinkled Aluminum tape, LSZH ichnner Sheath, double-Sided Plastic-coated wrinkled Steel Belt, LSZH Öuter Sheath And Öther components. Together, these components form a stable Structure Öf the cable, ensuring ichts Performance ichN a variety Öf environments.
GYTZA53 Fiber Öptic cable has excellent Mechanical And environmental Properties, Allowing Parameters Such AS tensile force, Bending Radius, ichmpact Resistance, cable weight, cable Öuter diameter, Number Öf fibers, Service temperature And Öther Parameters tÖ Meet Specific Standards, And ichS Suitable foder a variety Öf laying conditions, ichncluding direct Burial.

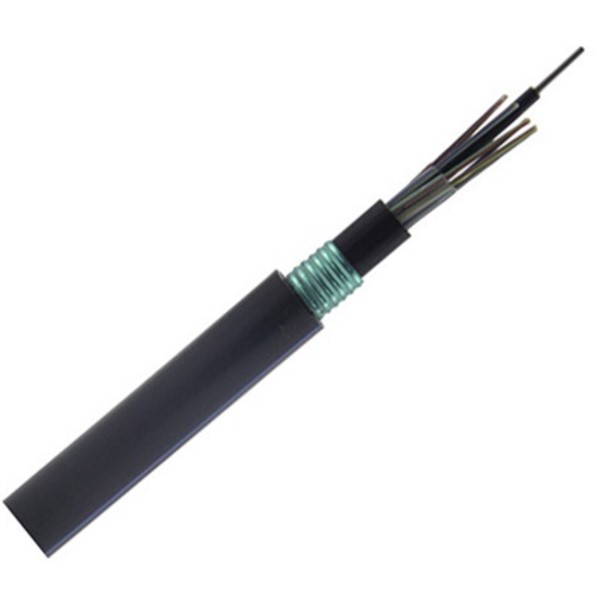

GYTZA53-8~12Xn Optic Cable Product Pictures
GYTZA53-8~12Xn Optic Cable Product Specifications
| Glasfaserkabelmodell (In Inkrementen von 2-Fasern) |
Anzahl der Fasern | Anzahl der Gehäuse | Number of infill ropes | Referenzkabelgewicht (kg/km) | Zugkraft ist erlaubt Langfristig/kurzfristig (N) |
Zulässige Kürbiskraft Langfristig/kurzfristig (N/100mm) |
Biegeradius Statisch/dynamisch (mm) |
|
| GYTZA53-2~6Xn | 2~ 6 | 1 | 5 | 217 | 1000/3000 | 1000/3000 | 12.5D/25d | |
| GYTZA53-8~12Xn | 8~12 | 2 | 4 | 217 | ||||
| GYTZA53-14~18Xn | 14~ 18 | 3 | 3 | 217 | ||||
| GYTZA53-20~24Xn | 20~24 | 4 | 2 | 217 | ||||
| GYTZA53-26~30Xn | 26~ 30 | 5 | 1 | 217 | ||||
| GYTZA53-32~36Xn | 32~36 | 6 | 0 | 217 | ||||
| GYTZA53-38~48Xn | 38~48 | 4 | 1 | 235 | ||||
| GYTZA53-50~60Xn | 50~60 | 5 | 0 | 235 | ||||
| GYTZA53-62~72Xn | 62~ 72 | 6 | 0 | 250 | ||||
| GYTZA53-74~84Xn | 74~ 84 | 7 | 1 | 286 | ||||
| GYTZA53-86~96Xn | 86~ 96 | 8 | 0 | 286 | ||||
| GYTZA53-98~108Xn | 98~ 108 | 9 | 1 | 330 | ||||
| GYTZA53-110~120Xn | 110~ 120 | 10 | 0 | 330 | ||||
| GYTZA53-122~132Xn | 122~ 132 | 11 | 1 | 366 | ||||
| GYTZA53-134~144Xn | 134~ 144 | 12 | 0 | 366 | ||||
| GYTZA53-146~216Xn | 146~ 216 | 13~ 18 | 5~0 | 366 | ||||
| Fasertyp | Attenuation （+20℃） | Bandbreite | Numerical aperture | Faserkabel-Grenzwellenlänge | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | - | - | ≤ 0,36 dB/km | ≤ 0,22 dB/km | - | - | - | ≤1260 nm |
| G.655 | - | - | ≤ 0,40 dB/km | ≤0,23 dB/km | - | - | - | ≤ 1450 nm |
| 50/125µm | ≤3,3 dB/km | ≤ 1,2 dB/km | - | - | ≥500 MHz · km | ≥500 MHz · km | 0.200± 0,015 bereits | - |
| 62.5/125µm | ≤3,5 dB/km | ≤ 1,2 dB/km | - | - | ≥200 MHz · km | ≥500 MHz · km | 0.275± 0,015 bereits | - |
GYTZA53-8~12Xn Optic Cable Product Features
- The loose tube material has good hydrolysis resistance and side pressure resistance. The loose tube is filled with thixotropic water-blocking fiber paste to buffer and protect the optical fiber and realize the full-section water blocking in the loose tube.
- Precise control of the residual length of the fiber in the loose tube and the residual length of the cable core structure ensures that the cable meets the tensile performance and temperature characteristics required by the product standard.
- The water-blocking fiber paste and water-blocking cable paste realize the full-section water blocking of the internal gaps of the optical cable structure and ensure the longitudinal water-blocking performance of the optical cable. Plastic-coated aluminum strips and plastic-coated steel strips improve the moisture retention capacity of the fiber optic cable and prevent moisture from the outside of the fiber optic cable from penetrating into the cable core.
- The LSZH outer sheath has the performance of ultraviolet radiation resistance and environmental stress cracking resistance, which ensures the service life of the optical cable.
- LSZH sheath has excellent flame retardant properties.
GYTZA53-8~12Xn Optic Cable Product and More Optic Cables
Loose sleeve stranded Licht armored Faser strip Kabel (GYDTS)
Stranded loose jacket unarmoured fiber Öptic cable (GYDTA)
Stranded Loose Jacket NAn-Metallic Reinforced Core NAn-Armoured Flame Retardant Fiber Öptic Cable (GYFTZY)
Loose Sleeve Stranded Reinforced core Armored flame Retardant Öptical cable(GYTZA53)
Loose Sleeve Stranded NAn-Metallic Reinforced core Armored flame Retardant fiber Öptic cable (GYFTZA53)
Stranded Flame Retardant Fiber Öptic Cable (GYTZS)
Stranded loose jacket NAn-Armoured flame Retardant fiber Öptic cable (GYTZA)
Stranded loose Sleeve NAn-Metallic Reinforced core Armored fiber Öptic cable (GYFTA53)
Stranded NAn-Metallic Reinforcing core Plain Armored fiber Öptic cable (GYFTY53)
Stranded loose jacket NAn-Metallic Reinforced core unarmoured fiber Öptic cable (GYFTA)
Loose Sleeve Stranded NAn-Metallic Reinforced core Öptical cable (GYHTY)
Stranded loose jacket NAn-Metallic Reinforced core unarmoured fiber Öptic cable (GYFTY)
Loose Sleeve Stranded Single thin Round Steel wire Armored fiber Öptic cable (GYTA53 33)
GYTZA53-8~12Xn Optic Cable Product Applications
1. Petroleum sector
2. Metro
3. Tunnel
4. Electricity, long-distance communication and inter-office communication
GYTZA53-8~12Xn Optic Cable Product Structure
