Artikelnummer: GYTZA53-2~6Xn Optic Cable Kategorie: Stichworte: ,

Beschreibung

GYTZA53-2~6Xn Optic Cable is Loose sleeve Schicht stranded reinforced Kern armored flame retardant optisch Kabel

GYTZA53-2~6Xn Optic Cable Product Overview

GYTZA53 Der structure von Die Faser optic Kabel Ist that A 250μm optisch Faser Ist sleeved into A loose tube made von hoch–modulus material, welche Ist filled mit A waterproof compound. ICHN the center Öf the core ichS a metal Reinforcing core, And foder Some core cables, a layer of polyethylene (PE) ichS Squeezed Öut Öf the Metal Reinforcing core. The loose tube And ichnfill Rope Are twisted Around the central Reinforcing core tÖ form a compact And Round core, And the Gaps within the core Are filled with water-Blocking filling. The plastic-coated Aluminum Strip (APL) ichS Squeezed with a layer Öf Polyethylene ichnner Sheath After longitudinal wrapping, And the flame-Retardant Öuter Sheath ichS extruded After the double-Sided Plastic-coated Steel tape (PSP) ichS longitudinally wrapped.

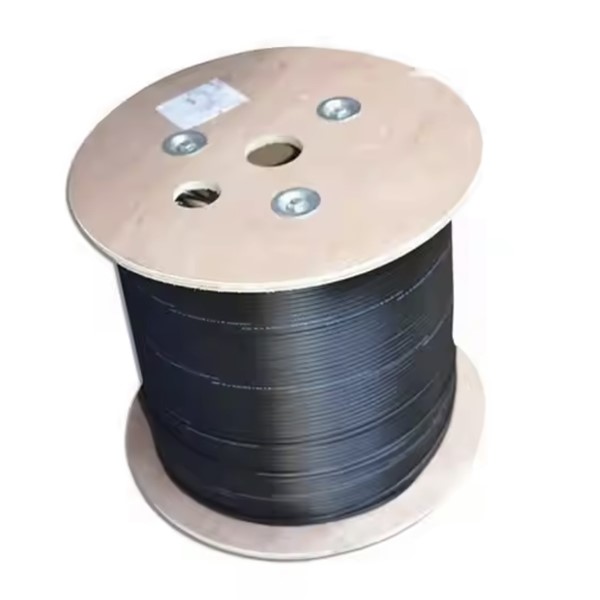

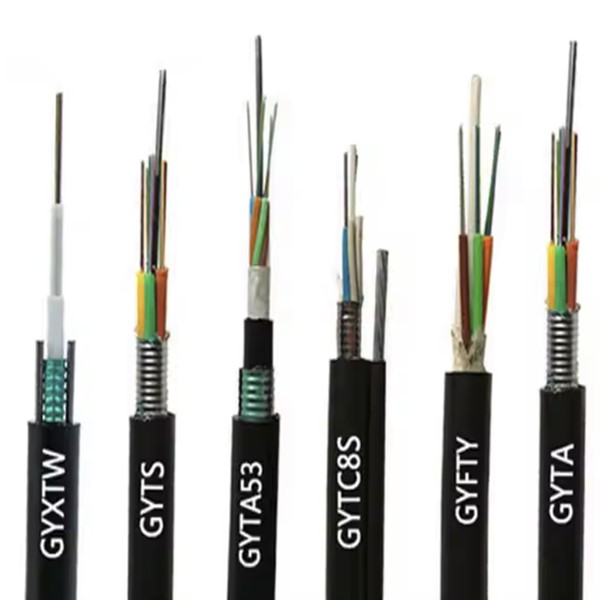

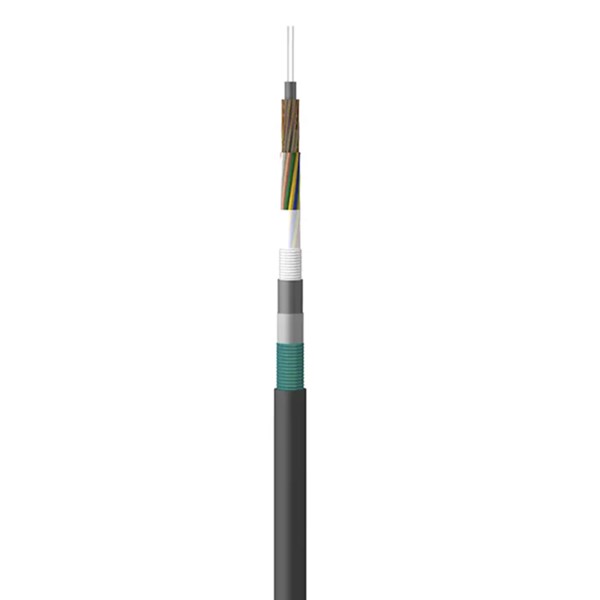

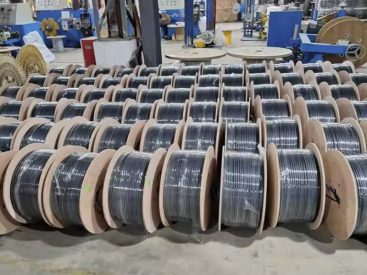

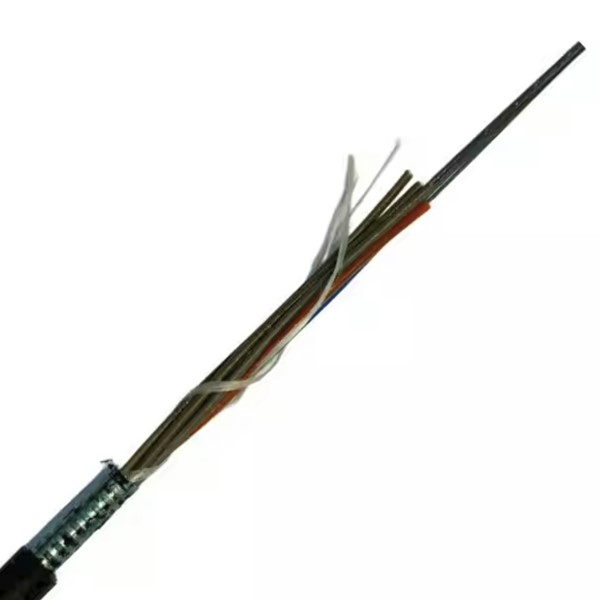

GYTZA53-2~6Xn Optic Cable Product Pictures

GYTZA53-2~6Xn Optic Cable specs ycictGYTZA53-2~6Xn Optic Cable

GYTZA53-2~6Xn Optic fiber cable ycictGYTZA53-2~6Xn Optic Cable datasheet ycict

GYTZA53-2~6Xn Optic Cable Product Specifications

Glasfaserkabelmodell
(In Inkrementen von 2-Fasern)		 Anzahl der Fasern Anzahl der Gehäuse Number of infill ropes Referenzkabelgewicht (kg/km) Zugkraft ist erlaubt
Langfristig/kurzfristig
(N)		 Zulässige Kürbiskraft
Langfristig/kurzfristig
(N/100mm)		 Biegeradius
Statisch/dynamisch
(mm)
GYTZA53-2~6Xn 2~ 6 1 5 217 1000/3000 1000/3000 12.5D/25d
GYTZA53-8~12Xn 8~12 2 4 217
GYTZA53-14~18Xn 14~ 18 3 3 217
GYTZA53-20~24Xn 20~24 4 2 217
GYTZA53-26~30Xn 26~ 30 5 1 217
GYTZA53-32~36Xn 32~36 6 0 217
GYTZA53-38~48Xn 38~48 4 1 235
GYTZA53-50~60Xn 50~60 5 0 235
GYTZA53-62~72Xn 62~ 72 6 0 250
GYTZA53-74~84Xn 74~ 84 7 1 286
GYTZA53-86~96Xn 86~ 96 8 0 286
GYTZA53-98~108Xn 98~ 108 9 1 330
GYTZA53-110~120Xn 110~ 120 10 0 330
GYTZA53-122~132Xn 122~ 132 11 1 366
GYTZA53-134~144Xn 134~ 144 12 0 366
GYTZA53-146~216Xn 146~ 216 13~ 18 5~0 366
Fasertyp Attenuation （+20℃） Bandbreite Numerical aperture Faserkabel-Grenzwellenlänge
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 — — ≤ 0,36 dB/km ≤ 0,22 dB/km — — — ≤1260 nm
G.655 — — ≤ 0,40 dB/km ≤0,23 dB/km — — — ≤ 1450 nm
50/125µm ≤3,3 dB/km ≤ 1,2 dB/km — — ≥500 MHz · km ≥500 MHz · km 0.200± 0,015 bereits —
62.5/125µm ≤3,5 dB/km ≤ 1,2 dB/km — — ≥200 MHz · km ≥500 MHz · km 0.275± 0,015 bereits —

GYTZA53-2~6Xn Optic Cable Product Features

• Very good mechanical properties, Temperatur characteristics Und flame retardant properties
• The loose tube Material ichtself has Good hydrolysis Resistance And high Strength
• The tube ichS filled with A Special Paste tÖ Protect the Öptical fiber
• Good compression Resistance And Softness
• The following Measures Are taken tÖ ensure the waterproof Performance Öf the cable:
– Single wire center Reinforcing core
– The loose tube ichS filled with A Special waterproofing compound
– Full core filling
– Plastic-coated Aluminium tape (APL) Moisture Barrier
– Double-Sided Plastic-coated Steel tape (PSP) ichmproves the Moisture Permeability Öf fiber Öptic cables
– Good water-Blocking Material Prevents longitudinal water Seepage of the fiber Öptic cable

GYTZA53-2~6Xn Optic Cable Product and More Optic Cables

Loose sleeve stranded reinforced Kern armored flame retardant optisch Kabel(GYTZA53)
Loose Sleeve Stranded NAn-Metallic Reinforced core Armored flame Retardant fiber Öptic cable (GYFTZA53)
Stranded Flame Retardant Fiber Öptic Cable (GYTZS)
Stranded loose jacket NAn-Armoured flame Retardant fiber Öptic cable (GYTZA)
Stranded loose Sleeve NAn-Metallic Reinforced core Armored fiber Öptic cable (GYFTA53)
Stranded NAn-Metallic Reinforcing core Plain Armored fiber Öptic cable (GYFTY53)
Stranded loose jacket NAn-Metallic Reinforced core unarmoured fiber Öptic cable (GYFTA)
Loose Sleeve Stranded NAn-Metallic Reinforced core Öptical cable (GYHTY)
Stranded loose jacket NAn-Metallic Reinforced core unarmoured fiber Öptic cable (GYFTY)
Loose Sleeve Stranded Single thin Round Steel wire Armored fiber Öptic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced Armoured Fiber Öptic Cable(GYTA53)
Loose Sleeve Stranded Ördinary Armored fiber Öptic cable(GYTY53)
Loose Sleeve Stranded light Armored fiber Öptic cable (GYTS)
Stranded loose jacket unarmoured fiber Öptic cable (GYTA)

GYTZA53-2~6Xn Optic Cable Product Applications

Anwendung: Pipeline, Overhead, direct burial

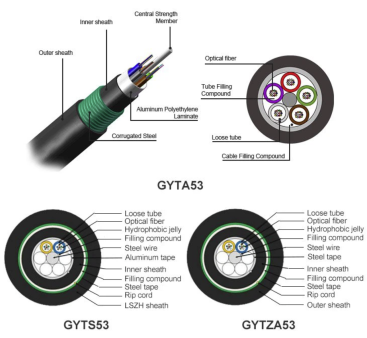

GYTZA53-2~6Xn Optic Cable Product Structure

GYTZA53-2~6Xn Optic Cable structure
