SIMCom A7672E 4G Module is a LTE Cat 1 module with LTE-FDD/GSM/GPRS/EDGE delivering maximum 10Mbps downlink rate and 5Mbps uplink rate.
SIMCom A7672E 4G Module Product Overview
SIMCom A7672E adopts LCC+LGA form factor and is compatible with SIM7000/SIM7070 series (NB/Cat M modules), and SIM800A/SIM800F series (2G modules). På samme tid, the module supports both multiple built-in network protocols and the drivers for main operation systems (USB-driver til Windows, Linux og Android). The software functions, AT commands are compatible with the SIM800 series modules. Derudover, A7672E supports BLE* and GNSS* and it integrates abundant industrial standard interfaces with powerful expansibility, which makes it perfectly suitable for main IOT applications such as telematics, POS, overvågningsudstyr, industrielle routere, og fjerndiagnostik mv.

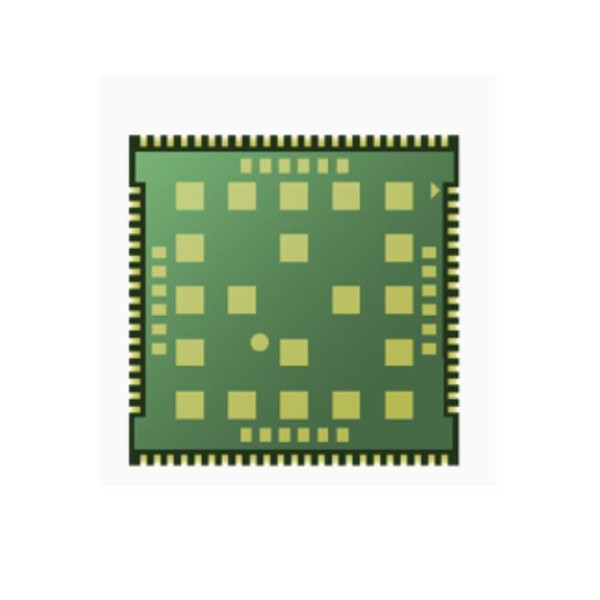

SIMCom A7672E 4G Module Product Pictures
SIMCom A7672E 4G Module Product Specifications
| Mærke | SIMCom |
| Model | SIMCom A7672E |
| Formfaktor | LCC+LGA |
| Frekvensbånd | LTE-FDD B1/B3/B5/B7/B8/B20 GSM/GPRS/EDGE 900/1800 MHz |
| Forsyningsspænding | 3.4V~4,2V, Typ: 3.8V |
| Driftstemperatur | -40℃ ~ +85℃ |
| Dimensioner | 24*24*2.4mm |
| Vægt | 2.8±0,1 g |
| Dataoverførsel | LTE kat 1: Uplink op til 5 Mbps Downlink op til 10 Mbps KANT : Uplink/Downlink op til 236,8 Kbps GPRS Uplink/Downlink op til 85,6 Kbps |
| Grænseflader | USB 2.0 UART (U)SIM-kort(1.8V/3V ) Analog audio ADC I2C GPIO 4*4 Keypad*Camera* LCM* Antenne: Primary/GNSS*/BT* |
| Andre funktioner | USB-driver til Microsoft Windows 7/8/10 USB-driver til Linux/Android RIL understøtter Android 5.0/6.0/7.0/8.0/9.0 Firmwareopdatering via USB/FOTA TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/HTTPS/DNS RNDIS/PPP/ECM MQTT/MQTTS TLS1.2 LBS TTS |
| Certificeringer | CE#/RoHS#/REACH# |
SIMCom A7672E 4G Module Product Features
- Supports BLE and GNSS functions*
- Compact size with abundant interfaces
- Rigelig softwarefunktioner: FOD, LBS, SSL
- Form factor is compatible with the SIM7000/SIM7070 series
SIMCom A7672E 4G Module Product and More related Models
A7672G LCC+LGA
A7670E LCC+LGA
A7608SA-H LCC+LGA
A7676E LCC+LGA
A7672X LCC+LGA
A7672S LCC+LGA 85Pin
A7672E LCC+LGA 85Pin
A7672SA LCC+LGA 85Pin
A7602X-H(E/SA) LCC+LGA 163Pin
A7600E-H LCC+LGA
A7600C1 LCC+LGA 119Pin
SIM7600G R2 LCC+LGA
SIM7600G-H R2 LCC+LGA
A7600E LCC+LGA
SIM7600X LCC/LCC+LGA 87/119Pin
SIM7500X LGA 56pin
SIM7600X-H-PCIE Mini Pcie
SIM7600X-PCIE Mini pcie
SIM7600X-H LCC/LCC+LGA 87/119Pin
SIM7600X-H-M2 M.2
SIM7500-PCIE Series Mini PCie
SIMCom A7672E 4G Module Product Applications
