PLC Splitter SC/APC 1*32 ABS boks

Beskrivelse

PLC Splitter SC/APC 1*32 ABS Box is 1 x 32 PLC Fiber Splitter, Splice/Pigtailed ABS Module, 2.0mm, SC/APC, Singlemode

PLC Splitter SC/APC 1*32 ABS Box Overview

PLC Splitter SC APC 1*32 (PLC Splitter) is a kind of integrated waveguide optical power distribution device based on quartz substrate, with small size, wide operating wavelength range, høj pålidelighed, good spectroscopic uniformity, etc., especially used in passive optical networks (Ringer, GPON, etc.) to connect the central end and terminal equipment and realize the shunt of optical signals, 1×N and 2×N full series of PLC planar waveguide optical splitter, emballeringsmetoder omfatter stålrørsemballage, ABS boks, 1U rack og minimodul, There are 1×2,1×4,1×8,1×16,1×32,1×64,1×128,2×2,2×4,2×8,2×16,2×32,2×64,2×128.And for customers to customize optical splitters suitable for various occasions, the products comply with GR-1221-CORE standard.

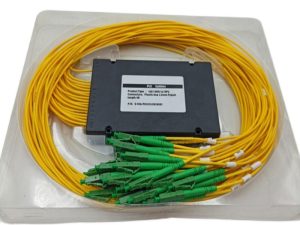

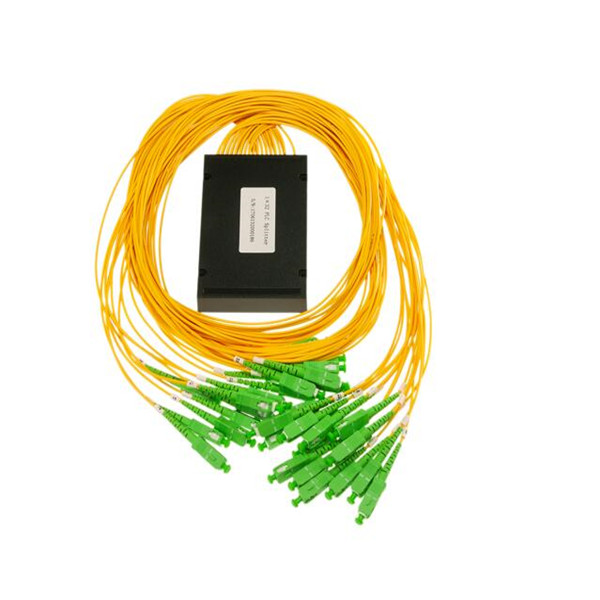

PLC Splitter SC/APC 1*32 ABS Box Pictures

PLC Splitter SC/APC 1*32 ABS Box Specifications

PLC Splitter SC/APC 1*32 ABS Box Features

• Split Input Signal Evenly into 32 Output Ports
• ≤17dB Low Insertion Loss and ≤0.3dB Low Polarization Dependent Loss
• Fully Passive Optical Branching Device
• Fits Racks, Wall-mounted Boxes, Optical Distribution Boxes, etc.
• 1260~1650nm Broad Operating Wavelengths

PLC Splitter SC/APC 1*32 ABS Box Applications

• Fiber to The Point (FTTX)
• Cable Television (nogle)
• Test Equipment
• Fiber to The Home (FTTH)
• Passive optiske netværk (PON)
• Gigabit Passive Optical Networks (GPON)
• Local Area Networks (LAN)
