Beskrivelse
Huawei S5755-H24UTM4X4Y2C Switch is a High-Quality Multi-GE switch with 12×10/100/1000M Base-T Ethernet ports, 12×100M/1/2.5/5/10G Base-T Ethernet ports, 4×1/10GE SFP+, 4×1/10/25GE SFP28, 2×40/100GE QSFP28 ports and 90W PoE++
Huawei S5755-H24UTM4X4Y2C Switch Product Overview
Huawei S5755-H24UTM4X4Y2C Switch is a brand new full 1/2.5/5/10GE switch for the Wi Fi 6/Wi Fi 7. The product builds on Huawei’s unified Platform and boasts various IDN features. For eksempel, the VXLAN functionality implements network virtualization. På samme tid, S5755 H can function as core switches for small sized campus networks and branches of medium and large sized campus networks, og fungerer også som adgangskontakter for Metropolitan Area Network. Ud over, the uplink bandwidth of WLAN APs has been increased from 2.5 Gbit/s in 802.11ac to 5 Gbit/s or 10 Gbit/s. Traditional gigabit access or Multi gigabi t bundled access cannot meet the uplink bandwidth requirements of APs. With the launch of the S5755 H series switches, the ports support 100M/1/2.5/5/10G auto sensing, meeting the bandwidth requirements of high speed wireless APs in the Wi Fi 6 æra. Ud over, Multi GE ports support 90 W PoE++, which provides high power power for powered devices (PDs) such as APs and IP cameras.

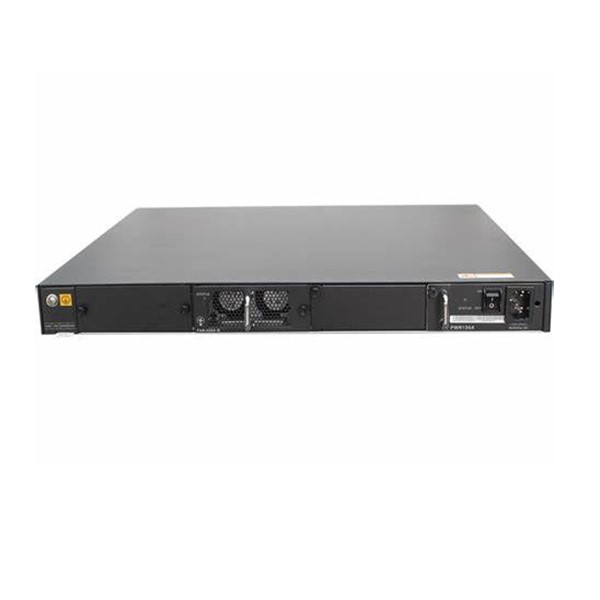

Huawei S5755-H24UTM4X4Y2C Switch Product Pictures
Huawei S5755-H24UTM4X4Y2C Switch Product Specifications
Produkt model | CloudEngine S5755-H24UTM4X4Y2C | CloudEngine S5755-H24UTM4X4Y2C-T | CloudEngine S5755-H48UTM4X4Y2C | CloudEngine S5755-H48UTM4X4Y2C-T |
Forsendelsesydelse | 450 Mps | 450 Mps | 450 Mps | 450 Mps |
Skiftekapacitet2 | 864 Gbps/2.32 Tbps* | 864 Gbps/2.32 Tbps* | 912 Gbps/2.32 Tbps* | 912 Gbps/2.32 Tbps* |
Faste havne | 12 × 10/100/1000M Base-T Ethernet ports, 12 × 100M/1/2.5/5/10G Base-T Ethernet ports, 4 x 1/10GE SFP+, 4 x 1/10/25GE SFP28, 2 x 40/100GE QSFP28 ports | 36 × 10/100/1000M Base-T Ethernet ports, 12 × 100M/1/2.5/5/10G Base-T Ethernet ports, 4 x 1/10GE SFP+, 4 x 1/10/25GE SFP28, 2 x 40/100GE QSFP28 ports | ||
PoE | Understøttet, 90 W PoE++ | |||
Strømforsyningstype | 1+1 backup af strømforsyningen | |||
MAC funktioner | IEEE 802.1d overensstemmelse | |||
Automatisk MAC-adresseindlæring og aldring | ||||
Statisk, dynamisk, og blackhole MAC-adresseindtastninger | ||||
Pakkefiltrering baseret på kilde-MAC-adresser | ||||
iPCA | Farve servicepakker direkte for at indsamle realtidsstatistikker over antallet af tabte pakker og pakketabsforhold | |||
Collecting real-time statistics on the number of lost packets and packet loss ratio at network and device levels | ||||
VXLAN | VXLAN Layer 2 og lag 3 gateways | |||
Centraliserede og distribuerede gateways | ||||
BGP-EVPN | ||||
Konfigureret gennem NETCONF-protokollen | ||||
Interoperabilitet | VBST (kompatibel med PVST/PVST+/RPVST) | |||
LNP (ligner DTP) | ||||
VCMP (ligner VTP) |
Huawei S5755-H24UTM4X4Y2C Switch Product Features
- Provide industry leading Multi GE port density, switching capacity, and packet forwardin g rate. A single switch supports a maximum of 48 100M/1G/2.5G/5G/10G Base T auto sensing ports and 1G/10G/25G/40G/100G optical uplink ports, meets various device interconnection requirements and can be seamlessly integrated into the existing network.
- Can define their own forwarding models, forwarding behavior, and lookup algorithms. Microcode programmability makes it possible to provide new services within six months, without the need of replacing the hardware. I modsætning hertil, traditional ASIC chips use a fixed forwarding architecture and follow a fixed forwarding process. Af denne grund, new services cann ot be provisioned until new hardware is developed to support the services one to three years later.
- Use the Packet Conservation Algorithm for Internet(iPCA) technology that changes the traditional metho d of using simulated traffic for fault location. iPCA technology can monitor network quality for any service flow anywhere and anytime, uden ekstra omkostninger. Den kan registrere midlertidige tjenesteafbrydelser på meget kort tid og kan identificere defekte porte nøjagtigt. This cutting edge fault detection technology turns “omfattende ledelse” til “fin granulær styring.”
Huawei S5755-H24UTM4X4Y2C Switch and More Models
S5755-H24UTM4X4Y2C 12 × 10/100/1000M Base-T Ethernet ports, 12 × 100M/1/2.5/5/10G Base-T Ethernet ports, 4 x 1/10GE SFP+, 4 x 1/10/25GE SFP28, 2 x 40/100GE QSFP28 ports 90W PoE++
S5755-H24UTM4X4Y2C-T 12 × 10/100/1000M Base-T Ethernet ports, 12 × 100M/1/2.5/5/10G Base-T Ethernet ports, 4 x 1/10GE SFP+, 4 x 1/10/25GE SFP28, 2 x 40/100GE QSFP28 ports 90W PoE++
S5755-H48UTM4X4Y2C 36 × 10/100/1000M Base-T Ethernet ports, 12 × 100M/1/2.5/5/10G Base-T Ethernet ports, 4 x 1/10GE SFP+, 4 x 1/10/25GE SFP28, 2 x 40/100GE QSFP28 ports 90W PoE++
S5755-H48UTM4X4Y2C-T 36 × 10/100/1000M Base-T Ethernet ports, 12 × 100M/1/2.5/5/10G Base-T Ethernet ports, 4 x 1/10GE SFP+, 4 x 1/10/25GE SFP28, 2 x 40/100GE QSFP28 ports 90W PoE++
Huawei S5755-H24UTM4X4Y2C Switch Ordering Info
Model | Produkt beskrivelse |
CloudEngine S5755-H24UTM4X4Y2C | S5755-H24UTM4X4Y2C (12*10/100/1000BASE-T porte, 12*100M/1/2.5/5/10G Ethernet ports, 4*10GE SFP+ porte, 4*25GE SFP28 porte, 2*100GE QSFP28-porte, PoE++, uden strømmodul) |
CloudEngine S5755H24UTM4X4Y2C-T | S5755-H24UTM4X4Y2C-T (12*10/100/1000BASE-T porte, 12*100M/1/2.5/5/10G Ethernet ports, 4*10GE SFP+ porte, 4*25GE SFP28 porte, 2*100GE QSFP28-porte, PoE++, HTM, uden strømmodul) |
CloudEngine S5755-H48UTM4X4Y2C | S5755-H48UTM4X4Y2C (36*10/100/1000BASE-T porte, 12*100M/1/2.5/5/10G Ethernet ports, 4*10GE SFP+ porte, 4*25GE SFP28 porte, 2*100GE QSFP28-porte, PoE++, uden strømmodul) |
CloudEngine S5755H48UTM4X4Y2C-T | S5755-H48UTM4X4Y2C-T (36*10/100/1000BASE-T porte, 12*100M/1/2.5/5/10G Ethernet ports, 4*10GE SFP+ porte, 4*25GE SFP28 porte, 2*100GE QSFP28-porte, PoE++, HTM, uden strømmodul) |
PAC600S56-EB | 600W PoE AC&240 V DC strømmodul |
PAC1000S56-EB | 1000 W PoE AC&240 V DC strømmodul |
PDC1000S56-EB | 1000 W PoE DC Power Module |
VENTILATOR-031A-B | Ventilator modul |
L-VxLAN-S57 | S57 Series, VxLAN-licens, pr. enhed |
N1-S57H-M-Lic | S57XX-H Series Basic SW,pr. enhed |
N1-S57H-M-SnS1Y | S57XX-H Series Basic SW,SnS,pr. enhed,1År |
N1-S57H-F-Lic | N1-CloudCampus,Fundament,S57XX-H Series,pr. enhed |
N1-S57H-F-SnS1Y | N1-CloudCampus,Fundament,S57XX-H Series,SnS,pr. enhed,1År |
N1-S57H-A-Lic | N1-CloudCampus,Fremskreden,S57XX-H Series,pr. enhed |
N1-S57H-A-SnS1Y | N1-CloudCampus,Fremskreden,S57XX-H Series,SnS,pr. enhed,1År |
N1-S57H-FToA-Lic | N1-Opgradering-Foundation til Avanceret,S57XX-H,pr. enhed |
N1-S57H-FToASnS1Y | N1-Opgradering-Foundation til Avanceret,S57XX-H,SnS,pr. enhed,1År |
Huawei S5755-H24UTM4X4Y2C Switch Product Applications
