SKU: Huawei S5720S-12TP-LI-AC Switch Kategori: Tags: ,

Beskrivelse

Huawei S5720S-12TP-LI-AC Switch is Simplified Gigabit Ethernet Switch with 8 10/100/1000Base-T Ethernet-porte, 4 Gigabit SFP, 2 multiplexed 10/100/1000Base-T Ethernet ports Combo

Huawei S5720S-12TP-LI-AC Switch Product Overview

Huawei S5720S-12TP-LI-AC Switch is based on a new generation of high-performance hardware and Huawei’s unified VRP (Alsidig Routing Platform) software platform. It supports intelligent iStack stacking, fleksibelt Ethernet-netværk, and diverse security controls. Huawei S5720S-12TP-LI-AC Switch offers users with green and easy management. , Easy to expand, low-cost Gigabit to desktop solutions. Ud over, Huawei has customized some special models for specific application scenarios and customer needs to meet the needs of different customers.

8 10/100/1000Base-T Ethernet-porte, 4 Gigabit SFP, 2 multiplexed 10/100/1000Base-T Ethernet ports Combo
AC strømforsyning
Pakkevideresendelseshastighed: 27Mpps/102Mpps
Skiftekapacitet: 336Gbps/3.36Tbps

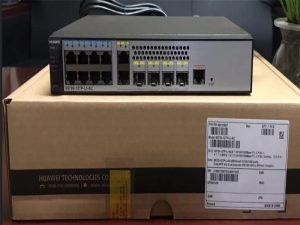

Huawei S5720S-12TP-LI-AC Switch Product Pictures

Huawei S5720S-12TP-LI-AC Switch YCICT Huawei S5720S-12TP-LI-AC Switch PRICE AND SPECS HUAWEI SWITCHESHuawei S5720S-12TP-LI-AC Switch YCICT Huawei S5720S-12TP-LI-AC Switch PRICE AND SPECS Huawei S5720S-12TP-LI-AC Switch PDF NEW AND ORIGINAL

Huawei S5720S-12TP-LI-AC Switch YCICT Huawei S5720S-12TP-LI-AC Switch PRICE AND SPECS HUAWEI SWITCHHuawei S5720S-12TP-LI-AC Switch Huawei S5720S-12TP-LI-AC Switch YCICT Huawei S5720S-12TP-LI-AC Switch PRICE AND SPEECS HUAWEI SWITCH

Huawei S5720S-12TP-LI-AC Switch Product Specifications

Mærke Huawei
Model S5720S-12TP-LI-AC
product type Gigabit Ethernet switch
Transmissionshastighed 10/100/1000Mbps
Backplane bandwidth 336Gbps/3.024Tbps
Pakkevideresendelseshastighed 27Mbps/102Mbps
MAC adresse tabel 16K
Number of ports 14
Port description 8 10/100/1000Base-T Ethernet-porte 2 multiplex 10/100/1000Base-T Ethernet ports Combo 4 Gigabit SFP
voltage AC strømforsyning
Strømforsyning Nominel spænding: 100-240V AC, 50-60Hz
Maximum voltage: 90-264V AC, 47-63Hz
12.85W
Product Size 250×180×43.6mm
Environmental standards Arbejdstemperatur: 0-1800m, 0-45°C; 1800-5000m, the highest temperature decreases by 1°C for every increase of 220m in altitude
Relativ luftfugtighed: 5%-95% (ingen kondens)

Huawei S5720S-12TP-LI-AC Switch Product Features

  • Huawei S5720S-12TP-LI-AC Switch supports SmartLink function. The S5720S-LI is connected to multiple aggregation switches through multiple links, which realizes uplink backup and greatly improves the reliability of the access-side equipment.
  • Huawei S5720S-12TP-LI-AC Switch supports complete Ethernet OAM (IEEE 802.3ah/802.1ag) for rapid detection of link failures.
  • Huawei S5720S-12TP-LI-AC Switch not only supports the traditional STP/RSTP/MSTP spanning tree protocol, but also supports Huawei’s independent innovation SEP intelligent Ethernet protection technology and the industry’s latest Ethernet ring standard ERPS. SEP is a ring network protocol dedicated to the Ethernet link layer. It is suitable for various networking such as half ring, whole ring, and cascade ring. Its protocol is simple and reliable, easy to maintain, and provides fast service switching of 50ms. ERPS is the G.8032 standard promulgated by ITU-T. This standard is based on the traditional Ethernet MAC and bridge functions, and realizes the millisecond-level fast protection switching of the Ethernet ring network

Huawei S5720S-12TP-LI-AC Switch Product and More Models

Model Produkt beskrivelse
S5720S-12TP-LI-AC S5720S-12TP-LI-AC (8 Ethernet 10/100/1000 havne, 2 Gig SFP ports, 2 of which are dualpurpose 10/100/1000 Base-T or SFP ports, AC strømforsyning)
S5720S-12TP-PWR-LI-AC S5720S-12TP-PWR-LI-AC (8 Ethernet 10/100/1000 havne, 2 Gig SFP ports, 2 hvoraf er dobbeltformål 10/100/1000 Base-T or SFP ports, PoE+, AC strømforsyning)
S5720S-28P-LI-AC S5720S-28P-LI-AC (24 Ethernet 10/100/1000 havne, 4 Gig SFP, AC strømforsyning)
S5720S-28P-PWR-LI-AC S5720S-28P-PWR-LI-AC (24 Ethernet 10/100/1000 havne, 4 Gig SFP, PoE+, AC strømforsyning)
S5720S-52P-LI-AC S5720S-52P-LI-AC (48 Ethernet 10/100/1000 havne, 4 Gig SFP, AC strømforsyning)
S5720S-52P-PWR-LI-AC S5720S-52P-PWR-LI-AC (48 Ethernet 10/100/1000 havne, 4 Gig SFP, PoE+, AC strømforsyning)
S5720S-28X-LI-AC S5720S-28X-LI-AC (24 Ethernet 10/100/1000 havne, 4 10 Gig SFP+, AC strømforsyning)
S5720S-28X-PWR-LI-AC S5720S-28X-PWR-LI-AC (24 Ethernet 10/100/1000 havne, 4 10 Gig SFP+, PoE+, AC strømforsyning)
S5720S-28X-LI-24S-AC S5720S-28X-LI-24S-AC (16 Gig SFP ports, 8 hvoraf er dobbeltformål 10/100/1000 Base-T or SFP ports, 4 10 Gig SFP+, AC strømforsyning, front power sockets, frontadgang)
S5720S-52X-LI-AC S5720S-52X-LI-AC (48 Ethernet 10/100/1000 havne, 4 10 Gig SFP+, AC strømforsyning)
S5720S-52X-PWR-LI-AC S5720S-52X-PWR-LI-AC (48 Ethernet 10/100/1000 havne, 4 10 Gig SFP+, PoE+, AC strømforsyning)
S5720S-28TP-PWR-LI- S5720S-28TP-PWR-LI-ACL (8 Ethernet 10/100/1000 PoE+, 16 Ethernet 10/100/1000, 2 Gig
ACL SFP-porte, 2 hvoraf er dobbeltformål 10/100/1000 Base-T or SFP ports, AC strømforsyning)
Power module RPS1800 Redundant Power System
