Beskrivelse
Huawei S2720-28TP-PWR-EI Switch is a next-generation access switch that provides flexible 100M, GE access ports and GE uplink ports. It offers 16×Ethernet 10/100 Base-Tx ports, 8×Ethernet 10/100/1000 Base-T porte, 2×Gig SFP ports, 2×combo Gig ports, AC power supply and PoE+
Huawei S2720-28TP-PWR-EI Switch Product Overview
The switch is well suited for enterprise campus access scenarios, featuring both 100M-to-the-desktop and GE uplink transmission. Building on next generation, high performance hardware and the Huawei Versatile Routing Platform (VRP), S2720-28TP-PWR-EI supports intelligent stack (iStack), fleksibelt Ethernet-netværk, og diversificeret sikkerhedskontrol. i øvrigt, tt provides customers with a green, easy to manage, easy to expand, and cost effective 100M to the desktop solution.

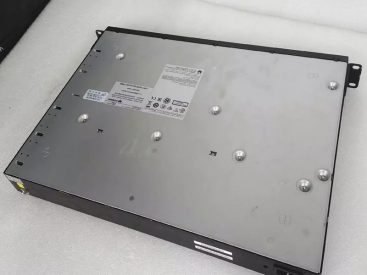

Huawei S2720-28TP-PWR-EI Switch Product Pictures
Huawei S2720-28TP-PWR-EI Switch Product Specifications
| Produktmodeller | S2720-12TP-EI S2720-12TP-PWR-EI |
S2720-28TP-PWR-EI-L S2720-28TP-EI S2720-28TP-PWR-EI |
S2720-52TP-EI S2720-52TP-PWR-EI |
| Skiftekapacitet | 68 Gbit/s | 68 Gbit/s | 336 Gbit/s |
| Forsendelsesydelse | 12.6 mpps | 20.4 mpps | 34.8 mpps |
| Faste havne | Downlink: 4 x 10/100 Base-TX Ethernet ports; 4 x GE ports | Downlink: 16 x 10/100 Base-TX Ethernet ports; 8 x GE ports | Downlink: 32 x 10/100 Base-TX Ethernet ports; 16 x GE ports |
| Uplink: 4 x GE ports | Uplink: 4 x GE ports | Uplink: 4 x GE ports | |
| MAC-adressetabel | 16K MAC-adresseindtastninger Configurable aging time of MAC addresses Blackhole MAC address entries Limit on the number of MAC addresses learned on a port |
||
| VLAN funktioner | 4K VLANs VLAN-tildeling baseret på MAC-adresser, protokoller, IP undernet, politikker, and interfaces Port-based QinQ |
||
| IP-routing | Static routing HVIL I FRED, RIPng, and OSPF |
||
| Interoperabilitet | VLAN-baseret spændingstræ (VBST) (samvirke med PVST, PVST+, og RPVST) Link-type forhandlingsprotokol (LNP) (ligner DTP) VLAN Central Management Protocol (VCMP) (ligner VTP) |
||
Huawei S2720-28TP-PWR-EI Switch Product Features
- Diverse Port Types
A mix of 100M and 1000M ports with diverse access ports.
- iStack
Intelligent Stack (iStack) improves device reliability and scalability, while significantly reducing system Operations and Maintenance (O&M) costs. This allows for unified configuration and management of the entire stack system.
- High Performance
Support for Routing Information Protocol (HVIL I FRED) and Open Shortest Path First (OSPF), offering leading routing performance in the 100M switch field.
Huawei S2720-28TP-PWR-EI Switch and More S2720-EI Models
S2720-12TP-EI
S2720-12TP-PWR-EI
S2720-28TP-EI
S2720-28TP-EI-AC
S2720-28TP-PWR-EI
S2720-28TP-PWR-EI-L
S2720-52TP-EI
S2720-52TP-PWR-EI
Huawei S2720-28TP-PWR-EI Switch Ordering Info
S2720-12TP-EI (4 × Ethernet 10/100 Base-Tx ports, 4 × Ethernet 10/100/1000 Base-T porte, 2 × Gig SFP ports, 2 ×combo Gig ports, AC 110/220V)
S2720-12TP-PWR-EI (4 × Ethernet 10/100 Base-Tx ports, 4 × Ethernet 10/100/1000 Base-T porte, 2 × Gig SFP ports, 2 ×combo Gig ports,124W PoE AC 110/220V)
S2720-28TP-PWR-EI (16 × Ethernet 10/100 Base-Tx ports, 8 × Ethernet 10/100/1000 Base-T porte, 2 × Gig SFP ports, 2 ×combo Gig ports,370W PoE AC 110/220V)
S2720-28TP-EI (16 × Ethernet 10/100 Base-Tx ports, 8 × Ethernet 10/100/1000 Base-T porte, 2 × Gig SFP ports, 2 ×combo Gig ports, AC 110/220V)
S2720-52TP-EI (32 × Ethernet 10/100 Base-Tx ports, 16 × Ethernet 10/100/1000 Base-T porte, 4 × Gig SFP ports,
AC 110/220V)
S2720-52TP-PWR-EI (32 × Ethernet 10/100 Base-Tx ports, 16 × Ethernet 10/100/1000 Base-T porte, 4 × Gig SFP ports, 370W PoE AC 110/220V)
Huawei S2720-28TP-PWR-EI Switch Product Applications
