Huawei PAC1000D5412 Power Module

Beskrivelse

Huawei PAC1000D5412 Power Module is 1000W AC PoE power module for S6720-32C-PWH-SI-AC、S6720-32C-PWH-SI、S6720-52X-PWH-SI、S6720-56C-PWH-SI-AC、S6720-56C-PWH-SI.

Huawei PAC1000D5412 Power Module Product Overview

Huawei PAC1000D5412 Power Module is 1000W AC PoE power module for S6720-32C-PWH-SI-AC、S6720-32C-PWH-SI、S6720-52X-PWH-SI、S6720-56C-PWH-SI-AC、S6720-56C-PWH-SI.

S6720 is a new generation of multi-rate 10 Gigabit box switch independently developed by Huawei. It provides full wire-speed multi-rate 100M/1G/2.5G/5G/10G access interface and 40GE uplink interface, enabling high-rate AP access, High-density access of mega-servers and high-density 40GE cores or convergence of campus networks are possible. På samme tid, S6720-SI supports rich business features, complete security control strategies, and rich QoS features to meet the scalability, pålidelighed, manageability, and security challenges of campus and data center networks.

This series of switches provide a variety of security protection functions. Support DOS (Denial of Service) anti-attack, network anti-attack, user anti-attack and other functions. Blandt dem, DOS-type anti-attack mainly includes SYN Flood, Jord, Smølf, ICMP oversvømmelse. Network anti-attack mainly refers to STP BPDU/Root attacks. User protection against attacks involves DHCP spoofing attacks, man-in-the-middle attacks, IP/MAC spoofing attacks, DHCP-anmodningsoversvømmelser, DOS attacks that change the CHADDR value, og så videre.

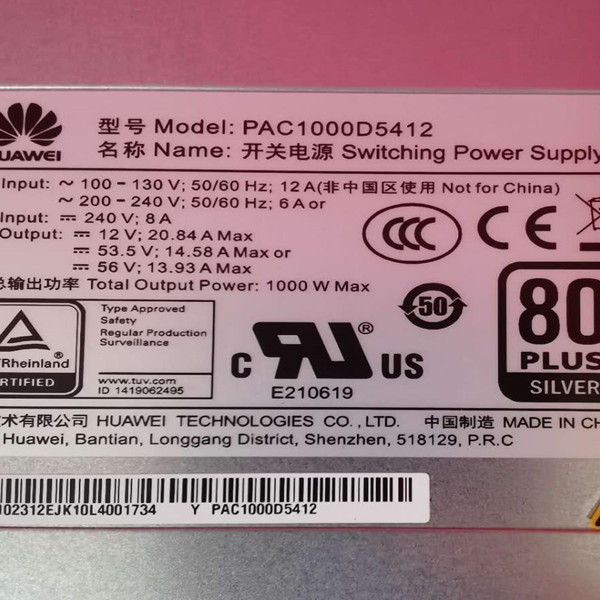

Huawei PAC1000D5412 Power Module Product Pictures

Huawei PAC1000D5412 Power Module Product Specifications

Vare	Beskrivelse
Mærke	Huawei
Varenummer	02312EJK
Model	PAC1000D5412
Dimensioner (H x B x D)	42 mm x 99 mm x 204 mm (1.7 i. x 3.9 i. x 8.0 i.)
Vægt	1.1 kg (2.43 lb)
Nominel indgangsspændingsområde	100 V AC til 130 V AC, 50/60 Hz
	200 V AC til 240 V AC, 50/60 Hz
	240 V DC
Maksimalt indgangsspændingsområde	90 V AC til 290 V AC, 47 Hz til 63 Hz
	190 V DC til 290 V DC
Indgangsstrøm	100 V AC til 130 V AC: 12 EN
	200 V AC til 240 V AC: 6 EN
	240 V DC: 8 EN
Maksimal udgangsstrøm	12 V: 20.84 EN
	53.5 V: 14.58 EN
	56 V: 13.93 EN
Maksimal udgangseffekt	100 V AC til 130 V AC input:
	PoE: 754.6 W
	Total: 900 W
	200 V AC til 240 V AC input and 240 V DC indgang:
	PoE: 754.6 W
	Total: 1000 W
Driftshøjde	100 V AC til 130 V AC: 0-3000 m
	200 V AC til 240 V AC: 0-5000 m
	240 V DC: 0-5000 m

Huawei PAC1000D5412 Power Module Product Features

• Hot swapping

Understøttet

• PoE strømforsyning

Provide a maximum of 754.6 W PoE power.

• Input protection

Provide protection against input overvoltage and input undervoltage.

• Udgangsbeskyttelse

Provide protection against output overvoltage, output overcurrent, and output short-circuit.

• Overtemperaturbeskyttelse

Når temperaturen på strømmodulet overstiger en specificeret tærskel (80°C or 176°F), strømmodulet holder op med at levere strøm. Når temperaturen falder inden for det normale område, strømmodulet genoptager automatisk strømforsyningen.

Huawei PAC1000D5412 Power Module Product Panels

1. Fastspændt skrue	2. Airflow flag (air out)	3. Indikator	4. Ventilator
5. Håndtag	6. AC power socket	7. AC power cable locking strap

Huawei PAC1000D5412 Power Module Product and more Power Units

150W AC strømmodul (ES0W2PSA0150)
150W DC strømmodul (ES0W2PSD0150)
170W AC strømmodul (W0PSA1701)
170W DC strømmodul (ES5M0PSD1700)
260W DC strømforsyningsmodul (PDC260S12-DL)
300W AC strømmodul (PAC300S12-CL)
350W DC strømmodul (PDC-350WA-B)
500W DC strømmodul (LS6W2PSD0500)
600W AC strømmodul (PAC-600WA-B)
600W AC strømmodul (PAC600S12-CB)
500W AC strømmodul (W0PSA5000)
580W AC PoE Power Modul (W2PSA0580)
650W DC PoE strømmodul (PDC-650WA-BE)
1000W AC PoE strømmodul (PAC1000D5412)
1000W DC strømmodul (PDC1000S12-DB)
1150W AC PoE strømmodul (W2PSA1150)
870W PoE strømmodul (LS5W2PSA0870, 15Et ensrettermodul)

Huawei PAC1000D5412 Power Module Product Applications
