Huawei CE7850-32Q-EI Switch

Beskrivelse

Huawei CE7850-32Q-EI Switch is a next-generation 40G Ethernet switch with 32-Port 40GE QSFP+, which is designed for data centers and high-endcampus networks

Huawei CE7850-32Q-EI Switch Product Overview

The switch provides high-performance, high-density 40GE ports, and low latency. The CE7800 hardware has an advanced architectural design with 40GE QSFP+ports. By using Huawei VRP8 software platform, CE7850-32Q-EI offers extensive data center servicefeatures and high stacking capability. Ud over, the airflow direction (front-to-back or back-to-front) canbe changed. CE7800 switches can also work with CE12800/CE8800/CE6800/CE5800 switches to build an elastic,virtualized, high-quality fabric that meets the requirements of cloud-computing data centers. i øvrigt, CE7850-32Q-EI can function as core or aggregation switches on data center networks to help enterprisesand carriers build a scalable data center network platform in the cloud computing era. They can also be usedas aggregation or core switches for enterprise campus networks.

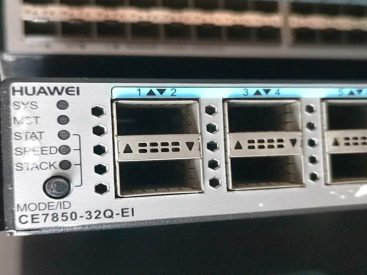

Huawei CE7850-32Q-EI Switch Product Pictures

Huawei CE7850-32Q-EI Switch Product Specifications

Vare	CE7850-32Q-EI
Havne	32 *40GE QSFP+
Skiftekapacitet	2.56 Tbit/s
Forsendelsesydelse	1,440 Mps
Airflow design	Front-to-back or back-to-front
Device	iStack
virtualisering	SVF
Network virtualization	M-LAG
	TRILL
	VXLAN routing og brobygning
	VPN
VM-awareness	Agile Controller
Network convergence	FCoE
	DCBX, PFC, ETS
Programmerbarhed	OpenFlow
	OPS
	Puppet, and OVSDB plugins released on open source websites
	Linux container for open source and customization programming
Traffic analysis	NetStream
	sFlow
VLAN	Adding access, trunk, and hybrid interfaces to VLANs
	Default VLAN
	QinQ
	MUX VLAN
MAC adresse tabel	Dynamic learning and aging of MAC addresses
	Statisk, dynamisk, og blackhole MAC-adresseindtastninger
	Pakkefiltrering baseret på kilde-MAC-adresser
	MAC address limiting based on ports and VLANs
IP routing	IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
	IPv6 routing protokoller, such as RIPng, OSPFv3, IS-ISv6, and BGP4+
IPV6	IPv6 Neighbor Discovery (ND)
	Path MTU Discovery (PMTU)
	TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6
MPLS	MPLS
Dimensioner (B x D x H)	442 mm x 607 mm x 43.6 mm
Vægt (fully loaded)	11 kg
Miljøparametre	Driftstemperatur: 0oC to 40oC (0 m to 1,800 m) Stuetemperatur: -40oC to +70oC
	Relativ luftfugtighed: 5% RH til 95% RH, ikke-kondenserende
Driftsspænding	AC: 90 V til 290 V
Maksimalt strømforbrug	≤ 431 W

Huawei CE7850-32Q-EI Switch Product Features

• CE7800 supports Super Virtual Fabric (SVF), which can virtualize multiple homogeneous or heterogeneous physical switches into one logical switch to simplify network management and improve reliability.
• CE7800 supports Fibre Channel over Ethernet (FCoE), som tillader opbevaring, data, og computertjenester, der skal transmitteres på ét netværk, reduktion af omkostningerne til netværksopbygning og vedligeholdelse.
• CE7800 can work with a mainstream virtualization platform. Som den højtydende, hardware-gateway for et overlay-netværk (VXLAN), the CE7800 can support more than 16M tenants.
• CE7800 supports Zero Touch Provisioning (ZTP). ZTP enables the CE7800 to automatically obtain and load version files from a USB flash drive or file server, frigør netværksingeniører fra konfiguration eller implementering på stedet. ZTP reducerer arbejdsomkostninger og forbedrer effektiviteten af ​​enhedsimplementering.

Huawei CE7850-32Q-EI Switch Product Ordering Info

Varenummer	Part Model	Part Description
2358859	CE7850-32Q-EI	CE7850-32Q-EI Switch (32-Port 40GE QSFP+, Without Fan Box and Power Module)
2359250	CE7850-EI-B00	CE7850-32Q-EI Switch (2*600W AC Power Modul, 2*FAN boks, Bagbords udstødning)
02350EYY	CE7850-32Q-EI-F	CE7850-32Q-EI Switch (32-Port 40G QSFP+, 2*FAN boks, Bagbords udstødning, Uden strømmodul)
02350FAB	CE7850-32Q-EI-B	CE7850-32Q-EI Switch (32-Port 40G QSFP+, 2*FAN boks, Bagbords indtag, Uden strømmodul)
02350EYQ	CE7850-EI-B-B0A	CE7850-32Q-EI Switch (2*600W AC Power Modul, 2*FAN boks, Bagbords indtag)
Mainframe
CE7850-EI-B00	CE7850-32Q-EI Switch(2*600W AC Power Modul,2*FAN boks, Port side exhaust)
CE7850-32Q-EI	CE7850-32Q-EI Switch(32-Port 40GE QSFP+, Without Fan and Power Module)
Ventilator boks
FAN-40HA-F	Ventilator boks(HA, Forside til Bagside, FAN panel sideindtag)
FAN-40HA-B	Ventilator boks(HA, Tilbage til forsiden, FAN panel sideudstødning)
Strøm
PAC-600WA-F	600W AC Power Modul(Forside til Bagside, Power panel sideindtag)
PAC-600WA-B	600W AC Power Modul(Tilbage til forsiden, Power panel sideudstødning)
Software
CE-LIC-VXLAN	VXLAN function
CE78-LIC-FCF16	CloudEngine 7800 FCF 16 Ports license
CE78-LIC-FCFAL	CloudEngine 7800 FCF alle havne
CE78-LIC-NPV	CloudEngine 7800 FCOE NPV Function

Huawei CE7850-32Q-EI Switch Product Applications
