Beskrivelse
Huawei CE-MPUD-HALF Board is the main processing unit of the device and is responsible for system control, ledelse, and monitoring
Huawei CE-MPUD-HALF Board Product Overview
Huawei CE-MPUD-HALF Board is CE16800 Main Processing Unit D (halv bredde)
CloudEngine 16800 is Huawei’s first data center switch for the AI era. The software platform is based on Huawei’s VRP8 operating system. On the basis of providing stable, pålidelige og højtydende L2/L3-lagsskiftetjenester, det bygger en intelligent, minimalistisk, sikker og åben datacenter cloud netværksplatform for kunder.
CloudEngine 16800 series adopts advanced hardware architecture design, with industry-leading Clos switching architecture without backplane and industrial-grade reliability, as well as strict front and rear air duct design, and supports rich data center features. Ud over, CloudEngine 16800, as a new generation core switch, adopts a variety of green energy-saving innovative technologies to greatly reduce equipment energy consumption.

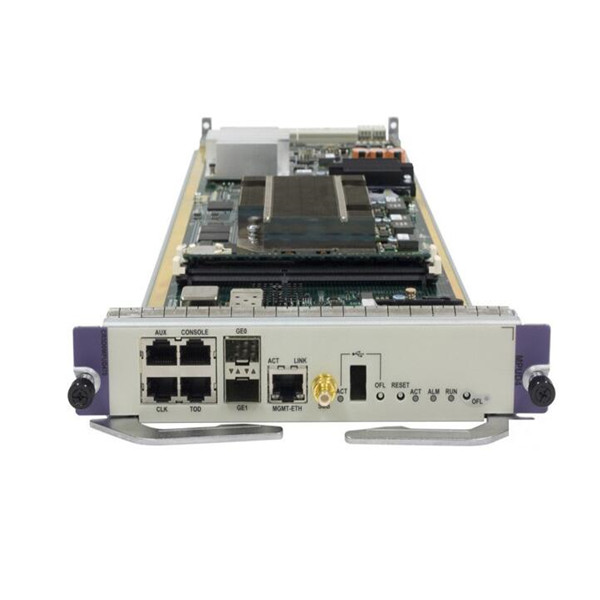

Huawei CE-MPUD-HALF Board Product Pictures
Huawei CE-MPUD-HALF Board Product Specifications
| Vare | Detaljer |
| Varenummer | 3058876 |
| Silkscreen | CE-MPUD-HALV |
| Model | CE-MPUD-HALV |
| Første understøttede version | V200R005C20 |
| Beskrivelse | CE16800 Hovedbehandlingsenhed D (halv bredde) |
| Dimensioner uden emballage (H x B x D) | 45.7 mm x 215 mm x 522.5 mm (1.80 i. x 8.46 i. x 20.57 i.) |
| Vægt uden emballage | 3.1 kg (6.83 lb) |
| CPU | 16-core, 1.85 GHz clockhastighed |
| Blitz | 4 GB |
| Hukommelse | Standard 16 GB |
| Typisk strømforbrug | 58 W |
| Maksimalt strømforbrug | 82 W |
| Typisk varmeafledning | 198 BTU/time |
| Maksimal varmeafledning | 280 BTU/time |
| Produkt certificering | Overholdelse af sikkerhedsstandarder |
| Overholdelse af EMC-standarder | |
| Overholdelse af miljøstandarder |
Huawei CE-MPUD-HALF Board Product Features
- Device management and maintenance
The CE-MPUD-HALF provides management ports for managing and maintaining the system.
- Device monitoring
The CE-MPUD-HALF integrates a monitoring module. The monitoring module provides the monitoring plane, which allows administrators to remotely power on, power off, and reset the card, upgrade firmware, monitor card temperature, voltage, and power, manage asset information, and diagnose system faults.
- Out-of-band communication between cards
The CE-MPUD-HALF integrates a LAN switch module that provides out-of-band communication between cards. The LAN switch module completes control, overvågning, maintenance, and message exchange between SFUs and LPUs.
- Route calculation
The CE-MPUD-HALF processes all routing protocol packets, which are sent from the forwarding engine.
- The CE-MPUD-HALF broadcasts and filters routing protocol packets, and downloads routing policies from the policy server.
- Data configuration
The CE-MPUD-HALF stores system configuration data, startup files, upgrade software, and system logs.
- Data saving
The CE-MPUD-HALF uses NAND flash to save data files.
Huawei CE-MPUD-HALF Board Product Indicators
| 1. Kørestatusindikator | 2. Active/Standby status indicator | 3. Reset button | 4. Stack status indicator | 5. USB-based deployment indicator |
| 6. ETH port indicator | 7. GE electrical port indicator | 8. SFP+ optical port indicator | 9. High-precision clock optical transceiver indicator | – |
Huawei CE-MPUD-HALF Board and the related Boards
CE-MPUD-HALV (CE16800 Hovedbehandlingsenhed D (halv bredde))
CE-MPUD-HK (CE16800 Main Processing Unit D-HK (halv bredde))
CE-MPUE-HALF (CE16800 Main Processing Unit E (halv bredde))
CE-MPUD-FULD (CE16800 Hovedbehandlingsenhed D (fuld bredde))
CE-MPUD-FK (CE16800 Main Processing Unit D-FK (fuld bredde))
CE-MPUE-FULL (CE16800 Main Processing Unit E (fuld bredde))
Huawei CE-MPUD-HALF Board Product Applications
