Beskrivelse
HG8546M5 FTTH is a routing ONT of Huawei’s FTTH solution,med 1 GRYDER, 1 Gigabit Ethernet interface, 1 iTV, 1 USB2.0 and 2.4G Wi-Fi interface.
HG8546M5 FTTH Product Overview
HG8546M5 FTTH is a routing type optical terminal unit for FTTH solution. Through high-performance forwarding capabilities, it effectively guarantees the service experience of data and high-definition video, and gives for FTTH deployment Ideal terminal solutions and future-oriented service support capabilities.
With the emergence of 4K/8K/VR high-definition video services, the FTTH industry has entered a new round of vigorous development. Business requirements for bandwidth are getting higher and higher, and the solution of Gigabit fiber to the home is attracting attention from operators. Huawei’s innovative all-optical access solutions have been applied to more than 88 leading global operators.
På samme tid, Huawei’s innovative QuickODN has brought a technological change to the construction of optical fiber infrastructure. The pre-connection technology realizes the plug and play of the optical cable without fusion splicing. The unequal ratio optical splitting technology greatly reduces the amount of optical cable used, realizes the standardization of construction, and provides great help for the improvement of construction efficiency.

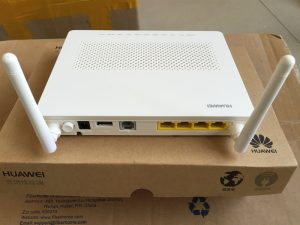

HG8546M5 FTTH Product Pictures
HG8546M5 FTTH Product Specifications
| model | HG8645M5 |
| Havn | 1 phone+1 Gigabit+2 100M+1iTV+1USB+2.4G Wi-Fi |
| Vægt | Ca. 180 g |
| Arbejdstemperatur | 0°C ～ +40°C |
| Dimensioner (h×w× d) | 52mm x 105mm x 30mm (excluding antenna and foot pad) |
| Statisk kraft | 3.6 W |
| Optisk fiber interface | SC/UPC |
| Working environment humidity | 5% RH ～ 95% RH, ikke-kondenserende |
| Strømadapterindgang | 170 ～ 240 V AC, 50/60 Hz |
| Indikator lys | Power/Fiber/Broadband/Wireless/Storage |
| Whole machine power supply | 11 ～ 14 V DC, 1EN |
| Maksimalt strømforbrug | 12 W |
| Network side interface | GPON/EPON |
| The optical fiber connector | SC/UPC |
| Lightning protection specifications | GE port: common mode 6kV, differential mode 1.5kV |
| Supporting AC power supply: common mode 6kV, differential mode 6kV, impulse current differential mode 3kA | |
| Indikator lys | PWR/PON/LOS/LAN/PoE+/PoE++ |
| GPON interface | GPON: Klasse B+ |
| Modtagelse af følsomhed: -27dBm | |
| Overload optical power GPON: -8dBm/EPON: -3dBm | |
| Bølgelængde: opstrøms 1310nm, nedstrøms 1490nm | |
| Wavelength blocking filter (WBF) supporting G.984.5 protocol | |
| Autentificeringsmetode: SN/Adgangskode/LOID(GPON) | |
| To-vejs FEC (Forward Error orrection) | |
| DBA supporting SR and NSR | |
| GE electrical interface | VLAN Tag/Tag stripping based on Ethernet port |
| 1:1 VLAN/N:1 VLAN/VLAN transparent transmission | |
| Q i Q VLAN | |
| MAC-adresserestriktioner | |
| Læring af MAC-adresser | |
| Gigabit port supports 10Mbit/s, 100Mbit/s, 1000Mbit/s adaptive | |
| 100Mbit/s port supports 10Mbit/s, 100Mbit/s adaptive | |
| 2.4G Wi-Fi | IEEE 802.11 b/g/n |
| 2×2 MIMO | |
| Antenneforstærkning: 2dBi | |
| WMM (Wi-Fi Multi Media) | |
| Multiple SSID | |
| WPS | |
| Luftgrænsefladehastighed: 300 Mbit/s | |
| Phone port | The maximum number of phones connected to one port in parallel: 4 REN Support G.711A/u, G.722, G.729a/b codec |
| Understøtter T.30/T.38/G.711 fax | |
| DTMF | |
| •Emergency call (SIP protokol) |
HG8546M5 FTTH Product Features
- PON characteristics
Class B+ Receiving sensitivity: -27dBm Overload optical power GPON: -8dBm/EPON: -3dBm Wavelength: opstrøms 1310nm, downstream 1490nm Wavelength blocking filter (WBF) supporting G.984.5 protocol Authentication method: SN/Adgangskode/LOID(GPON ) To-vejs FEC (Forward Error orrection) DBA supporting SR and NSR - Ethernet access capability
Ethernet-baseret VLAN Tag/Tag stripping 1:1 VLAN/N:1 VLAN/VLAN transparent transmission Q in Q VLAN MAC address restriction MAC address learning Gigabit port supports 10Mbit/s, 100Mbit/s, 1000Mbit/s adaptive 100 Mega port supports 10Mbit/s, 100Mbit/s adaptive - Wi-Fi access capability
IEEE 802.11 b/g/n 2×2 MIMO antenna gain: 2dBi WMM (Wi-Fi Multi Media) Multi-SSID WPS air interface rate: 300 Mbit/s
HG8546M5 FTTH Product and More Related Models
EPON/ GPON ONT
GEPON ONT
HG8010 EPON ONT, 1*LAN engelsk firmware
HG8310 EPON ONT, 1*LAN engelsk firmware
HG8110 EPON ONT, 1*LAN+1*Voice engelsk firmware
HG8120 EPON ONT, 2*LAN+1*Voice engelsk firmware
HG8240 EPON ONT, 4*LAN+2*Voice engelsk firmware
HG8346R EPON ONT, 4*LAN+2*Voice+WIFI engelsk firmware
HG8245 EPON ONT, 4*LAN+2*Voice+WIFI engelsk firmware
GPON ONT
EG8120L GPON med én GE-port, én POTS-port, og en FE-port.
HG8310M GPON ONT, 1*LAN engelsk firmware
HG8010/HG8010C GPON ONT, 1*LAN engelsk firmware
HG8311/HG8110/HG8110F GPON ONT, 1*LAN+1*VOICE Engelsk Firmware SIP
HG8120C/HG8120F/HG8120/HG8321/HG8321R GPON ONT, 2LAN+VOICE Engelsk Firmware SIP
HG8340M/HG8540/HG8040 GPON ONT, 4FE engelsk firmware SIP
HG8342/HG8342R/HG8342M/HG8240 GPON ONT, 4FE+2VOICE Engelsk Firmware SIP
HG8240/HG8240H GPON ONT, 4GE+2VOICE engelsk firmware SIP
HG8345R intern antenne GPON ONT, 4FE+WIFI (intern antenne)Engelsk firmware SIP
HG8345R ekstern antenne GPON ONT, 4FE+WIFI (ekstern antenne)Engelsk firmware SIP
HG8546M GPON ONT, 1GE+3FE+VOICE+WIFI, Engelsk firmware SIP
HG8346M/HG8245A/HG8346R GPON ONT, 4FE+2VOICE+WIFI (intern antenne)Engelsk firmware SIP
HG8346R ekstern antenne GPON ONT, 4FE+2VOICE+WIFI (ekstern antenne)Engelsk firmware SIP
HG8245C2 GPON ONT, 2GE+2FE+2VOICE+WIFI Engelsk Firmware SIP
HG8245H external antenna GPON ONT, 4GE+2VOICE+WIFI ( ekstern antenne)sort farve engelsk SIP
HG8245H GPON ONT, 4GE+2VOICE+WIFI Engelsk Firmware SIP ONT
HG8247 GPON/EPON ONT, 4GE+2VOICE+WIFI+CATV Engelsk Firmware SIP
HG8546M5 FTTH Product Applications
