GYFTZA53-32~36Xn Optic Cable good price ycict
GYFTZA53-32~36Xn Optic Cable good price ycict
GYFTZA53-32~36Xn Optic Cable GYFTZA53 ycict
GYFTZA53-32~36Xn cable ycict
GYFTZA53-32~36Xn good price ycict

GYFTZA53-32~36Xn Optic Cable

GYFTZA53-26~30Xn Optic Cable
GYFTZA53-38~42Xn price and specs ycict GYFTZA53-38~42Xn Optic Cable
SKU: GYFTZA53-32~36Xn Optic Cable Kategori: Tags: ,

Beskrivelse

GYFTZA53-32~36Xn Optic Cable is Loose Tube Layer Stranded Non-metallic Reinforced Core Armored Flame-retardant Optical Cable

GYFTZA53-32~36Xn Optic Cable Product Overview

GYFTZA53 Optic Cable is designed for superior performance and durability in outdoor communication networks. Colored optical fibers are housed in a high-modulus loose tube filled with thixotropic gel, providing excellent sealing and water-blocking protection. At the core, a non-metallic strength member (FRP) offers outstanding tensile strength and structural stability without electromagnetic interference.
The loose tube and filler ropes are stranded around the central core to form a compact, circular cable structure, with the interstices filled with water-blocking gel for enhanced moisture resistance. A coated aluminum tape is longitudinally wrapped and covered with a polyethylene inner sheath, providing an additional layer of protection. The cable is further reinforced with double-sided coated steel tape armor, forming a robust, flame-retardant outer layer to ensure safety and reliability in high-risk environments.
This structure makes GYFTZA53 cable an excellent choice for applications requiring flame resistance, moisture protection, and high mechanical performance in demanding outdoor settings.

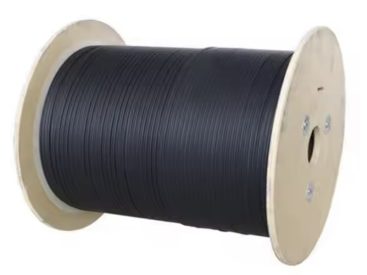

GYFTZA53-32~36Xn Optic Cable Product Pictures

GYFTZA53-32~36Xn Optic Cable ycictGYFTZA53-32~36Xn Optic fiber cable ycict

GYFTZA53-32~36Xn Optic Cable specs ycictGYFTZA53-32~36Xn Optic Cable datasheet ycict

GYFTZA53-32~36Xn Optic Cable Product Specifications

Fiber optic cable model
(I trin på 2 fiber)		 Antal fibre Antal kabinetter Number of infill ropes Reference cable weight （kg/km） Trækkraft er tilladt
Langsigtet/kortvarig
(N)		 Tilladelig squashkraft
Langsigtet/kortvarig
(N/100mm)		 Bøj radius
Statisk/dynamisk
(mm)
GYFTZA53-2~6Xn 2~ 6 1 7 275 1000/3000 1000/3000 12.5D/25D
GYFTZA53-8~12Xn 8~12 2 6 275
GYFTZA53-14~18Xn 14~ 18 3 5 275
GYFTZA53-20~24Xn 20~24 4 4 275
GYFTZA53-26~30Xn 26~ 30 5 3 275
GYFTZA53-32~36Xn 32~36 6 2 275
GYFTZA53-38~42Xn 38~42 7 1 275
GYFTZA53-44~48Xn 44~48 8 0 275
GYFTZA53-50~60Xn 50~ 60 5 3 290
GYFTZA53-62~72Xn 62~ 72 6 2 290
GYFTZA53-74~84Xn 74~ 84 7 1 290
GYFTZA53-86~96Xn 86~ 96 8 0 290
GYFTZA53-98~108Xn 98~ 108 9 1 327
GYFTZA53-110~120Xn 110~ 120 10 0 327
GYFTZA53-122~132Xn 122~ 132 11 1 384
GYFTZA53-134~144Xn 134~ 144 12 0 384
Fiber type Attenuation （+20℃） Båndbredde Numerisk blænde Fiberoptisk kabelafskæringsbølgelængde
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 — — ≤0,36dB/km ≤0,22dB/km — — — ≤1260nm
G.655 — — ≤0,40db/km ≤0,23dB/km — — — ≤1450nm
50/125µm ≤3.3db/km ≤1.2db/km — — ≥500MHz · km ≥500MHz · km 0.200± 0,015 allerede —
62.5/125µm ≤3,5 dB/km ≤1.2db/km — — ≥200MHz · km ≥500MHz · km 0.275± 0,015 allerede —

GYFTZA53-32~36Xn Optic Cable Product Features

  • Constructed from high-modulus material, the loose tube offers excellent resistance to hydrolysis and high mechanical strength, ensuring long-term reliability and durability.
  • The loose tube is filled with thixotropic gel, providing essential sealing and water-blocking protection to safeguard the optical fibers from environmental moisture and damage.
  • The outer sheath is made of a flame-retardant material, delivering superior fire resistance to meet safety requirements in high-risk environments.
  • The central strength member is a non-metallic FRP (Fiber Reinforced Plastic) core, offering excellent tensile strength and structural integrity without electromagnetic interference.
  • Engineered to perform reliably under mechanical stress and across a wide range of temperatures, making it suitable for various outdoor environments.
  • Longitudinally wrapped coated aluminum tape provides effective moisture resistance, enhancing the cable’s durability in wet conditions.
  • The cable’s armor features double-sided coated steel tape, offering enhanced protection against moisture ingress and mechanical impacts, ensuring reliability in challenging environments.

GYFTZA53-32~36Xn Optic Cable Product and More Optic Cables

Stranded Flame Retardant Fiber Optic Kabel (Gytzs)
Stranded loose jacket non--enrmoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core -enrmored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core slain -enrmored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTA)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire -enrmored fiber optic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced ENrmoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary -enrmored fiber optic cable(GYTY53)
Loose sleeve stranded light -enrmored fiber optic cable (GYTS)
Stranded loose jacket unarmoured fiber optic cable (Fremhæver)

GYFTZA53-32~36Xn Optic Cable Product Applications

  • Underground Duct Installations:

Suitable for underground ducts, as the water-blocking gel and aluminum tape provide excellent protection against moisture ingress.

  • Tunnel and Subway Systems:

Designed for use in tunnels, subways, and confined spaces, ensuring flame retardancy and reliable communication in challenging conditions.

  • Coastal and High-Humidity Areas:

Effective in regions prone to heavy rain, high humidity, or coastal environments, with robust moisture-blocking and corrosion-resistant properties.

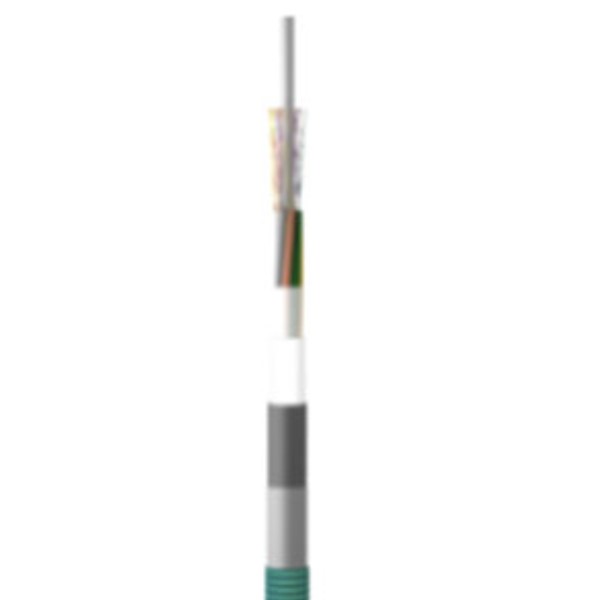

GYFTZA53-32~36Xn Optic Cable Product Structure

GYFTZA53-32~36Xn cable structure
