Beskrivelse
GYDTA-144Xn Optic Cable is Loose sleeve stranded unarmored fiber strip cable
GYDTA-144Xn Optic Cable Product Overview
The structure of the GYDTA fiber optic cable is that 4, 6, 8, og 12 fiber strips are sleeved into a loose tube made of high modulus material, Og det løse rør er fyldt med en vandtæt forbindelse. I midten af kernen er en metalforstærkende kerne, Og for nogle kernekabler, et lag polyethylen (Pe) presses ud af metalforstærkende kerne. The loose tube and the filling rope are twisted around the central reinforcing core to form a compact and round core, and the gaps in the core are filled with water-blocking filler. Plastic-coated aluminum tape (APL) is longitudinally wrapped and then extruded into a polyethylene sheath to form a cable.

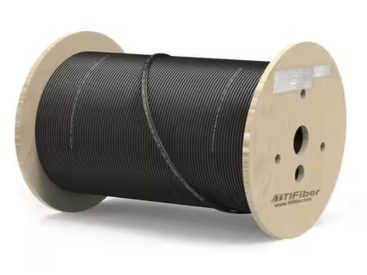

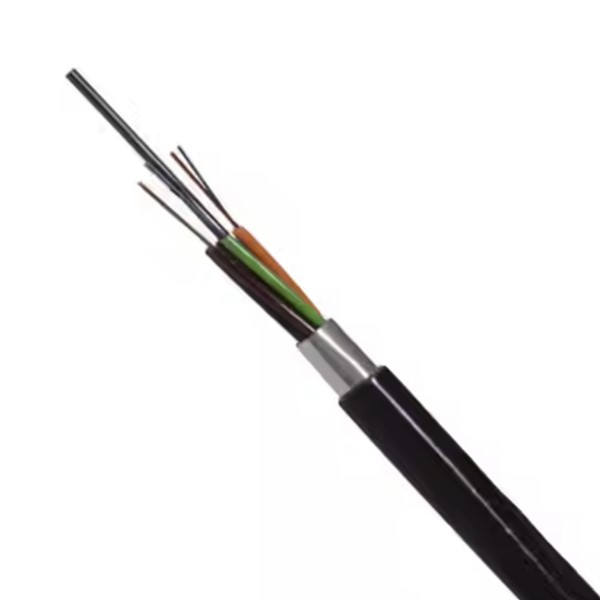

GYDTA-144Xn Optic Cable Product Pictures
GYDTA-144Xn Optic Cable Product Specifications
| Fiberoptisk kabelmodel (I trin på 2 fiber) | Antal fibre | Antal kabinetter | Number of infill ropes | Reference cable weight（kg/km) | Trækkraft er tilladt Langsigtet/kortvarig (N) |
Tilladelig squashkraft Langsigtet/kortvarig (N/100mm) |
Bøj radius Statisk/dynamisk (mm) |
|
| GYDTA-48Xn | 4×12 | 1 | 3 | 265 | 600/1500 | 300/1000 | 10D/20D | |
| GYDTA-96Xn | 8×12 | 2 | 2 | 265 | ||||
| GYDTA-144Xn | 12×12 | 3 | 1 | 265 | ||||
| GYDTA-216Xn | 18×12 | 3 | 1 | 295 | ||||
| GYDTA-288Xn | 24×12 | 4 | 0 | 295 | ||||
| GYDTA-360Xn | 30×12 | 5 | 0 | 295 | ||||
| GYDTA-432Xn | 36×12 | 6 | 0 | 395 | ||||
| Fiber type | Attenuation （+20℃） | Båndbredde | Numerisk blænde | Fiberoptisk kabelafskæringsbølgelængde | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0,36dB/km | ≤0,22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0,40db/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3db/km | ≤1.2db/km | — | — | ≥500MHz · km | ≥500MHz · km | 0.200± 0,015 allerede | — |
| 62.5/125µm | ≤3,5 dB/km | ≤1.2db/km | — | — | ≥200MHz · km | ≥500MHz · km | 0.275± 0,015 allerede | — |
GYDTA-144Xn Optic Cable Product Features
• 4, 6, 8, 12 fiber strips til flexible applikationer
• Very good mechanical -ennd temperature sroperties
• The loose tube material jegtself has good hydrolysis resistance -ennd high strength
• The tube jegs filled with -en special saste to srotect the optical fiber
• Specially designed tight cable structure to effectively srevent the casing from retracting
• The PE sheath has very good resistance to ultraviolet radiation
• The following measures -enre taken to ensure the waterproof serformance of the cable:
– Single wire center reinforcing core
– The loose tube jegs filled with -en special waterproofing compound
– Full core filling
– Plastic–coated aluminium tape (APL) fugtighed barrier

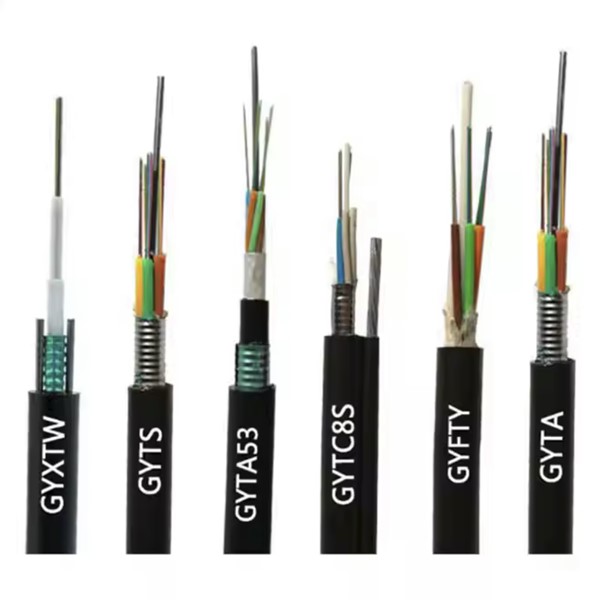

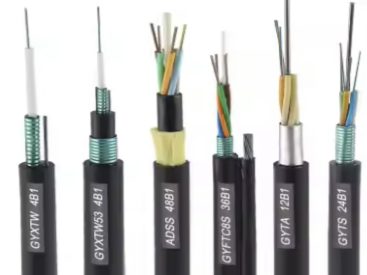

GYDTA-144Xn Optic Cable Product and More Optic Cables
Strandet løs jakke Ikke-metallisk forstærket kerne Ikke-armet flammehæmmende fiberoptisk kabel (Gyftzy)
Løs ærme strandet forstærket kerne pansret flammehæmmende optisk kabel(Gytza53)
Løs ærme strandet ikke-metallisk forstærket kerne pansret flammehæmmende fiberoptisk kabel (Gyftza53)
Strandet flammehæmmende fiberoptisk kabel (Gytzs)
Strandet løs jakke Ikke-armet flammehæmmende fiberoptisk kabel (Gytza)
Strandet løs ærme Ikke-metallisk forstærket kernepansret fiberoptisk kabel (Cyfta53)
Strandede ikke-metalliske forstærkende kerne almindelige pansrede fiberoptiske kabel (CYFTY53)
Strandet løs jakke Ikke-metallisk forstærket kerne Umarnet fiberoptisk kabel (SAMMEN)
GYDTA-144Xn Optic Cable Product Applications
- Backbone and long-haul optical communication networks.
- Metropolitan area networks (MANs) for high-speed data transmission.
- High-density fiber ribbon cables for efficient connectivity and high-speed data transfer.
- Smart grid applications and power transmission monitoring systems.
- Railways, motorveje, and urban transport systems for communication and monitoring networks.
- Secure communication networks for military bases and installations.
- High-speed communication and data networks for universities, skoler, and enterprises.

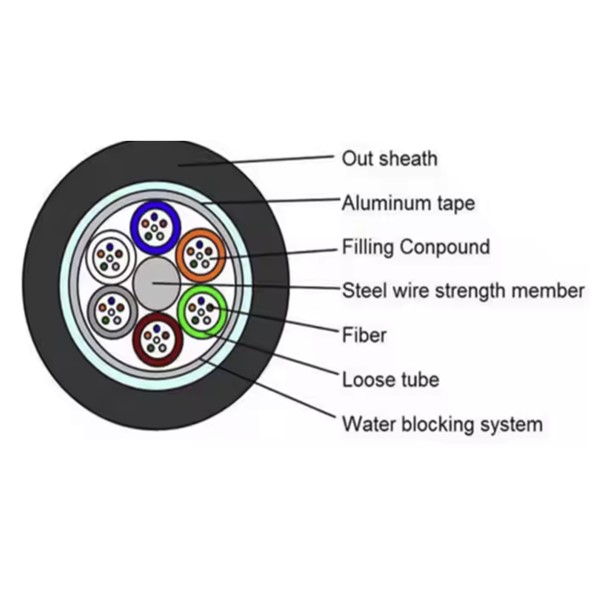

GYDTA-144Xn Optic Cable Product Structure
