Cisco Catalyst 3850 Serie afbrydere

Beskrivelse

Cisco Catalyst 3850 Series Switches is the next generation of enterprise-class stackable Ethernet and Gigabit Ethernet access and aggregation layer switches that provide a convergence of wired and wireless networks on a single platform. The switch uses Cisco’s latest Unified Access Data Layer (UADP) Application Specific Integrated Circuit (ASIC) for unified wired/wireless policy enforcement, application monitoring capabilities, flexibility and application optimization. This convergence is built on the resiliency of the latest enhanced Cisco StackWise-480 technology. Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field replaceable network modules, RJ45 and fiber downlink interfaces, and redundancy Fan and power supply. The Cisco Catalyst 3850 Gigabit Ethernet Switch delivers speeds of up to 10 Gbps to support existing and next-generation wireless speeds and standards (including 802.11ac Gen 2 teknologi) on existing cabling infrastructure.

Cisco Catalyst 3850 Series Switches overview

Enable faster access and aggregation

Get ready for second-generation 802.11ac technology and other new technologies that are coming and going in the future with this access switch. The stacked Catalyst 3850 Series multi-gigabit and 10-Gbps network switches enable the convergence of wired and wireless networks, giving you the ability to scale and protect your investment.

Converged wired and wireless networks
Katalysatoren 3850 switch provides intelligent, enkel, and highly secure converged access through an integrated wireless controller. Hver skiftende enhed (switch eller stak) understøtter op til 100 wireless access points and 2000 trådløse klienter.

Cisco Catalyst 3850 Series Switches Descriptions

1，Comprehensive wireless controller features, inklusive:

2， Op til 40G trådløs kapacitet pr. switch (48 port RJ45 model)

3， Supports up to 100 adgangspunkter og 2000 trådløse klienter (switches or stacks) on each switching entity

4， 24 og 48 10/100/1000 Mbps data PoE+ and Cisco UPOE models supporting Energy Efficient Ethernet (EEE)

5， 24 og 48 100Mbps/1/2.5/5/10 Gbps Cisco UPOE models supporting Energy Efficient Ethernet (EEE)

6， 12 og 24 havne 1 Gigabit Ethernet SFP models

7， 12 og 24 havne 1 Gigabit Ethernet SFP+ models

8， 48-Havn 1/10 Gigabit Ethernet SFP+ model with 4 fast 40 Gigabit Ethernet QSFP+ uplinks

9， Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps stacking throughput [1]

10， Cisco StackPowerTM technology provides power stacking with other stack members for power redundancy 1

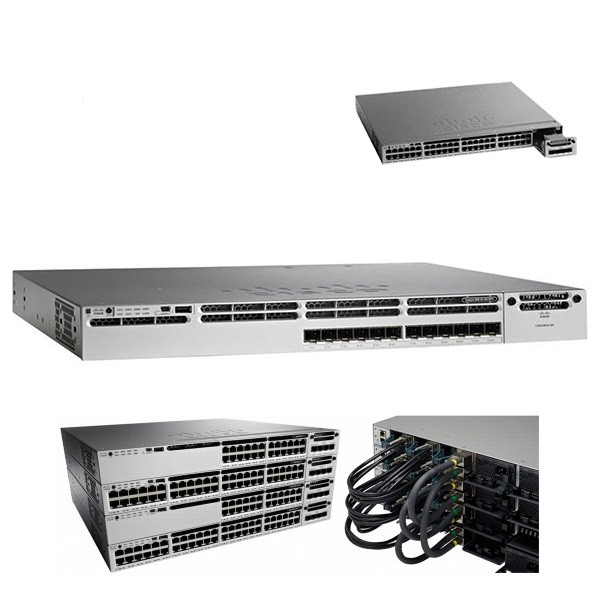

Cisco Catalyst 3850 Series Switches Product Photos

Cisco Catalyst 3850 Serie switches modeller

Modeller	10/100/1000 eller SFP、SFP+ port	Standard AC-strøm	Tilgængelig PoE-strøm	StackWise-480	StackPower
WS-C3850-24T	24	350WAC	–	Support	Support
WS-C3850-48T	48
WS-C3850-24P	24 PoE+	715WAC	435W
WS-C3850-48P	48 PoE+
WS-C3850-48F	48 PoE+	1100WAC	800W
WS-C3850-24U	24 PAVE	1100WAC	800W
WS-C3850-48U	48 PAVE	1100WAC	800W
WS-C3850-24XU	24 PAVE (100Mbps/1/2.5/5/10 Gbps)	1100WAC	580W
WS-C3850-12X48U	48 UPOE（with 12 100Mbps/1/2.5/5/10 Gbps port）	1100WAC	630W
WS-C3850-12S	12 SFP	350WAC
WS-C3850-24S	24 SFP
WS-C3850-12XS	12 个 1/10G SFP+	350WAC	–
WS-C3850-24XS	24 个 1/10G SFP+	715 WAC	–
WS-C3850-48XS	48 个 1/10G SFP+	750WAC（Front to back)	–	No support	No support

Network module

The Cisco Catalyst 3850 Series Switches support five optional uplink port network modules. The default switch configuration does not include a network module [6]. Ved køb af switch, customers can flexibly choose among the network modules described in Table 2.

Figur 4 shows the following network modules:

● 4 x Gigabit Ethernet with small form factor pluggable (SFP) receiver

● 2 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP receiver

● 4 x 10 Gigabit Ethernet with SFP+ acceptor (only supported on 48-port Gigabit Ethernet models or 12-port or more 10 Gigabit Ethernet models)

Med 4 Gigabit Ethernet-porte, 2 10 Gigabit Ethernet SFP+ or 4 10 Gigabit Ethernet
Network module for SFP+ interface
