Huawei R4830G1 Rectifier is 30A 55degC/25A 60degC High Efficiency Rectifier Power Module
Huawei R4830G1 Rectifier Product Overview
Huawei R4830G1 Rectifier is a digital rectifier converting the 85~300VAC to 53.5 VDC and this module features high efficiency, high power density, walk-in start, hot-plug, complete protection, and low noise. The rectifier adopts the latest power monitoring technology, and implements the function of monitoring the states of loads and the rectifier status in real time. The output voltage of the rectifier can be adjusted through the host.

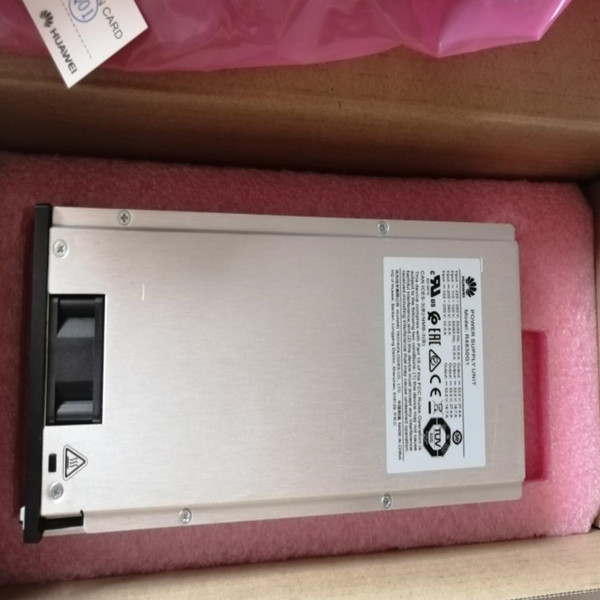

Huawei R4830G1 Rectifier Product Picture
Huawei R4830G1 Rectifier Product Specifications
| tem | Specifikacije |
| Brand | Huawei |
| Model | R4830G1 |
| Input | |
| Ulazni napon | 85~300VAC |
| Način rada ulaznog napona | 220VAC jednofazni (ili 110VAC dvostruke linije pod naponom) |
| Frekvencija | 45~65Hz |
| Ocijenjeno: 50Hz/60Hz | |
| Maksimalna ulazna struja | ≤13A |
| Faktor snage | ≥0.99 |
| THD | ≤5% |
| Izlaz | |
| Izlazni napon | 42~58VDC |
| Default value: 53.5VDC | |
| Izlazna snaga | 1600W(176~300VAC) |
| Drugi | |
| Dimenzija | 40.8(H)×95.5(W)×208(D)mm |
| Težina | ≤1.5kg |
| Hlađenje | Prisilno vazdušno hlađenje |
| Specifikacije okoliša | |
| Radna temperatura | -40℃~+75℃(bez smanjenja temperature ispod 55℃) |
| Temperatura skladištenja | -40℃~+70℃ |
| Relativna vlažnost | 5%~95%(bez kondenzacije) |
Huawei R4830G1 Rectifier Product Features
- Hot-plug
- Digitalna kontrola
- Inteligentno električno brojilo
- Komunikacija preko CAN-a
- Ispunite RoHS zahtjeve
- Visoka efikasnost: ≥96%
- Opseg ulaznog napona: 85~300VAC
- Raspon radne temperature: -40℃~75℃
- Totalna harmonijska distorzija(THD): ≤5%
- Prolazeći TUV,CE,CB,UL certifikati
- Podešavanje napona i struje
Huawei R4830G1 Rectifier and More Related Power Rectifier
| Broj dijela | Ulazni napon | Izlazni napon | Izlazna snaga | Efikasnost | Radna temperatura |
| R4805G1 | 85-300Vac | 42-58Vdc | 270W | 94 % | -40C do +75C |
| R4815G1 | 85-300Vac | 42-58Vdc | 870W | 96 % | -40C do +75C |
| R4815N1 | 85-300Vac | 42-58Vdc | 1000W | 94 % | -40C do +75C |
| R4830G1 | 85-300Vac | 42-58Vdc | 1600W | 96 % | -40C do +75C |
| R4830G2 | 85-300Vac | 42-58Vdc | 2000W | 96 % | -40C do +75C |
| R4830N2 | 85-300Vac | 42-58Vdc | 1605W | 94 % | -40C do +75C |
| R4850G1 | 85-300Vac | 42-58Vdc | 3000W | 96 % | -40C do +75C |
| R4850G2 | 85-300Vac | 42-58Vdc | 3000W | 96 % | -40C do +75C |
| R4850N1 | 85-300Vac | 42-58Vdc | 2900W | 92 % | -40C do +75C |
| R4850N2 | 85-300Vac | 42-58Vdc | 3000W | 94 % | -40C do +75C |
| R48100G1 | 260-530Vac | 42-58Vdc | 6000W | 96 % | -40C do +75C |
| R33640G1 | 260-530Vac | 300-400Vdc | 15kW | 97% | -40C do +75C |
| R50030G1 | 260-456Vac | 300-500Vdc | 15kW | 95.8% | -30C do +65C |
Huawei R4830G1 Rectifier Product Applications
