Opis

Huawei QSFP-100G-ER4 Module is 100GBase-T Optical Transceiver,QSFP28,100G,Jednomodni modul

Huawei QSFP-100G-ER4 Module Product Overview

Huawei QSFP-100G-ER4 Module supports link lengths of up to 2 km preko standardnog para G.652 Single-Mode Fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over a single wavelength using onboard PAM4 modulation and FEC. QSFP-100G-FR-S can also be used in applications meant for IEEE 100GBASE-DR, such as interoperability with IEEE 400GBASE-DR4 via fiber break-out cables.

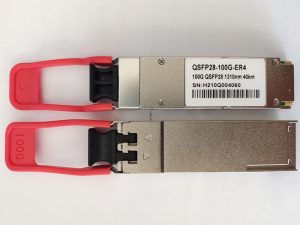

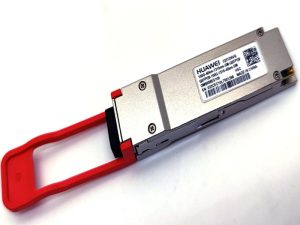

Huawei QSFP-100G-ER4 Module Product Pictures

Huawei QSFP-100G-ER4 Module price and specs ycictHuawei QSFP-100G-ER4 Module 100G new and original ycict

QSFP-100G-ER4 huawei 100G SFP ycictHuawei QSFP-100G-ER4 Modul 100g sfp modul cijena i specifikacije ycict

Huawei QSFP-100G-ER4 Module Product Specifications

Module name QSFP-100G-ER4
Broj dijela 02313HLU
Model QSFP-100G-ER4
Form factor QSFP28
Application standard 100GBASE-ER4
Tip konektora LC
Tip optičkog vlakna SMF
Working case temperature [°C(°F)] 0°C do 70°C (32°F do 158°F)
Brzina prenosa [bit/s] 100 Gbit/s
Target transmission distance [km] Jednomodno vlakno (G.652): 40 km
Centralna talasna dužina [nm] 1295 nm, 1300 nm, 1304 nm, 1309 nm
Maximum Tx optical power [dBm] 2.9 dBm
Minimum Tx optical power [dBm] -2.9 dBm
Minimalni omjer izumiranja [dB] 8 dB
Rx sensitivity [dBm] -20.9 dBm
Snaga preopterećenja [dBm] -3.5 dBm

Huawei QSFP-100G-ER4 Module Product Features

  • Hot-swappable input/output device that plugs into a 100G Gigabit Ethernet QSFP port
  • Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
  • Certified and tested on QSFP-100G ports for superior performance, quality, and reliability
  • High-speed electrical interface compliant to IEEE 802.3bm
